Multilayer PCB Benefits and Applications

Multilayer printed circuit boards (PCBs) are now key parts of today’s electronic gadgets. Their detailed build and strong abilities make them perfect for many fields, like home gadgets and even space tech. This piece looks into the upsides, downsides, uses, and reasons why multilayer PCBs are so common.

What Is a Multilayer PCB?

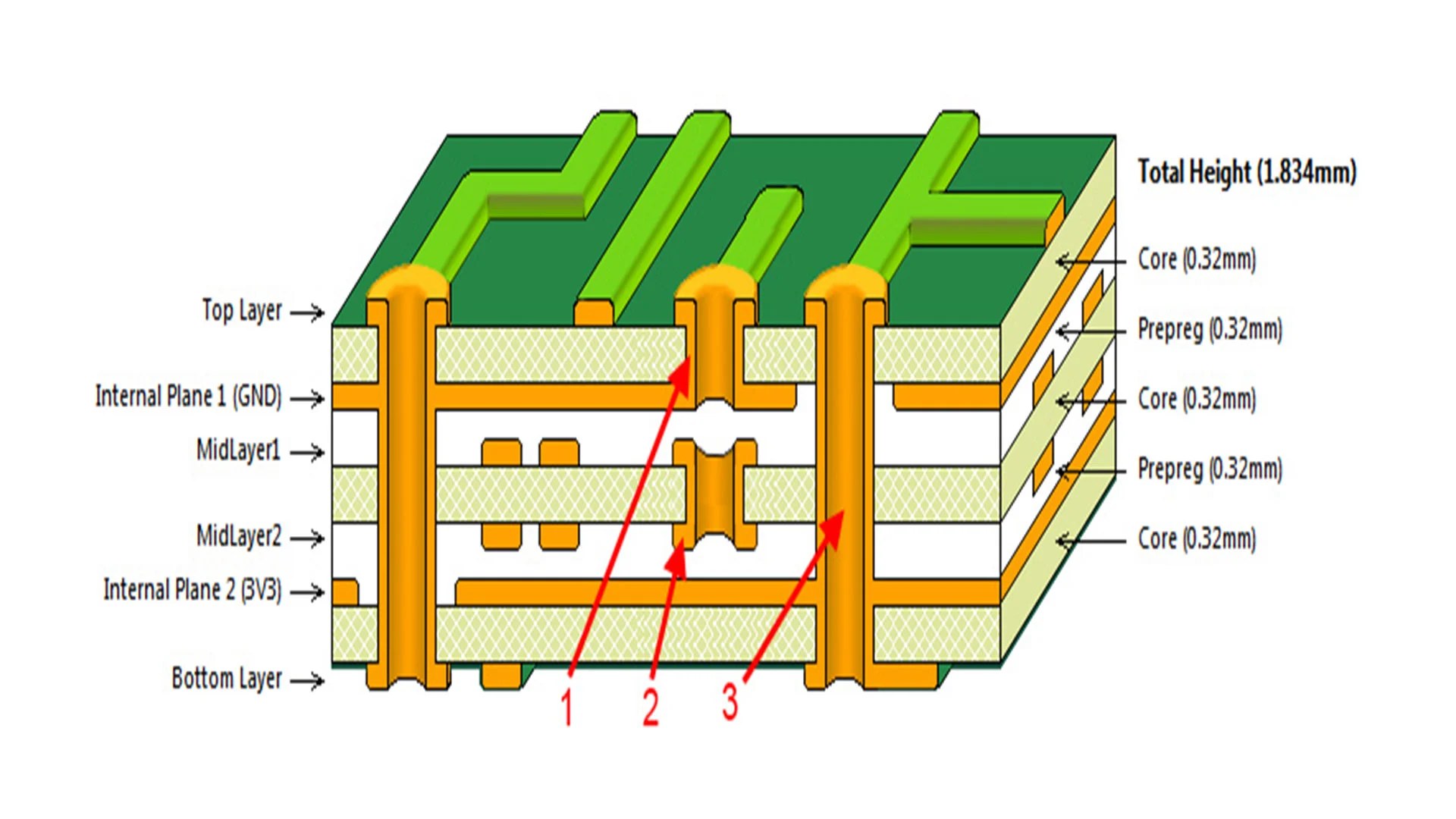

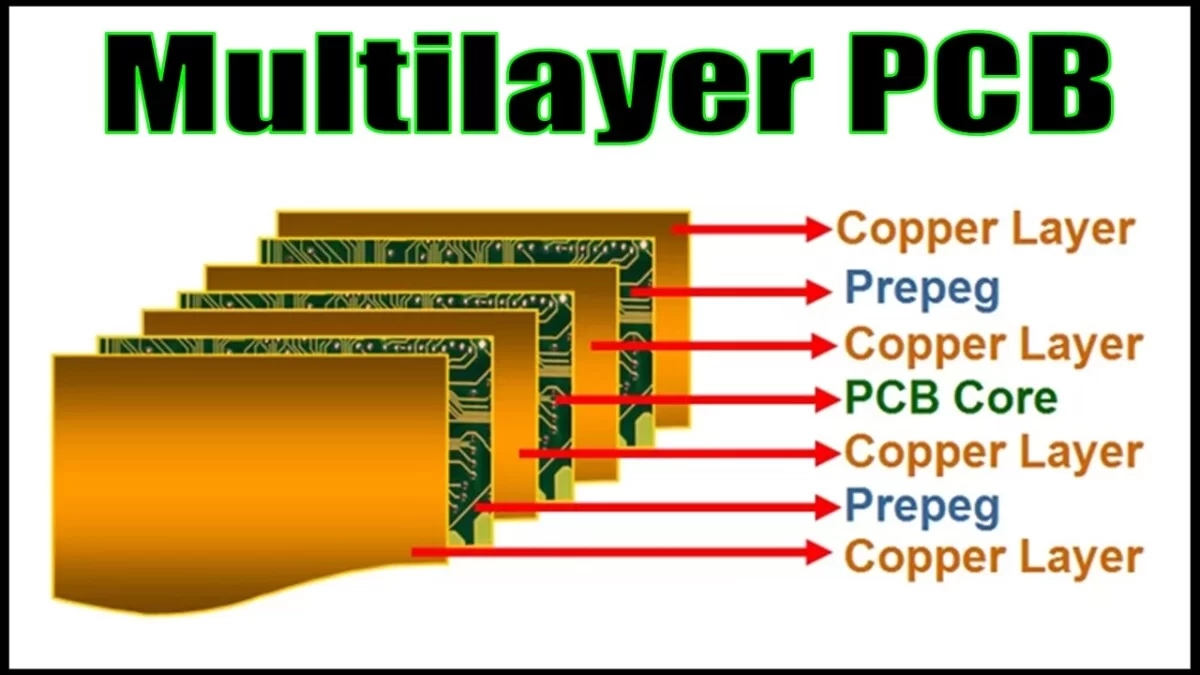

A multilayer PCB is a type of circuit board that has three or more layers of conductive copper foil. These look like many double-sided boards stuck together with heat-safe insulation in between. The whole setup has two layers on the outside to link with the surroundings. Connections between layers happen through vias, like plated holes or hidden vias. This way, we get very detailed PCBs in all sorts of sizes.

Multilayer PCB Benefits

Small Size

Multilayer PCBs are super tiny compared to other boards with the same tasks, thanks to their stacked setup. This smallness helps makers build advanced tools without making them bigger.

Lightweight Construction

Because they’re so small and need fewer connectors, multilayer PCBs weigh less than other boards doing the same job. This makes them great for things like phones or tablets where keeping weight down matters a lot.

High-Quality

Multilayer PCBs need careful planning and exact making, so they often turn out better than other kinds. The strict steps in building them make sure every piece is just as good as the next.

Increased Durability

Multilayer PCBs are tough by design. They’ve got several layers of insulation between circuits, and they’re held together with strong glue and heat under heavy pressure.

Enhanced Flexibility

Not every multilayer PCB can bend, but some are made with special tricks to be flexible. These bendy types work well in tight spots or places that need circuits to move a bit.

More Powerful

Multilayer PCBs pack a lot into a small space with many layers in one board. This tight setup lets them connect better. Plus, their built-in electric traits help them work faster and stronger, even though they’re small.

Single Connection Point

Multilayer PCBs are built to act as one piece, not paired with other parts. So, they just need one spot to connect, unlike other boards that need many spots.

Multilayer PCB Disadvantages

Higher Cost

Since multilayer PCBs are so tricky to make, they cost a lot more than single or double-layer boards at every step of the process.

Complicated Production

Making multilayer PCBs takes a bunch of time and hard work. They’re so detailed that even a tiny mistake can ruin a whole set, making them useless.

Limited Availability

Not every maker has the tools or know-how to build multilayer boards because they’re so complex. This means you might not find them as easily as simpler boards like single-layer ones.

Skilled Designer Required

Creating multilayer circuits isn’t like regular board design. It needs special skills to handle such detailed work and avoid mess-ups when building them later on.

Production Time

With all the extra steps from start to finish, making multilayer PCBs takes way longer than simpler options like single or double-sided boards.

Advantages of Multilayer PCBs over Single Layer Alternatives

Higher Assembly Density

Multilayer PCBs let you pack in more parts since they have extra inside layers. This gives more room to add features while keeping the board small.

Smaller Size

Unlike old single-layer boards that need more space for the same wiring, multilayer ones cut down on size with their stacked design.

Lighter Weight

By putting many tasks into one board instead of using a few linked ones, you save on weight. This is super important for handheld or mobile stuff these days.

Enhanced Design Functionality

Since you can send signals through different levels inside the board, you get more freedom to add cool features that wouldn’t work on basic setups.

Multilayer PCB Applications

Consumer Electronics

Things like phones, tablets, and wearables depend a lot on the small, strong multilayer PCBs. They help make using these gadgets smooth and easy in today’s digital world.

Computer Electronics

Laptops, desktops, and servers get a big boost from multilayer boards. These support faster signals and better memory, fitting more power into tight spaces.

Telecommunications

Tools like routers, switches, and modems rely on the toughness of multilayer boards. They keep connections steady for networks we use every day.

Industrial

Machines, control panels, and tools in factories use tough multilayer PCBs. These hold up in rough conditions while working at their best, even under stress.

Medical Devices

Equipment for scans, pacemakers, and health monitors need the small size and exactness of multilayer PCBs. They deliver top results in life-saving moments around the world.

Military and Defense

Systems for radar, communication, and navigation in the military use strong multilayer PCBs. These stand up to harsh heat, shakes, and shocks on the battlefield without fail.

Automotive

Car tech like driver-assist systems (ADAS), entertainment units, and engine controls use multilayer PCBs. They save space while boosting safety and fuel savings in today’s vehicles.

Aerospace

Planes, satellites, and drones use light, high-power multilayer PCBs. These cut down on weight and ensure perfect work for critical missions above the Earth.

And Many More!

Multilayer PCBs keep popping up in new areas like smart homes, IoT, robots, and green energy. They show amazing flexibility in today’s changing tech world.

Why Are Multilayer PCBs So Widely Used?

Multilayer PCBs are everywhere because they’re better than old single or double-layer boards. They work stronger, last longer, take up less room, weigh less, and do more. All these reasons make them a top pick in many fields across the globe.

FAQ

Q: What is the difference between single-layer and multilayer PCBs?
A: Single-layer PCBs have just one layer to carry signals, but multilayer ones have three or more copper layers stuck together. This gives more power and options in a smaller size.

Q: Are multilayer PCBs more durable?
A: Yes, they are. Multilayer PCBs last longer because of many insulation layers joined with heat and pressure.

Q: Can I use multilayer PCBs in wearable devices?
A: For sure. Their tiny size and light build make them awesome for small wearable tech.

Q: Do they cost more than traditional boards?
A: Yes, they do. Multilayer PCBs are trickier to make, so they cost way more than single or double-layer boards at every step.
