Polyimide PCB Material Information (FR4 vs. Polyimide PCB)

Picking the best material for your printed circuit board (PCB) is important. You need to know how FR4 and polyimide materials differ. Many businesses use FR4 for their PCBs. FR4 is cheap and works well for lots of projects. But FR4 isn’t the only choice. For tough conditions, polyimide PCBs are a great option. They handle heat better, bend easily, and resist chemicals strongly.

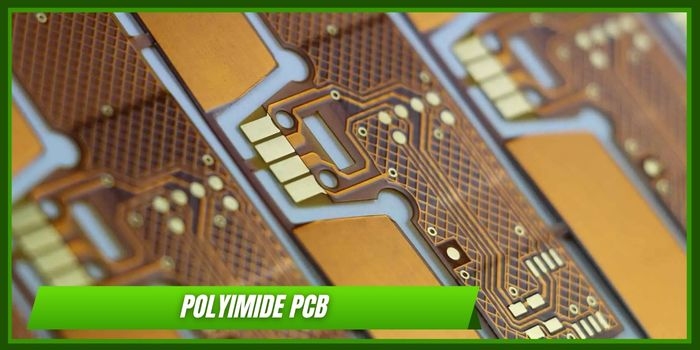

What Is Polyimide PCB Material?

Polyimides are special plastics made from imide building blocks. These plastics come in many types, both natural and man-made. Natural ones include silk and wool. However, the polyimides used for PCBs are made in factories.

Man-made polyimides come from mixing chemicals with imide parts. Here are some common types:

· Pure Polyimides: Also called 2nd generation polyimides, these are made without brominated flame retardants or extra additives.

· 3rd Generation Polyimides: These have additives to make them resist fire better.

· Filled Polyimides: These mix polyimide with a filler material.

· Low-Flow Polyimides: These use resins and flow limiters.
Over time, more polyimide types will likely become common.

Polyimide PCB Material Properties

If your project needs strength in tough situations or high heat, think about these features:

· Great Flexibility: Polyimide is super bendy. It’s often used for flexible and rigid-flex PCBs.

· Strong Tensile Strength: Even though it bends, polyimide is tough and doesn’t warp easily.

· Very Heat Resistant: Polyimides stay stable in many temperatures. They work well up to 260 degrees Celsius.

· Chemical Resistance: Polyimides don’t get damaged by chemicals.

· Really Tough: Besides resisting heat and chemicals, polyimide PCBs handle physical stress well.
Also, polyimides have the electrical traits needed for a solid PCB base.

What Are the Applications of Polyimide PCB Material?

Polyimide PCBs are used in many fields because they’re strong and adaptable:

· Computer Electronics: Computers need PCBs that bend a bit and stay strong with daily use.

· Automotive Electronics: Cars use lots of electronics, and flexible PCBs are common.

· Consumer Electronics: Gadgets like phones use flexible or rigid-flex PCBs to handle daily wear.

· Medical Industry Electronics: Many medical tools need flexible electronics.

· Military and Aerospace Electronics: These fields like polyimide PCBs for their dependability.
In short, polyimide is great for many uses because it bends, stays strong, lasts long, and handles heat well.

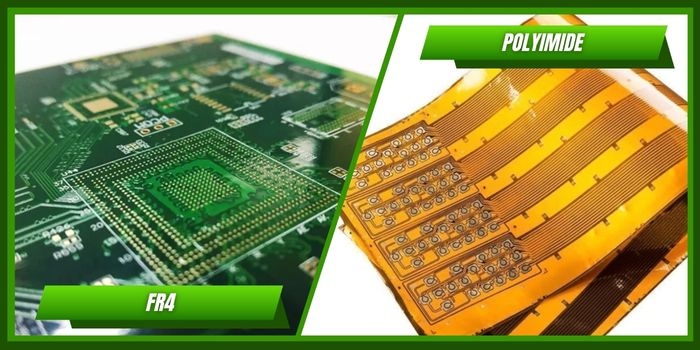

What Is FR4 PCB Material?

FR4 is a super common PCB material. The “FR” in FR4 means “flame resistant.” It comes from a grading system by the National Electrical Manufacturers Association (NEMA).

FR4 is usually made of fiberglass layers with epoxy resin glue. It comes in a few types:

· Standard: Standard FR4 has more bromine for flame resistance.

· High Glass Transition: This is the temperature where fiberglass starts to lose stability.

· Halogen-Free: These FR4 boards are made without bromine.
Since FR4 is a grade, not one exact material, its properties can differ by maker.

When Should It Be Used?

FR4 is popular because it’s affordable and works for many things. Use it when your project needs:

· Good Strength-to-Weight Ratio: FR4 is strong for its weight, great for sturdy PCBs.

· Versatility: FR4 works for many kinds of boards.

· Chemical Resistance: It holds up against some chemicals.

· Stable Shape: FR4 keeps its form well.

· Great Electrical Insulator: It’s good at blocking unwanted electrical flow.
But, standard FR4 doesn’t handle heat as well as polyimide.

What Are FR4’s Applications?

FR4 is used widely around the world. Its uses include:

· DC Board Applications: Most DC boards use FR4 because it’s cheap.

· Low-Frequency Applications: FR4 works well for these.

· Digital Applications: FR4 is common in digital devices.
These uses appear in many industries. But, FR4 isn’t great for high-frequency designs.

Why Choose Polyimide Over FR4?

You might want to pick FR4 because it’s cheap and easy to find. But choosing based only on price isn’t smart. Polyimide and FR4 have very different strengths.

Here are polyimide’s benefits to consider:

· Flexibility: The biggest reason to choose polyimide is its bendiness. Flexible and rigid-flex PCBs, made with polyimide, are great for projects needing movement or frequent use.

· Great Heat Resistance: If your PCB will face high heat, FR4 isn’t ideal. FR4 resists flames but struggles to spread heat. This causes hot spots that can harm the board or nearby parts. Polyimide, however, handles heat well. Its thermal conductivity is twice that of FR4, and it works at high temperatures.

· Chemical Resistance: Polyimides resist chemicals like fuels, oils, and greases, common in military, aerospace, and car projects. FR4 resists chemicals too, but polyimides are better at preventing corrosion over time.

· Toughness: FR4 is strong, but its stiffness can be a problem in shaky or hot settings. Heat and stress can weaken FR4 boards. Polyimide boards, with their flexibility and strength, handle these conditions better.

· Fixes Design Issues: If your PCB needs to fit in a tight or tricky space, a stiff FR4 board won’t work. A flexible polyimide PCB can fit where needed.

Yes, polyimide PCBs cost more. But their bendiness, strength, and other benefits make them worth it compared to FR4. They’re light, tough, and solve many design challenges, saving money in the long run.
