The 4 Best Ways to Desolder Your Electronic Components

Introduction

Soldering is a great way to join electrical components on a circuit board or other projects. It makes strong, reliable connections. But sometimes soldering goes wrong, or a different component is needed. That’s when desoldering happens.
Desoldering is the opposite of soldering. It melts solder to remove a component from a joint. This process clears connections between two materials.
For electronic components, desoldering removes parts that need fixing, replacing, or saving. Otherwise, components might get ruined and become unusable.
There are a few ways to desolder. Each uses different tools and steps. Like soldering, desoldering needs precision. Similar steps and safety rules apply.
Flux helps desoldering a lot. It makes solder flow where needed and aids heat transfer. Rosin or no-clean flux works well.
Before desoldering, keep the soldering tip clean and tinned. This helps heat move better.

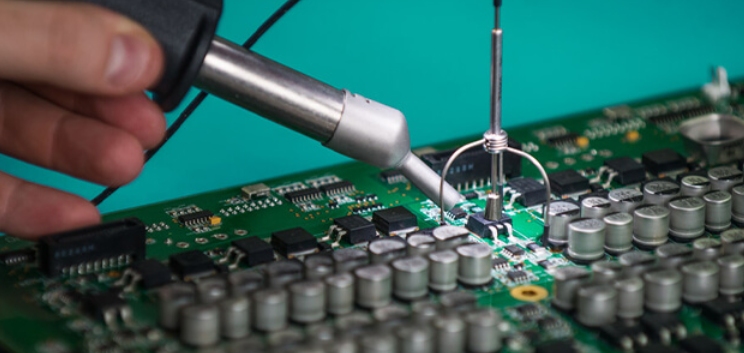

img.PCB Desoldering.jpg

Why Do You Need to Desolder?

There are several scenarios where desoldering becomes necessary. One common reason is to correct mistakes made during the initial soldering process. But, sometimes when you solder, it is done incorrectly or you need to install a different component. That is when desoldering takes place. Another reason could be upgrading or replacing faulty components in a circuit. In repair work, especially with expensive or rare parts, it's often more economical to salvage and reuse components.

For electronic components, it is the process of removing the components that need to be repaired, replaced, or saved. Proper desoldering ensures that both the PCB and the component remain intact and functional.

Differences Between Regular and Surface Mount Desoldering

Knowing the component type helps pick the best desoldering method. Through-hole components have leads that go through PCB holes and are soldered on the other side. Surface mount devices (SMDs) sit directly on the PCB surface.
A desoldering braid is great for cleaning extra solder from pads or removing solder from through-hole pins. But it’s not good for SMDs due to tight spaces between leads and pads.
For SMDs, tools like hot air stations or hot tweezers work better. They heat multiple joints at once without harming nearby parts.

Desoldering With A Soldering Iron

Desoldering with a soldering iron is the simplest way to remove components. It needs basic tools: a soldering iron and pliers or tweezers.
Steps:

1. Heat the joint until the solder melts.

2. Gently push pins with the iron’s tip to free them from pads.

3. Use pliers to pull out components. Grip tips, not bodies, to avoid damage.

4. For stubborn solder-filled holes, poke a safety pin into the hole while heating to clear trapped solder.
This method is good for simple fixes but not ideal for crowded boards or delicate SMDs.

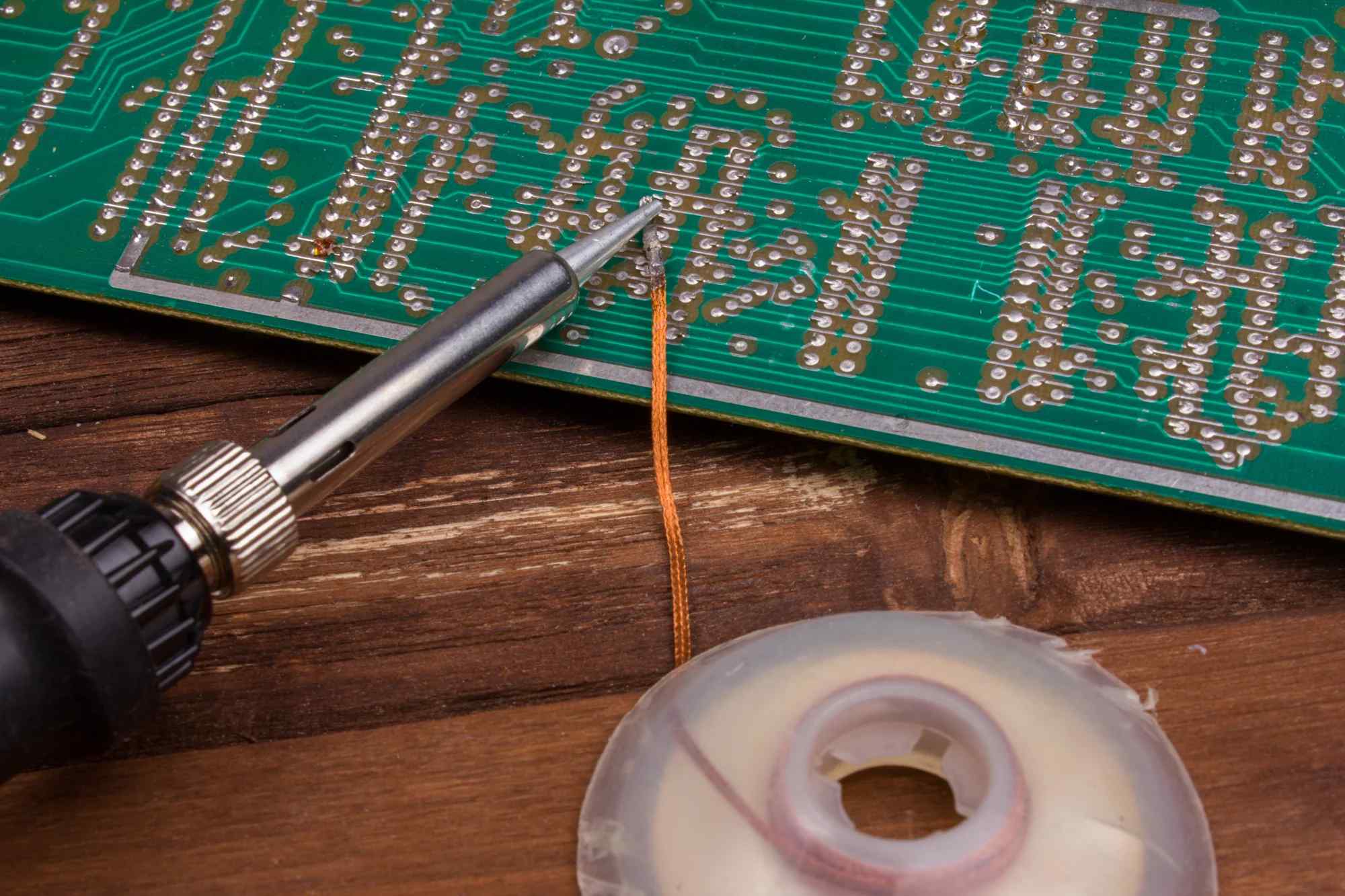

Desoldering With A Soldering Wick/Desoldering Braid & Iron

A soldering wick or desoldering braid is made of thin copper wires woven together, often with flux. It works with a soldering iron to soak up melted solder through capillary action.
Some wicks have flux, which makes solder removal easier. If the wick has no flux, dip it in flux before use.
Steps:

1. Place the braid over the joint to clean.

2. Press the heated iron onto the braid. This melts the solder.

3. The melted solder soaks into the copper braid.

4. Lift the iron and braid together after the solder is absorbed.

5. Cut off the used braid part. Repeat with a fresh section if needed.
Remove the iron and braid at the same time to avoid soldering the braid to the board. This could harm the board.
This method is great for cleaning extra solder but struggles with large amounts or tightly spaced SMDs.

Desoldering With A Soldapullt Pump and Iron

A Soldapullt pump, or vacuum pump, is a handy tool to suck melted solder from through-holes.
Steps:

1. Heat the target spot until the solder melts.

2. Place the pump’s nozzle over the melted area.

3. Release the spring-loaded handle to suck up the molten solder.

4. Repeat if needed until all extra solder is gone.
This method works well for clearing through-holes but not for flat surface-mount pads where suction can’t seal tightly.

Desoldering With a Power Desoldering Station

For pros handling big projects or frequent repairs, a power desoldering station offers top precision and speed.
A temperature-controlled desoldering station is another great way to desolder.
Types include:

· Thru-Hole Stations: Made for removing leaded parts from multilayer PCBs.

· Hot Tweezers: Perfect for lifting SMDs by heating both ends at once.

· Hot Air Stations: Blow 800–1000°F air to melt multiple joints at once. These are ideal for complex SMD rework without touching parts.
For jobs needing hundreds of components removed, a power desoldering station is best.
Always check the manufacturer’s manual before use. Wrong settings can harm delicate electronics.

img.How to Desolder Electronic Components.jpg

Overview of PCBAStore: Get an Instant Quote Now

For high-quality PCB manufacturing and assembly after desoldering or for new boards, PCBAStore offers complete solutions for pros and hobbyists.
As a top PCB manufacturing and assembly company in China, PCBAStore has provided full electronic manufacturing solutions for 16 years. Services cover design, prototyping, and mass production.
Their one-stop service includes:

· PCB prototype and fabrication

· Electronic components sourcing

· PCB assembly and box build assembly
With an easy online quote system, prices show instantly based on uploaded files or BOMs. PCBAStore simplifies project planning from start to finish. They offer Express PCB in 24 hours and a 100% refund for quality defects, ensuring trust at every step.
Whether fixing boards with these four desoldering methods or building new ones, PCBAStore is a reliable partner. They deliver quality work at fair prices for industries like automotive, medical devices, consumer electronics, communications tech, robotics, and more.

Get an Instant Quote Now

FAQ

Can desoldering damage a PCB or components?
Improper desoldering can harm a PCB or components by overheating traces, lifting pads, or breaking delicate parts. To avoid this, use proper tools like desoldering braid, pump, or station. Keep the soldering tip clean and tinned, apply flux for better heat transfer, and follow the article’s steps for careful handling.

What is the difference between a desoldering pump and a desoldering braid?
A desoldering pump, like a Soldapullt, uses suction to remove melted solder from through-hole joints. It’s great for clearing holes. A desoldering braid, made of copper wires, soaks up melted solder through capillary action. It’s better for cleaning extra solder from pads or pins. The article notes pumps struggle with surface-mount pads, while braids may not handle large solder amounts well.
