4-Layer Rigid-Flex PCBs A Guide for Manufacturing Techniques

Among the many kinds of PCBs—rigid, flexible, and mixed types—the rigid-flex PCB shines as a smart choice. It mixes the strong build of rigid boards with the easy bending of flexible circuits. The 4-layer rigid-flex PCB shows up as the most common setup in this group. It finds a good middle ground between useful features, solid work, and fair prices. This layout handles tricky links while saving room and boosting trust. Thus, it becomes vital for uses in medical tools, space gear, consumer gadgets, and car systems.

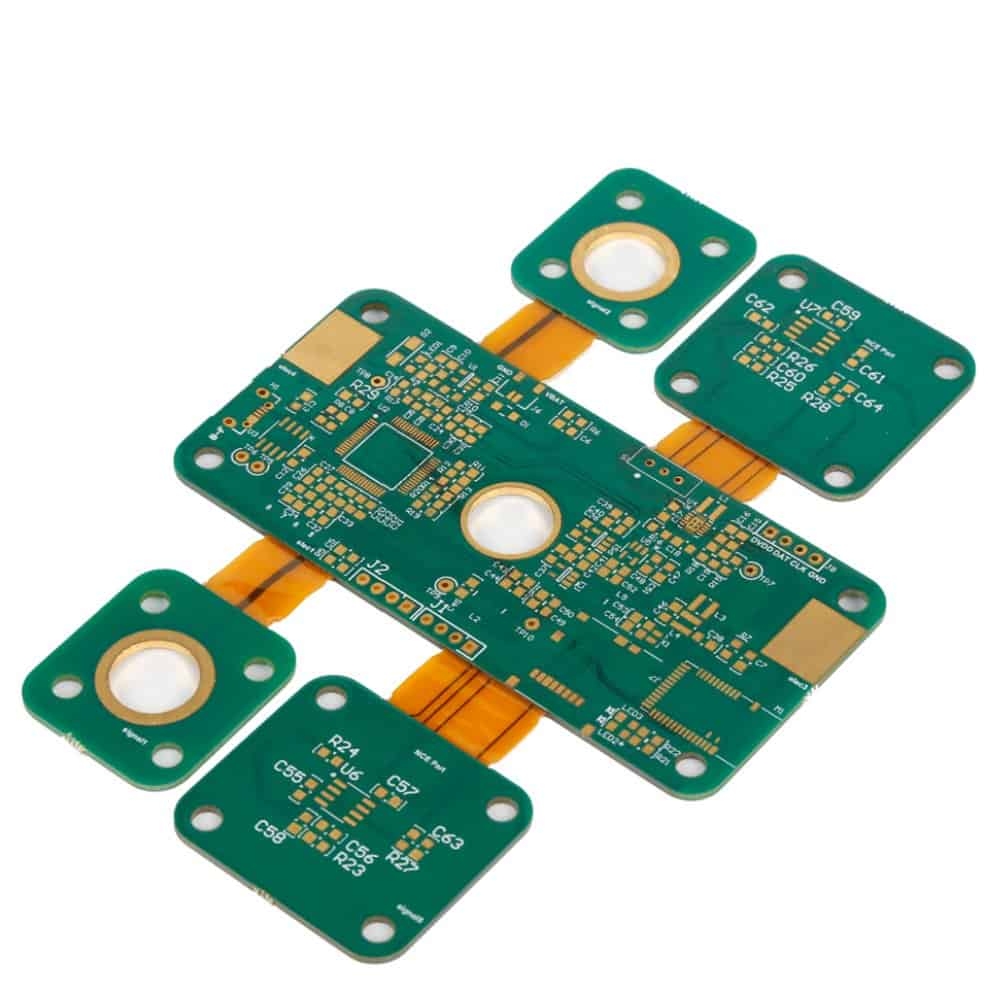

img.4-Layer Rigid-Flex PCBs assembly manufacturer in China

What are 4-Layer Rigid-Flex PCBs?

Rigid-flex PCBs join rigid and flexible bases into one solid piece. This lets them bend in motion and hold parts firmly. In a 4-layer rigid-flex PCB, four copper layers get set up. They include both rigid and flexible parts. Usually, the outer layers act as firm spots for attaching parts. And the inner layers give bendable links. These boards have plated through-holes (PTHs). They connect the layers with power. So, signals move without issues.

The build of a 4-layer rigid-flex PCB has rigid parts made on fiberglass-strengthened bases. Flexible polyimide circuits sit between them. These act like joints or wires. This mixed way cuts down join spots. It removes big plugs. And it betters shake resistance—key for tough spots. Next to fully rigid or flexible PCBs, 4-layer rigid-flex types give better heat control and electromagnetic compatibility (EMC). They handle more layers without too much thickness.

In real use, these PCBs allow new shapes. Think wearable items or screens that fold. Space limits need exact work there. The four-layer plan gives enough path thickness for mid-level circuits. It fits differential pairs and controlled impedance traces. As gadgets shrink, 4-layer rigid-flex PCBs bring cheap value. Their make costs run 20–30% less than taller-layer kinds. Yet they meet most design needs.

Materials Used in Manufacturing 4-Layer Rigid-Flex PCBs

The success of a 4-layer rigid-flex PCB depends on how its parts work together. Each gets picked for fit, lasting strength, and easy handling. Main pieces include rigid bases for steady hold, flexible bases for easy shape change, copper foils for power flow, and glues for stacking.

Rigid Substrates

Rigid substrates make the main "support" of the PCB. They give firm backing for parts. And they keep flat shape during build. The common pick is FR4, a fiberglass-boosted epoxy sheet. It stands out for great power block (dielectric constant of 4.0–4.5). Plus, it has strong build (tensile modulus up to 25 GPa). FR4's layer setup—woven glass fabric soaked in epoxy—creates a firm, fire-safe build. It meets UL94 V-0 rules.

FR4 works well in 4-layer rigid-flex plans. It holds solder heat up to 260 °C without splitting. Its low price (often $0.50–$1.00 per square inch) fits big runs. For special jobs, options like high-Tg FR4 (glass transition temperature > 170 °C) add heat steadiness in car or factory uses.

Flexible Substrates

Flexible substrates let the PCB bend in spots. They fit odd forms. And they cut weight by up to 70% next to wire groups. Polyimide (PI) leads here. It has top heat hold (−269 °C to +400 °C). It fights chemicals. And it bends well (bend radius as low as 0.5 mm). With a low dielectric constant (3.2–3.5), PI cuts signal drop in fast-speed jobs.

Polyester (PET) acts as a cheaper pick for simple needs. It gives good wet block but takes less heat (up to 150 °C). In 4-layer setups, flexible substrates run 25–50 μm thick. They get stacked between copper layers to make moving circuits. These parts face hard tests for bend life over 100,000 times—keeping them going in user items.

Copper Foils

Copper foils create the power paths. They get carved into lines that move signals over layers. Electrodeposited (ED) copper, with thickness of 17–35 μm (½ to 1 oz/ft²), is normal. It has even grain and strong stick (> 1.5 N/mm). In rigid-flex PCBs, rolled annealed (RA) copper fits bend parts better. Its soft nature cuts breaks in repeat bends.

Copper’s high power flow (58 MS/m) and rust fight make it key. But surface coats like oxide or black oxide boost links to insulators. For 4-layer boards, thicker copper (2 oz) in power areas holds more current. Thinner foils allow tight paths (trace widths down to 50 μm).

Adhesive Materials

Adhesives link rigid and flexible layers. They keep layer strength under heat and pull stress. Epoxy-based sheets, like acrylic-changed epoxies, give high cut strength (20–30 MPa) and low gas release—important in empty spaces. Pressure-sensitive adhesives (PSAs) give short bonds in stacking. Thermoplastic polyimides allow fixes.

Pick of materials sways peel strength (> 1.5 N/mm) and coefficient of thermal expansion (CTE) match. This stops bends. In 4-layer rigid-flex PCBs, adhesives take many stack cycles. They help keep board flat within ±0.1 mm.

These parts together set the PCB’s trust. Good matches cut fail rates by 40% in real use.

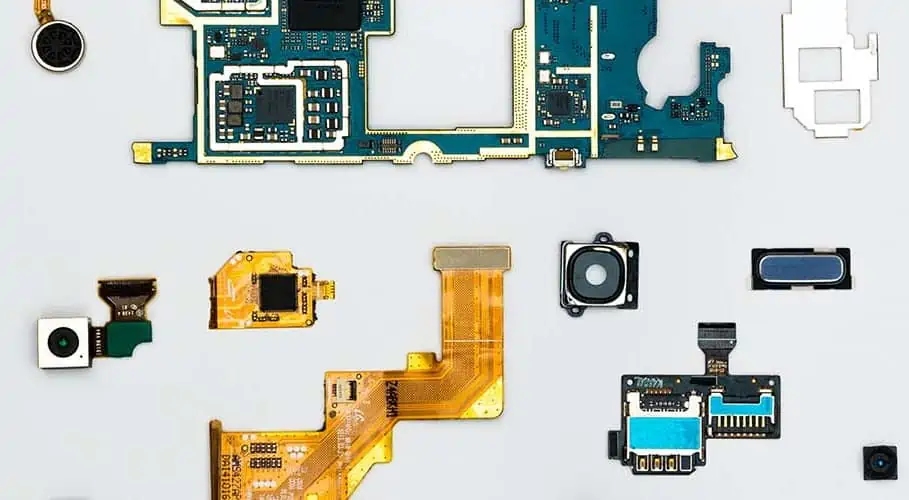

img.China 4-Layer Rigid-Flex PCBs assembly manufacturer factory online quote

Manufacturing Techniques of 4-Layer Rigid-Flex PCBs

Making 4-layer rigid-flex PCBs needs exact care in many steps—from idea to end coat. Each part uses top tools and checks to stop flaws like wrong line-up or layer split.

Design Phase in 4-Layer Rigid-Flex PCBs

The design step sets the base. It uses programs like Altium Designer or Cadence Allegro. They model layer piles and test work. Workers set layer orders—often two rigid outer layers around two flexible inner ones. They improve for bend spots and supports. Path planning uses match-length tools to keep signal good. Differential pairs run at 100-ohm impedance.

Design rules checker (DRC) looks at gaps (min 100 μm) and via spots. It adds flex-rigid shifts to skip stress builds. Finite element analysis (FEA) guesses build actions. It makes sure it fits IPC-2223 rules.

Material Preparation in 4-Layer Rigid-Flex PCBs

Prep starts with exact cuts of bases. CO₂ lasers handle flexible PI (tolerance ±0.05 mm). Mechanical routers do FR4. Surfaces get plasma clean to clear dirt—boosting stick by 25%. Copper foils stack by hot press at 180–200 °C. Then, line-up uses marks and eye cameras (accuracy ±10 μm).

Bonding uses vacuum stack presses. They apply 2–5 MPa force to join layers with glues. Next curing in air ovens (150 °C for 2 hours) hardens bonds. X-ray checks prove even spread.

Drilling and Plating in 4-Layer Rigid-Flex PCBs

Drilling makes vias for layer links. It uses step laser burn for blind vias (depth 100–200 μm) in bend areas. Mechanical drills (0.15 mm min) for rigid parts. Aspect ratios hit 10:1. Waste gets washed by high-force rinse.

Plating comes next with electroless copper lay (2–5 μm seed layer). Then electroplating to 25 μm thick. Panel electroplating keeps even cover. Pulse-reverse ways cut empty spots. For 4-layer boards, this links all layers and betters heat spread.

Circuit Patterning in 4-Layer Rigid-Flex PCBs

Photolithography puts dry-film resist. It gets UV light through masks to set patterns (resolution 50 μm). Development shows lines. Then alkaline etch takes extra copper, leaving 75% etch factor for clean edges.

Laser direct imaging (LDI) sharpens small-pitch parts. It cuts undercuts. After-etch clean and desmear keep surfaces pure. Automated optical inspection (AOI) finds flaws at 99.9% good rate.

Surface Finish in 4-Layer Rigid-Flex PCBs

End coats guard open copper. ENIG (electroless nickel immersion gold, 0.05–0.1 μm Au) leads for flat and solder ease in lead-free work. Other picks include HASL for low-cost runs or OSP for green rules. Selective plating hits pads and saves bend areas.

These ways end in tested boards set for join. Yields top 98% in approved shops.

FAQ

What is a 4-layer rigid-flex PCB?
A 4-layer rigid-flex PCB mixes rigid and flexible bases in a four-copper-layer pile. It lets parts mount on steady spots and allows bends in link areas for tight designs.

What materials are commonly used in 4-layer rigid-flex PCBs?
Rigid parts often use FR4 epoxy sheets. Flexible spots take polyimide or polyester. Copper foils (17–35 μm) make lines. Epoxy or acrylic glues keep stack whole.

What are the key manufacturing steps for 4-layer rigid-flex PCBs?
Steps cover design with special programs, material cut and stack, laser/mechanical drill, copper plate, photo pattern, and surface coats like ENIG.

Why choose 4-layer over higher-layer rigid-flex PCBs?
The 4-layer setup gives a cheap fix for most jobs. It brings enough path thickness and bend without extra work and cost of more layers.

What industries benefit from 4-layer rigid-flex PCBs?
These PCBs stand out in medical tools, space, car, and consumer gadgets—where shake fight, small size, and trust matter most.
