How to Get a Fast Turn PCB Prototype Done Successfully

In the quickly changing world of electronics manufacturing, the focus on quick prototyping has turned into a key part of new ideas and faster production steps. Fast turn PCB prototypes help engineers and designers check ideas in a good way, spot possible problems soon, and improve designs with little wait. These prototypes are very important for cutting time-to-market while keeping high levels of performance and dependability. This article looks into the details of getting successful fast turn PCB prototypes, using proven good methods and main points to lead electronics experts to the best results.

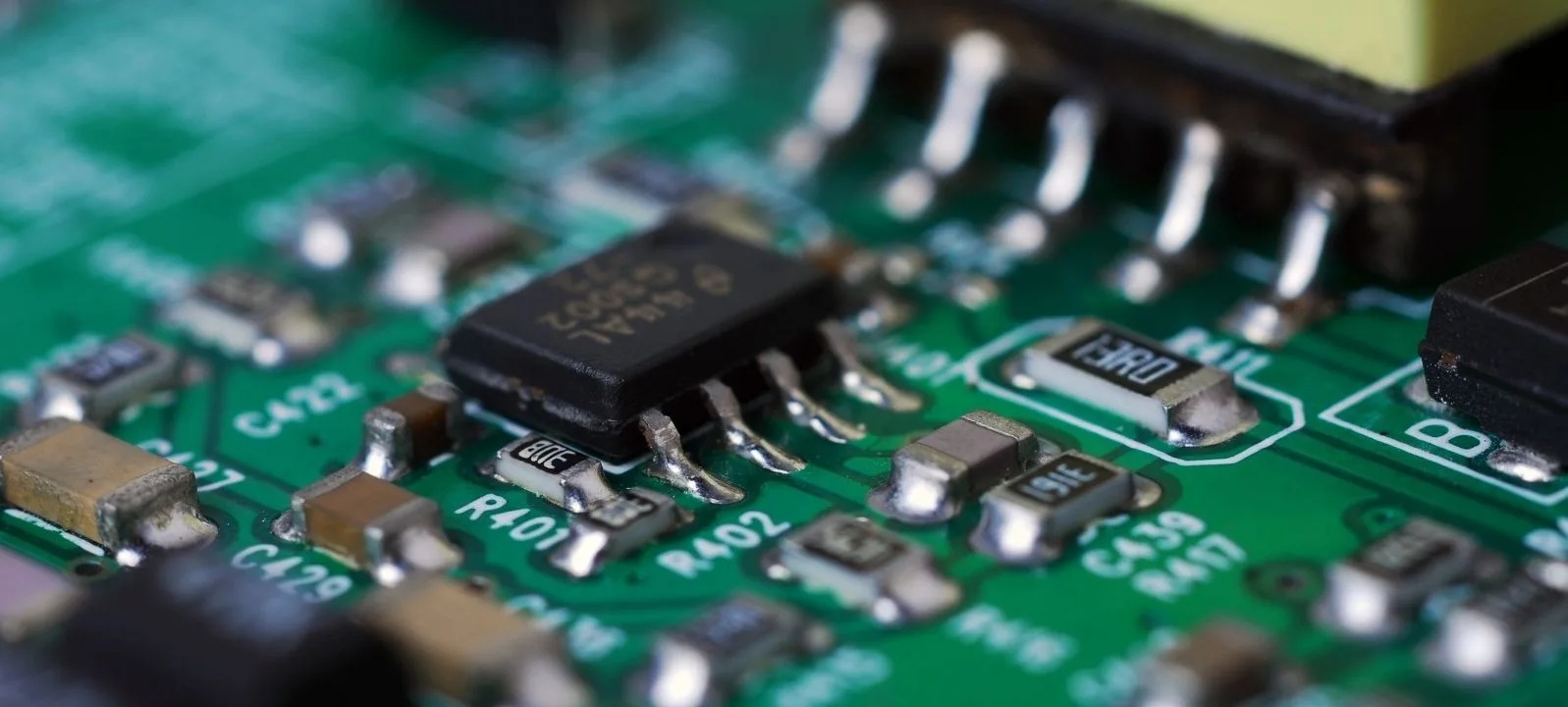

img.Fast Turn PCB Prototype PCBA manufacturer

What are Fast Turn PCB Prototypes?

Fast turn PCB prototypes mean printed circuit boards made and put together in a short time frame, usually from 24 hours to a few days, based on how hard and how many. These prototypes act as early versions of circuit plans, letting people do full tests and fixes before big production. The steps cover everything from first design check to last assembly, making sure the boards match the planned functions in a short making window.

The main benefit comes from adding quick feedback cycles, where small changes can happen without messing up project schedules. For example, manufacturers with modern automation, like automated optical inspection (AOI) systems and fast placement machines, can give prototypes that reach IPC Class 2 or better standards while staying cheap.

The Significance of Fast Turn PCB Prototypes in Electronics

Speed

In areas like consumer electronics and telecommunications, where market chances are small, the skill to prototype fast leads straight to better competition spots. Companies using fast turn services can speed up product releases, often cutting weeks from development plans. This quickness is especially key in repeated settings, such as IoT device making, where many design types need checks one after another.

Validation

Prototyping allows full checks of circuit strength, including electrical work, heat control, and signal clarity. By copying real conditions early, possible faults—like impedance mismatches or soldering defects—can get fixed ahead of time. This step not only makes designs stronger but also lowers risks from later manufacturing growth.

Cost Savings

Finding errors early through prototypes stops expensive fixes in mass making. For instance, solving a trace routing problem at the prototype level costs much less than fixing it after making. Also, improved prototypes make material use and assembly steps better, adding to total project savings.

The Evolving Demand for Rapid PCB Prototyping Solutions

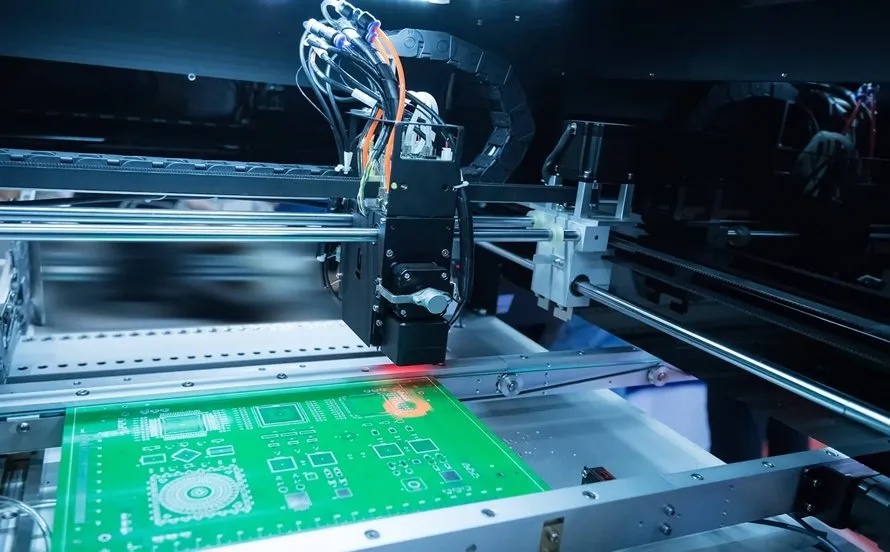

img.Rapid PCB Prototyping fast turn PCB assembly factory manufacturer

Innovation

The constant speed of tech progress, from 5G joining to AI-driven hardware, requires flexible prototyping to stay even. Engineers need tools that help try new parts, such as high-frequency materials like Rogers substrates, without long wait times.

Customization

As devices get more advanced—with needs for smaller size and many functions—the want for custom prototypes grows. Rapid services handle special specs, such as HDI structures or rigid-flex setups, allowing unique answers for special uses in medical or automotive areas.

Competitive Edge

Groups that learn quick-turn prototyping get a clear market lead. Faster repeats allow better product polishing, quick customer replies, and changes to supply chain changes, placing companies as top in changing industries.

Key Factors of Fast Turn Prototype PCB Board

Design for Manufacturability (DFM)

DFM rules make sure designs fit well with high-speed making. This means following guides like minimum trace widths (e.g., 3mil outer layer) and enough spaces to stop making mistakes. Full DFM checks, often done with software like Altium Designer, cut revisions and speed up flow.

Selection of PCB Materials for Fast Turn Prototype PCB Board

Material pick greatly affects prototype usefulness. FR-4 stays common for its low cost and heat steadiness, but high-Tg types or special layers like PTFE get chosen for tough uses. Points include dielectric constant, thickness limits (±10%), and fit with surface finishes such as ENIG or HASL, all while balancing work against quick processing limits.

Choosing the Right Fast-Turn PCB Prototype Manufacturer

Picking a manufacturer is very important for smooth work. Standards include proven quick abilities—such as 24-hour express making—and strong quality steps, including X-ray checks for BGAs. Known suppliers in Shenzhen, with reach to world supply chains, give combined services from prototyping to assembly, making sure tracking and following rules like ISO9001.

Best Practices for Quick PCB Prototype Design

Streamlining the Design Process

A smooth flow starts with exact specs listing function needs and limits. Focusing on main features while splitting non-key parts lowers hardness. Automation tools, including simulation programs for signal clarity checks, allow fast repeats, often finishing layouts in hours instead of days.

Effective Communication with the Manufacturer

Clear, written talks are needed. Giving full file sets—Gerber, BOM, and assembly drawings—helps quick reviews. Early talks on wait times and possible blocks, such as part supply, match hopes and stop delays. Continued talks bring manufacturer tips, improving designs for making ease.

Using Advanced Design Tools

Current electronic design automation (EDA) platforms, such as Cadence Allegro or Mentor Graphics, include features like auto-routing and 3D modeling. These tools spot DRC breaks right away and support team cloud workflows, speeding the move from schematic to prototype.

Common Challenges in Fast PCB Prototyping

Design Complexity

Hard layouts, with high-density links (HDI) or multilayer stacks up to 40 layers, raise error chances. Fixing involves step-by-step simple steps, using laser-drilled vias (down to 4mil) and detailed notes to handle these hardness without losing speed.

Lead Time Issues

Sudden delays from part lacks or machine stops can break plans. Active plans, including extra stock of passives and varied supplier groups, keep progress. Trusted partners with ERP systems make sure 99% on-time delivery rates.

Quality Control Concerns

Faster timelines risk missing in checks. Adding multi-level tests—SPI for solder paste, AOI for defects, and function testing—keeps strength. After-assembly checks, including heat profiling, confirm prototypes meet work marks before moving on.

Ensuring Successful Fast Turn PCB Prototype Development

Collaborative Design Approach

Team work among design, engineering, and manufacturing groups builds match. Shared platforms for file swaps and online reviews cut differences, giving prototypes that exactly meet goals.

Prototyping Iteration Strategy

A repeat plan includes step builds, hard tests, and data-based improvements. Each round sharpens work, with numbers like yield rates leading changes. This careful progress cuts errors in big making.

Testing and Quality Assurance

Full rules cover in-circuit testing (ICT), boundary scans, and environment stress checks. Following IPC-A-610 standards promises dependability, letting prototypes act as trusted plans for growing.

FAQ

What is the typical turnaround time for a fast turn PCB prototype?
Turnaround times change by hardness but usually go from 24 hours for simple 2-layer boards to 3–5 days for multilayer prototypes, with express choices for urgent needs.

How does PCBA Store ensure quality in fast turn prototypes?
PCBA Store uses IPC-A-610 standards, automated checks like AOI and X-ray, and function testing, reaching over 99.5% pass rates.

Can PCBA Store handle custom materials for prototypes?
Yes, choices include FR-4, high-frequency layers like Rogers, aluminum bases, and polyimide for flex boards, fitted to certain work needs.

What file formats are required for quoting a PCB prototype?
Standard formats include Gerber files for making, Excel or CSV for BOM, and PDF for assembly drawings; uploads via the online system make instant quotes.

Is there a minimum order quantity for prototypes at PCBA Store?
No minimum order quantity applies, supporting even single-unit prototypes for engineering checks.
