Desoldering Pumps: Everything You Need to Know for PCB Maintenance

Building a solid printed circuit board (PCB) calls for care, proper supplies, and solid methods. The key part in this job is likely soldering. It is a metal mix that links parts and wires to make a working path. Solder has a low melt point and good flow of power. Because of that, it holds each part steady. It also ties them into the power setup. But even in top Electronic Manufacturing Services (EMS), slip-ups happen. That is when the desoldering pump turns into a must-have item. At PCBA Store, we stand as a main all-in-one builder and plant. We focus on exact work in each setup. This way, we handle even tough fixes with factory-level skill.

What is a Desoldering Pump?

What is a desoldering pump? It is a hand-held or partly auto tool made just to pull solder from tie spots on a board path. In the field, folks call it a "solder sucker." This tool is key for fixing mistakes or swapping bad parts. It does so without harming the thin copper lines on the PCB.

Most times, it looks like a basic soldering tool or a fat pen. The desoldering pump is easy to hold in the hand. It has a pull to start the suck at one side. There is also a tip end that uses a spring push or a rubber squeeze. If you do easy fixes or hard reworks, knowing the desoldering pump function is your first move for good PCB care.

What Does a Desoldering Pump Do?

In electronics work, what does a desoldering pump do? Its main job is to give a clear, suck-based way to take out melted solder. When a part sits wrong or a solder joint is "cold" (not tied well), we turn to the desoldering pump. It pulls up the extra stuff.

The pen-like shape lets a board worker pick one tie spot just right. This care keeps the nearby board face and close parts safe. Solder melts at a low heat level. That is lower than the FR4 base or the parts. So, you can take it off safely. This saves the board from the trash.

How Does a Desoldering Pump Work?

To get good at rework, you need to know how a desoldering pump works. The setup runs on a suck idea.

The Plunger Mechanism

Top work pumps use a spring-push setup. You push the push down. It locks and squeezes the spring. After you melt the solder with a soldering iron, press the let-go key. The spring pulls the push back fast. This makes a quick empty space. It sucks the hot solder through the tip and into the pump's hold.

The Bulb Mechanism

Basic kinds use a heat-safe rubber squeeze. The worker presses the squeeze to push out air. Then, put the end on the hot solder. Let go of the squeeze to make a pull. These are not as strong as push kinds. But they fit into hot desoldering tools for steady work.

The Benefits and Disadvantages of Using a Desoldering Pump

Putting a desoldering pump to use brings a few upsides for fixing PCB issues and mending:

· Precision: It lets you take out single parts. The rest of the path stays fine.

· Cost-Efficiency: You skip throwing out a pricey board over one bad chip. Just swap the part. This cuts build waste.

· Versatility: Its small carry size works in any spot or place on a board.

· Component Recovery: If you pull a part right, it stays whole. You can use it again in later builds.

Still, there is a small downside. The squeeze-end types may not fit tight boards well. For those, you need a thin-push or a special desoldering gun. They reach tiny spots.

How to Use a Desoldering Pump: A Step-by-Step Guide

Getting the hang of how to use a desoldering pump is a basic skill for any worker. Stick to these clear steps for a good pull:

Step 1: Secure the PCB

Put the board in a set PCB holder. Keep it tight to stop shakes in the pull part. But do not grip too hard. That could break the base.

Step 2: Prepare the Tool

For a push type, set the pump by pressing the push down till it snaps. If you learn how to use a desoldering gun (a power kind), make sure it hits the work heat.

Step 3: Melt the Solder

Put a hot soldering iron on the solder joint to clear. Wait till the solder turns full melt and "bright."

Step 4: Activate Suction

Set the pump's tip right over the hot solder. Get as close as you can without heating the tip. Hit the let-go key. The empty space pulls the solder into the tube right away.

Step 5: Clean and Repeat

Once the solder comes out, the part lifts free. Always clear the pump's inside hold. Do the setup a few times to push out the cool solder bits.

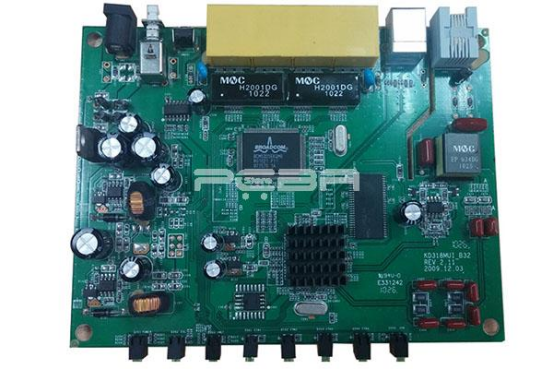

Essential Desoldering Tips for Success

For top outcomes, hold these desoldering tips in your mind:

· Use Flux: Put a bit of flux on an old tie. It helps the solder move better. That makes it simple to pull up.

· Don’t Overheat: Long heat can pull copper spots off the PCB. Move fast and smart.

· Add Solder to Remove Solder: At times, add some new solder to an old tie. It boosts heat pass. Then the pump works better.

· Keep the Tip Clean: A blocked tip cuts suck force. Clear the "solder bits" from the pump often.

Call to Action: Your Trusted Partner in High-Quality PCBA Manufacturing

At PCBA Store, we see that care builds every good electronic item. As a skilled all-in-one builder and giver, we run our own fresh plant. We cut out go-betweens. This gives you straight, solid PCB make and setup help.

We bring over 16 years of make skill and a team of builders to your work. From free DFM checks to strict IPC Class 3 rules, we make sure your boards hold up. We do more than sell. We partner with you in Shenzhen, the core of world electronics industry.

FAQ: Common Questions About Desoldering

Can I use a desoldering pump on SMD components?

It works best for hole-through parts. But a pump can handle big SMD spots. For tight SMD jobs, though, pull braid (wick) is better most times.

Is a desoldering gun better than a manual pump?

In big fix runs or plant reworks, a desoldering gun wins. It mixes heat and suck in one tool. This lets one hand work and steady ends.

How do I maintain my solder sucker?

Take the pump apart now and then. Wipe the push with a soft rag. Add a touch of silicone oil to the ring. This keeps a full suck seal.
