In the demanding field of healthcare, the dependability of a medical device PCB can truly determine outcomes between success and failure. Devices such as imaging tools for diagnosis or portable monitors for hearts rely on their electronic core to operate without issues in tough situations. Yet, moving from an initial idea to a complete item involves many rules and detailed challenges. Picking the proper collaborator for medical PCBA stands as the key choice for any OEM. At PCBA Store, we recognize that medical electronics need far more than basic production. They call for dedication to accuracy, clear tracking, and top-notch quality. As a focused lead-free and dependable PCB assembly manufacturer, we prioritize these elements.

Step 1: Verify Essential Certifications and Compliance

The initial check when choosing a maker for PCB in medical applications focuses on their set of approvals. In contrast to everyday gadgets, medical tools follow strict global guidelines.

ISO 13485: The Gold Standard

Any plant dealing with printed circuit board assembly for the medical area must follow ISO 13485. This approval confirms that the maker has a full system for managing quality, designed just for the medical device field. We stick closely to these rules. As a result, every board achieves the safety levels needed for clinical use.

ITAR Registered PCB Assembly and Security

For delicate medical tasks that might overlap with strong security needs or certain local rules, ITAR PCB manufacturing skills show a supplier's experience level. Being an ITAR registered PCB assembly partner indicates we possess the right local oversight and protection measures. These help safeguard your ideas and satisfy tough government expectations.

IPC Standards for High Reliability

A trustworthy PCB board assembly ought to reach IPC-A-610 Class 2 or Class 3 levels. In systems that support life, Class 3 becomes essential. It demands the top degree of checks and strong solder connections.

Step 2: Evaluate Specialized Medical Manufacturing Capabilities

The actual intricacy of a medical PCB frequently goes beyond typical industrial panels. Thus, you should confirm that your teammate can manage the exact needs of your tool.

Miniaturization and HDI Technology

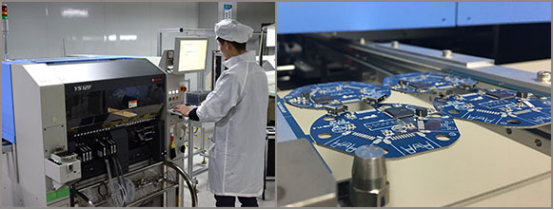

Today's medical tools are shrinking and getting easier to carry. This demands skills in High-Density Interconnect (HDI), precise placement of fine-pitch BGA, and handling of 01005 parts. Our printed circuit assembly lines feature advanced SMT equipment. These tools manage such tiny details with great care.

Material Expertise and Durability

Medical PCBA usually needs unique bases like polyimide for bendable circuits in scopes or ceramic foundations for areas with high heat during cleaning. We supply various choices for obtaining materials. This ensures your circuit card assembly endures the tough demands of medical settings.

Step 3: Rigorous Testing and Quality Assurance Protocols

A maker's worth shows in their testing team. For PCB assembly, anything less than perfect fails in the medical world.

Automated Optical Inspection (AOI) and X-Ray

Each printed circuit board assembly we create goes through several rounds of AOI. This spots any errors in placement. For panels with BGAs or concealed solder points, 2D/3D X-ray checks become vital. They confirm the strength of inner links.

Functional Circuit Testing (FCT) and Burn-in

More than basic checks for continuity, a medical device PCB requires tests under real stress. We offer tailored functional testing and burn-in options. These mimic actual conditions. In turn, they make sure the medical PCBA holds up without issues in its early 100 hours inside a hospital.

Step 4: Traceability and Supply Chain Transparency

If a problem arises in the field, tracking becomes a must under medical laws. You require a teammate who records details on every bit of solder and each part.

Component Level Traceability

We use a strong ERP setup that follows every part to its first maker. This avoids fake items slipping into your PCB in medical devices. Such risks loom large in the current unstable supply networks.

Detailed Documentation Packages

A skilled PCB assembly factory must deliver a full Device History Record (DHR). We make certain that all check reports, material proofs, and test outcomes are stored. They remain ready for your rule-based reviews.

Step 5: Assessing Scalability and Prototyping Speed

The shift from NPI (New Product Introduction) to large-scale output needs an adaptable ally.

Rapid Prototyping for Clinical Trials

Before producing many units of a printed circuit assembly, prototypes are used for trials in clinics. We provide fast-turn services. These let you refine your PCB board assembly plan quickly. At the same time, they keep the standards high for the main run.

Volume Manufacturing Stability

After your tool gains approval for sale, we supply the ability to grow from small groups to large-scale circuit card assembly. Quality stays steady over thousands of pieces.

Frequently Asked Questions

Why is ISO 13485 important for medical PCB assembly?

ISO 13485 targets the medical device sector. It stresses risk handling, design oversight, and tracking. This setup guarantees that the medical PCBA manufacturer uses steps that put patient well-being first.

Can you handle lead-free requirements for medical devices?

Yes. Although some medical allowances apply, most current medical device PCB efforts need RoHS approval. We run special lead-free SMT lines. They stop any mixing of materials.

What is the difference between IPC Class 2 and Class 3 for medical PCBs?

IPC Class 2 suits electronics for steady service. IPC Class 3 fits high-trust electronics where stops in use cannot happen, like in life-support setups. We deliver Class 3 assembly for vital PCB in medical applications.

How do you prevent counterfeit components in the medical supply chain?

We source solely from approved sellers (such as Digi-Key, Mouser, and Arrow). Plus, we conduct thorough checks on arrivals. As an ITAR registered PCB assembly provider, our buying steps face regular audits for peak safety.

Call to Action: Partner with a Proven Medical PCBA Manufacturer

When dealing with the core of your medical tech, avoid average options. We at PCBA Store act as a direct maker and top supplier. Our modern factory supports this role. We focus on offering a complete answer for medical PCBA. This covers quick prototypes up to full printed circuit board assembly.

Our setups handle the trickiest needs for circuit card assembly with superior accuracy. Whether for ITAR PCB manufacturing in a private task or large-scale PCB assembly for a worldwide debut, we bring the know-how and tools to succeed.
