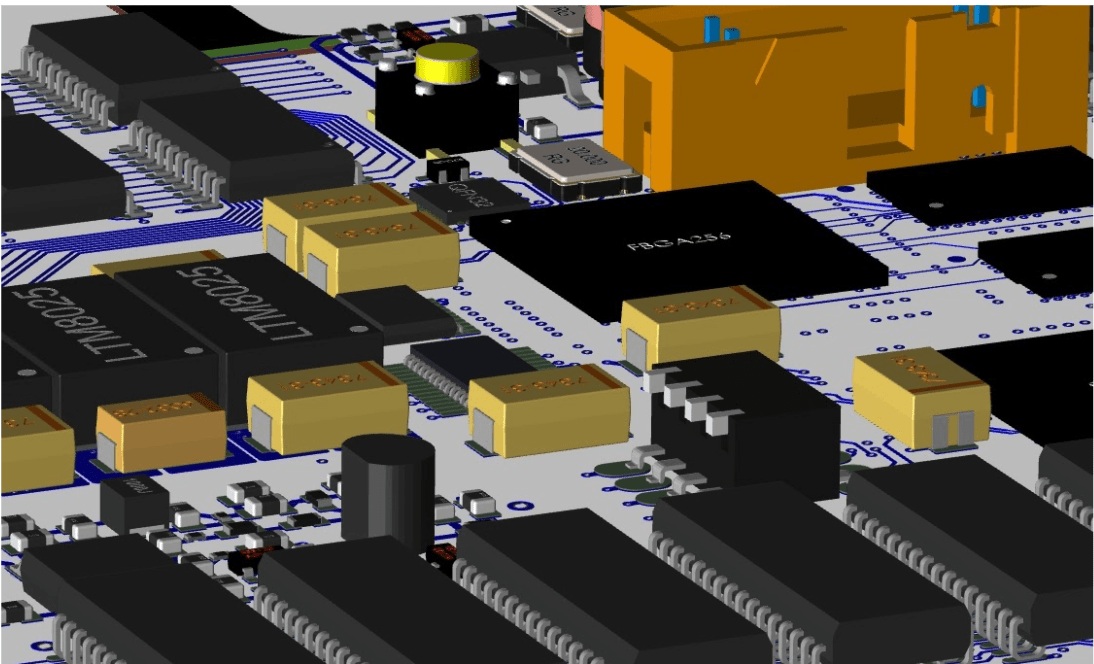

Functional Partitioning in PCB Design

Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, integrating a wide variety of components and signal types into a compact form. To ensure optimal performance and reliability, engineers employ functional partitioning—a design strategy that separates different circuit functions into distinct areas on the PCB. This method not only reduces interference and noise but also streamlines component placement, routing, and testing.

This same principle of partitioning is also used in the design of printed circuit boards, where there are different groups of circuits that perform different functions. Functional partitioning ensures that analog, digital, and power circuits operate independently without causing crosstalk or electromagnetic interference (EMI), leading to better signal integrity and system stability.

Key Takeaways

· Functional partitioning enhances signal integrity by isolating analog, digital, and power circuits.

· It reduces EMI and crosstalk through thoughtful layout planning.

· Strategic component placement within partitions supports thermal management and manufacturability.

· PCB design tools like schematic grouping, rooms, constraint managers, and design partitioning streamline this process.

The Purpose of Functional Partitioning in PCB Design

The purpose of designating functional partitions on a circuit board is to keep these different areas isolated from each other. On mixed-signal boards—those containing analog, digital, and power elements—functional partitioning helps minimize:

· Crosstalk: Prevents high-speed signals from interfering with sensitive lines.

· Electromagnetic Interference (EMI): Avoids improper return paths for signals that could result in radiation or noise.

· Poor Signal Integrity: Maintains clean clock signals by placing them near associated components.

· Power Supply Noise: Keeps noisy switching regulators from contaminating sensitive analog circuits.

There are some other benefits to functional partitioning as well. By floor planning the partitions in advance, the layout design team will be better organized when it comes to component placement.

Planning Partitions Along with Component Placement

Before placing components or routing traces, designers must define the board’s physical parameters—outline shape, size, fixed connector locations—and determine the layer stackup. Once these are set:

Keep Analog and Digital Areas of Component Placement Separate

Separating this circuitry is the main purpose of partitioning the design and yet, they often get blended during component placement. Grouping analog and digital parts separately in the schematic helps maintain this separation during layout.

Isolate Power Supplies from Sensitive Components

Although the power supplies need to be close enough to power the parts that they are designated for, there must be some space between the power circuitry and the digital parts they are supplying. This prevents switching noise from affecting nearby sensitive components.

Plan for Larger CPU and Memory Components to Be Centralized on the Board

These parts should not be close to the edge to help them dissipate heat through the board. Centralizing these components also shortens trace lengths for high-speed signals.

Associated Circuitry Should Be Grouped in the Same Partition

Use the logic flow from the schematic to map out the partition. Start with the connectors and place the components inboard from them according to how the circuitry is laid out in the schematic.

Trace Routing and Other Considerations for Functional Partitions

Routing decisions should support your functional partitions. Considerations include:

Power Distribution Network (PDN) Guidelines

Try to avoid split planes. If you must split a plane, remember that you can’t allow trace routing to cross the split.

Keep power and ground separated for digital and analog areas.

Make sure that you give yourself enough room in the partitions for a well-designed PDN. CPUs especially require careful decoupling capacitor placement within their designated partitions.

Cooling and Thermal Considerations

Allow for the proper cooling of the board. Depending on the placement, tall components such as connectors may inadvertently block the airflow needed for hot-running components like processor chips.

Thermal isolation between partitions can prevent heat-sensitive analog sections from being affected by high-power digital zones.

How Best to Use the Tools for Planning Partitions

Modern PCB CAD tools offer features that make it easier to implement functional partitions effectively:

Schematic

When capturing the schematic, place components together that need to be in the same partition. This logical grouping simplifies part selection during layout.

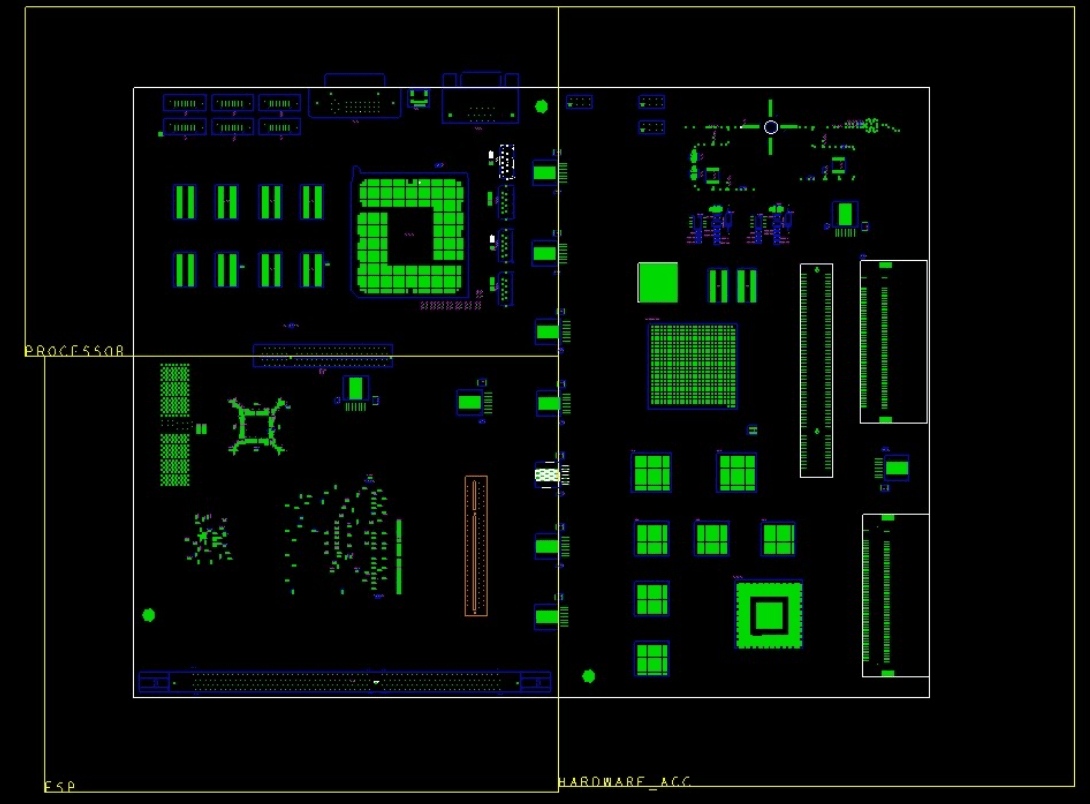

Rooms

Although this can be done with some simple graphics, providing functionality called “rooms” that can help.

Rooms allow you to define physical zones on your layout tied directly back to schematic groupings. Only specific parts can be placed within each room based on their assigned attributes.

Constraint Manager

This utility facilitates the assignment of classes to components and nets as well as setting up layer routing constraints and high-speed design rules.

Constraint managers enforce clearances between partitions or restrict certain nets from crossing boundaries unintentionally.

Design Partitioning

This option allows designers to specify partitions in the layout for team design. Multiple designers can work simultaneously on isolated sections without conflicts.

FAQ

Q1: Why is functional partitioning important?
A: It prevents interference between circuit types like analog/digital/power by isolating them physically on a PCB layout.

Q2: Can I use software tools for automatic partition creation?
A: Yes. Tools support features such as rooms, constraint managers, and team-based design partitioning.

Q3: Does functional partitioning help during testing?
A: Absolutely. Defined zones simplify test point access and troubleshooting by logically organizing related circuitry together.

Q4: How does it impact manufacturing?
A: Better-organized layouts improve manufacturability by reducing errors related to signal integrity or thermal issues during pcb assembly processes.
