How to Prevent PCB Warp and Bow During Manufacturing

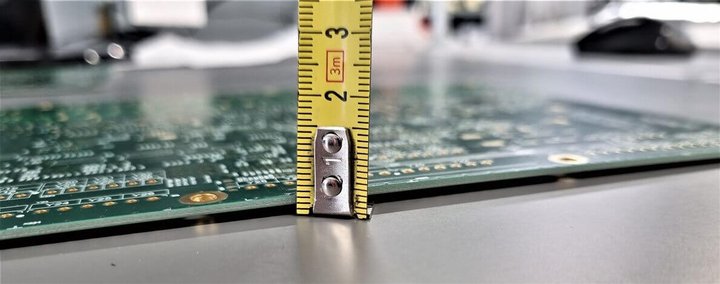

What is PCB Warp and Bow

Printed Circuit Boards (PCBs) are vital parts of almost every electronic gadget. However, they can get bent or twisted during the making process. Warp happens when a PCB curves away from its flat shape, which messes up its size and can harm how it fits together or works. Bow means the board takes on a rounded shape along its length or width, often due to uneven heat changes while being made. These problems weaken the board’s strength and make automatic assembly tricky, plus they can hurt the device’s reliability over time.

Causes of PCB Warp and Bow

Material Properties

The type of base material picked for a PCB can really affect whether it warps or bows. Some materials stretch more when heated because of their high thermal expansion rates, creating stress inside. If this stress isn’t spread evenly, the board’s shape gets thrown off.

Thermal Stress

During steps like soldering or layering, heat can build up stress in the PCB and cause it to warp. This is a bigger issue in multilayer PCBs, where different materials might stretch at different speeds under heat.

Moisture Absorption

PCBs can soak up water from the air around them. This makes them swell, and later, when heat hits during soldering, they might warp. This is especially important during reflow or wave soldering.

Manufacturing Techniques

Bad methods during production, like uneven heat in soldering or poor curing of layers, can lead to warping. If temperature or pressure isn’t applied evenly while layering, the board’s structure might not stay flat.

Mechanical Stress

Handling or physical strain during assembly can also twist the board out of shape. Wrong ways of stacking, clamping, or moving the boards can put too much pressure on them.

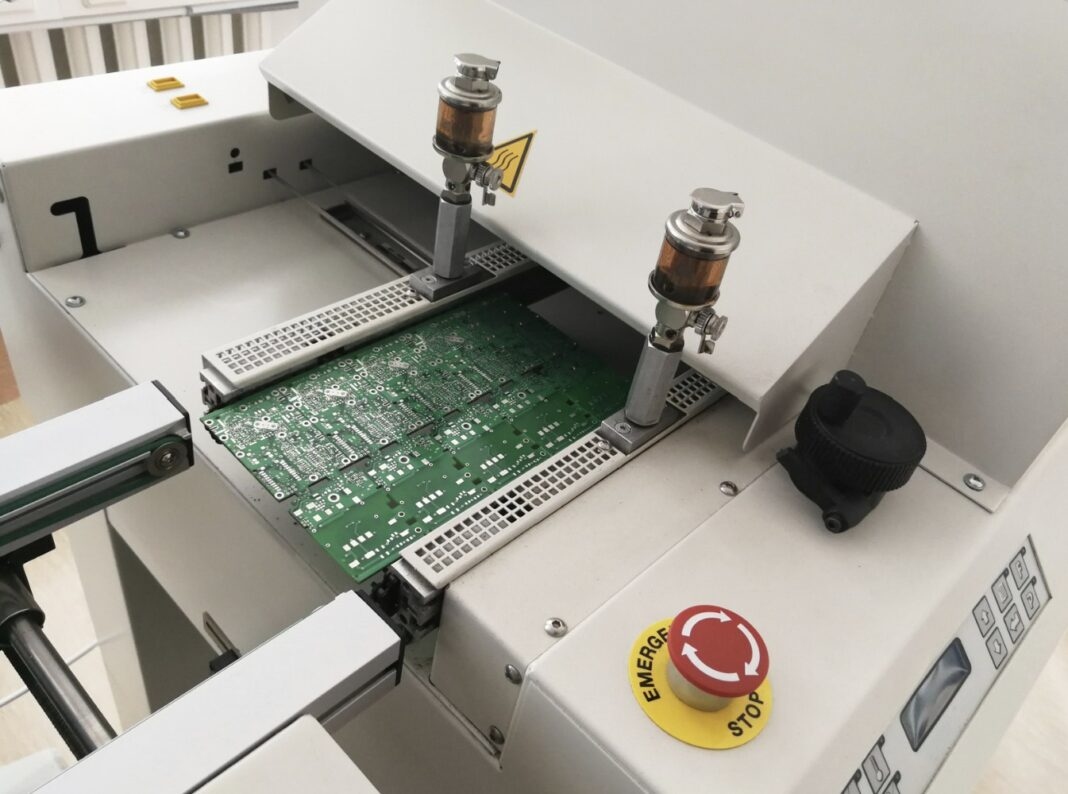

Strategies for Preventing PCB Warp and Bow

Selecting the Right Materials

Picking the best material is super important. FR4 is a common choice because it’s affordable and decent, but it might not handle high heat well. Other options, like polyimide or aluminum-backed PCBs, are better at dealing with heat. Knowing how much a material expands with heat, or its CTE, helps cut down on warping risks.

Optimizing PCB Design

A smart design is key to stopping warping:

· Balanced Copper Distribution: Make sure copper is spread evenly across the board in the layout design.

· Layer Stack-Up Configuration: How layers are arranged in a multilayer PCB can change how it reacts to heat.

· Controlled Impedance Design: For fast-working boards, this design helps manage heat and electric flow.

· Use of Vias: Adding thermal vias lets heat spread out more evenly over the board.

These ideas help keep the board steady and lower stress spots that cause bending.

Design for Manufacturability (DFM)

Using DFM ideas in PCB design can greatly lower the chance of warp and bow. Following rules like IPC-2221 makes sure the design matches what can be made. This covers things like spacing of traces, even copper weight, and ratios that keep stress low.

Effective Lamination Techniques

How well layering is done affects if the board stays flat:

· Keep pressure and heat steady during the whole layering step.

· Pick top-notch prepreg materials that stick well and handle heat better.

Doing this helps layers cure evenly, cutting down on uneven stretching that leads to warping.

Soldering Procedure Optimization

Soldering brings a lot of heat to PCBs. To keep bending low:

· Use careful heat patterns during reflow soldering.

· Make sure solder mask and paste are put on right.

Slowly raising heat stops sudden shocks, and proper paste use avoids mistakes that could bend parts more.

Moisture Control

Keeping water out before heating is a must:

· Keep PCBs in dry places and use moisture-proof bags if needed.

· Think about adding protective coatings to guard against dampness.

These steps stop swelling from water, which often shows up as warping after high heat in pcb assembly.

Rigorous Testing and Quality Control

Spotting issues early keeps bad boards from reaching customers:

· Set up strict checks to catch warping problems early in making.

· Use tools like Automatic Optical Inspection (AOI) and heat imaging for good results.

Regular checks make sure the board meets flatness rules set by IPC standards.

FAQ

Q1: What level of warp or bow is acceptable in a finished PCB?
Rules like IPC-A-600 say that for surface mount boards under 1.6 mm thick, the most warp allowed is 1.5%. For thicker ones or those with through-hole parts, this limit can change a bit based on how they’re used.

Q2: Can warped PCBs be fixed post-manufacturing?
Small bends might be fixed with careful heat or flattening tools. But it’s usually smarter and cheaper to stop warping early on instead of fixing it later.

Q3: Does multilayer construction increase warp risks?
Yes, it does. Multilayer boards mix materials with different CTEs. Without good planning for layer stack-up and balanced copper layouts, they’re more likely to build up stress and warp.

Q4: How does pcb assembly impact warp?
In pcb assembly steps like reflow or wave soldering, wrong heat settings or rough handling can add new stress to boards that are already at risk. Fine-tuning these steps cuts down the danger a lot.
