How to Test a PCB With a Multimeter for Fault Detection

Introduction

Testing the PCB in an accurate manner is essential in order to detect any faults in the electrical circuits, increase the reliability of products, and reduce unnecessary costs of repair. For engineers and manufacturers, understanding how to test the performance of the PCB using a multimeter becomes a good starting point prior to more complex tests.

What Tools Are Needed for Testing a PCB With a Multimeter?

A digital multimeter serves as one of the most useful tools for basic PCB diagnosis. It lets engineers check electrical conditions without the need for complex gear. The primary functions applied in PCB testing cover continuity testing, resistance measurement, diode testing, and DC voltage measurement.

Before the test begins, engineers should gather these items:

For simple PCB troubleshooting, a multimeter can find many everyday problems. Yet advanced PCB assemblies often need extra inspection tools to confirm signal integrity, solder quality, and functional performance.

How to Prepare a PCB Before Multimeter Testing?

Good preparation raises testing accuracy and avoids further circuit damage. Before any measurement on a PCB, the power source must stay disconnected unless a certain voltage test needs the board to run.

The basic preparation steps include these actions:

· Disconnect external power supplies and batteries.

· Discharge capacitors that may store electrical energy.

· Check the PCB surface for visible damage, burned areas, corrosion, or loose components.

· Review the PCB schematic, component layout, and test points.

· Confirm the correct measurement mode before connecting probes.

For professional PCB manufacturing, engineers normally depend on design files such as Gerber files, Bill of Materials (BOM), and assembly drawings. These papers supply the reference data required for troubleshooting and production checks.

A solid grasp of PCB layers, traces, components, and power distribution helps engineers decide whether a fault stems from the design, fabrication process, or assembly stage.

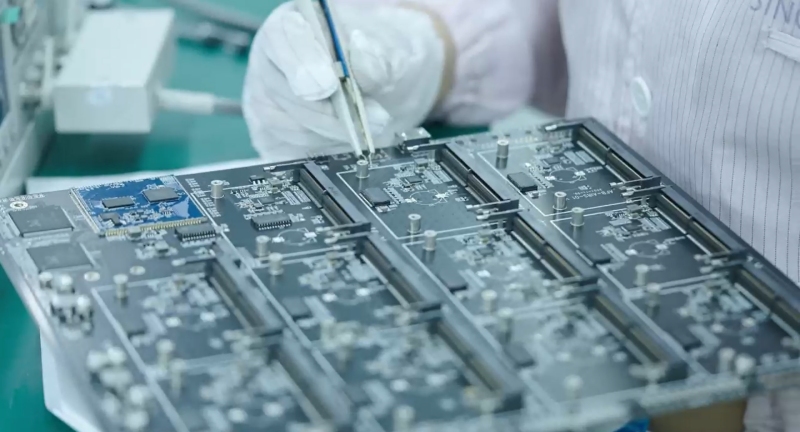

How to Test PCB Continuity With a Multimeter?

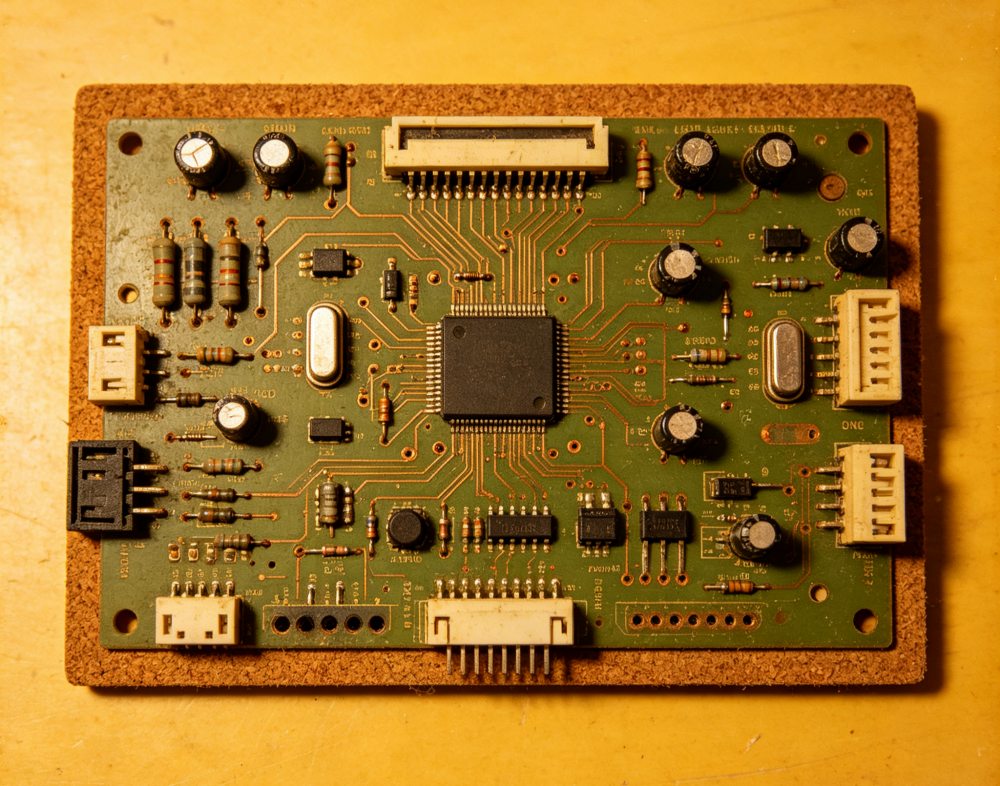

Continuity testing forms one of the first steps when testing circuit boards. It examines whether electrical paths between two points stay joined correctly.

To carry out a continuity test, engineers follow these steps:

· Set the multimeter to continuity mode.

· Place one probe on each end of the PCB trace, connector pin, or solder joint.

· Check whether the multimeter indicates a continuous connection.

A normal PCB trace should show continuity between joined points. If the multimeter gives no response, the circuit path could be open. If points that should stay separate show continuity, an unwanted link may exist from solder bridges or PCB defects.

Continuity testing proves especially helpful for checking these items:

· Broken copper traces

· Connector connections

· Solder joint reliability

· Ground and power paths

During PCBA assembly, continuity checks help spot manufacturing problems before products enter final testing.

How to Check a PCB for Short Circuits?

Short circuits rank among the most frequent PCB failures. They happen when two electrical points that must remain apart become joined and create abnormal current flow.

A multimeter can locate shorts through resistance measurement between power and ground. A very low resistance value often points to a short circuit.

Common causes include these issues:

In high-volume PCBA production, automated inspection methods such as Automated Optical Inspection (AOI) and In-Circuit Testing (ICT) add further protection. They catch assembly problems at an early point.

How to Measure Voltage on a PCB With a Multimeter?

Voltage measurement lets engineers see whether power reaches different circuit sections in the right way. Unlike continuity testing, voltage testing usually needs the PCB to stay powered.

The basic process covers these actions:

· Select DC voltage mode on the multimeter.

· Connect the black probe to the ground point.

· Touch the red probe to the target test point.

· Compare the measured value with the expected voltage from the circuit design.

Typical voltage problems include these cases:

Accurate voltage testing calls for clear knowledge of the circuit design. Different PCB sections may run at separate voltage levels.

How Can You Test PCB Components With a Multimeter?

Testing single components helps find faulty parts without replacing the whole PCB. A multimeter can assess several common components.

Still, some integrated circuits and advanced semiconductor parts cannot receive full evaluation with a standard multimeter. These parts usually need functional testing, programming checks, or special diagnostic tools.

What Mistakes Should Be Avoided During PCB Testing?

Wrong testing methods can cause extra failures. Engineers should steer clear of several frequent mistakes:

· Measuring resistance on a powered PCB.

· Using the wrong multimeter mode.

· Applying excessive probe pressure that damages solder joints.

· Ignoring electrostatic discharge (ESD) protection.

· Testing without referring to circuit documentation.

Professional PCB testing needs a clear plan. One single measurement seldom confirms the full state of a circuit board. The combination of visual inspection, electrical testing, and functional checks delivers more dependable results.

How Does Professional PCBA Testing Improve Product Reliability?

Professional PCBA testing reaches further than basic multimeter readings. It confirms whether assembled circuit boards will run steadily under expected conditions.

At PCBA Store, our PCB assembly process backs multiple inspection and testing needs, including these steps:

· Visual inspection for assembly quality

· Automated Optical Inspection (AOI)

· X-ray inspection for hidden solder connections

· Electrical testing for circuit verification

· Functional testing based on customer requirements

These approaches help catch problems tied to component placement, solder quality, and circuit performance before goods reach the market.

For companies developing electronic products, choosing a PCB assembly partner with dependable testing ability can lower production risks and raise long-term product stability.

How Does PCBA Store Support PCB Testing and Assembly Requirements?

PCBA Store offers combined PCB and PCBA solutions for businesses that need dependable manufacturing help. We support customers from PCB prototype production to complete PCB assembly projects.

Our manufacturing strengths include these areas:

· PCB fabrication

· PCB assembly

· Component procurement

· Prototype and production orders

· Quality inspection and testing support

Customers can send PCB design files, BOM documents, and assembly needs through our online quotation system to gain production support. Our team helps review manufacturing needs, improve production flows, and deliver suitable PCB assembly solutions.

For PCB manufacturing and assembly questions, customers can upload project files through our online quote service or learn more about our PCB assembly capabilities.

Frequently Asked Questions About PCB Testing

Can a multimeter test a PCB without power?

Yes. A multimeter can carry out continuity, resistance, and diode tests without power. These methods help find open circuits, short circuits, and damaged components. Voltage testing, however, needs the PCB to stay powered in a safe manner.

How do you check if a PCB trace is damaged?

A damaged PCB trace can be checked through continuity testing. Place the multimeter probes at both ends of the suspected trace. No continuity usually points to a broken electrical path.

What resistance reading indicates a PCB short circuit?

There is no single resistance value because different circuits follow different designs. Still, an unusually low resistance reading between power and ground may signal a possible short circuit and needs more review.

What is the difference between PCB testing and PCBA testing?

PCB testing centers on the bare circuit board and covers electrical connections plus manufacturing quality. PCBA testing examines the assembled board after components are fitted and includes solder joints, component placement, and functional performance.

Why is functional testing important after PCB assembly?

Functional testing confirms whether the assembled PCBA works according to product needs. It checks real operating conditions that basic electrical measurements cannot fully assess.
