Industrial Control PCB Assembly Applications and Examples

Industrial control boards hold a key spot in today’s automation and basic systems. They help run complex setups with exact care in many fields. These boards often use microcontroller units (MCUs). They keep working well in tough places where any stop can cause big problems. From energy control to transport, this tech boosts speed and new ideas.

img.Industrial Control PCB Assembly factory online quote.jpg

This piece looks at the basics of industrial control PCB assembly. It covers wide uses and real project cases. It shows the careful work needed to turn plans into strong items. PCBA Store, a leading manufacturer, supplier, and factory that focuses on one-stop PCB solutions, backs these efforts with top skills made for industrial wants.

What is Industrial Control PCB Assembly?

Industrial control PCB assembly means making and filling printed circuit boards built for heavy-duty uses run by MCUs. Industrial-grade points to hardware made for high-trust cases. It serves many users in work, public, or production spots. Here, output, safety, and long life matter most. This differs from commercial-grade items, like home tools, which put cost first over long strength.

MCU-run systems depend on microcontrollers such as ESP32, ESP8266, or special units from Neoway, Quectel, Fibocom, and Simcom. They handle jobs like wireless links, IoT joins, and quick processing. An industrial control board thus mixes these parts into one solid unit. It fits uses that need toughness, such as automation controllers or watch systems.

The build process has many steps. PCB fabrication forms the base board. Component sourcing gets MCUs and extra parts. Surface-mount technology (SMT) and through-hole technology (THT) place items. Soldering and testing come next. Advanced help like IC programming, function checks, and box-build joins follow. This creates ready-to-use units. Prototyping and samples go before big runs. They find and fix problems soon. This keeps standards like IPC-A-610 Class 3.

Main issues in this build cover heat spread control, part line-up in tight layouts, and strength against shake, wet, and electric noise. Skills like managing 01005 SMD footprints, BGA packages with 0.4mm pitch, and heavy copper traces up to 6oz let boards handle hard industrial tasks. Test rules, such as automated optical inspection (AOI), X-ray for hidden solder spots, and in-circuit testing (ICT), check quality. They reach defect rates under 0.2%.

Advantages of Industrial Control PCB Assembly

img.China Industrial Control PCB Assembly service supplier factory online quote.jpg

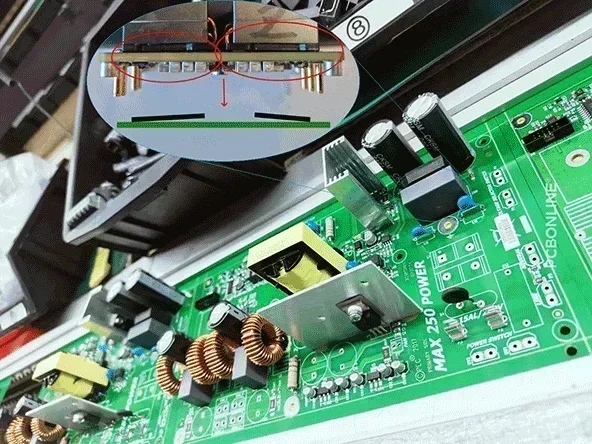

Picking expert industrial control PCB assembly brings many gains, mainly in trust and growth size. These builds fit smoothly into bigger systems. They cut failure chances and fix costs. For example, exact soldering ways reduce gaps in through-hole parts. This improves heat control, key for power-heavy uses like inverters.

Growth from test models to large runs lets steady progress without supply breaks. Sourcing from world networks keeps automotive-grade MCUs and RoHS-compliant parts ready. No minimum order quantities (MOQ) fit small test groups. Quick turns as short as 8-48 hours for test models speed market entry. This matters in fast fields.

Quality checks via ISO 9001 and IPC rules promise steady work. 99.5% yield rates are usual in approved sites. Extra help includes free design for manufacturability (DFM) checks. These spot issues like impedance errors or via spots early. For industrial jobs, these gains mean lower full costs and more system run time. Expert assembly is vital for key tasks.

Applications of Industrial Control PCB Assembly

Industrial control PCB assembly runs many tools. They fall into business joins, signals and links, big gear, and built-in control boards. These uses tap MCU-driven exactness for automation, watch, and better work.

Business-Used Integration

In work and public areas, these builds handle surroundings and energy systems. Lighting controllers set light auto in parks, stages, office towers, and hotels. MCUs change based on people or day light sensors. Temperature and humidity controllers keep best states in data hubs or plant houses. They join sensors for quick feedback loops.

Elevator controllers promise smooth, safe rides in tall builds. They process signs from encoders and safety locks. Solar energy storage controllers boost battery charge and inversion. They aid green grids with smart rules. Smart meters for power, water, and gas track use via wireless units. They allow far billing and odd spot finds.

Brushless motor controller modules push smooth drive in automated guided vehicles (AGVs) for storage spots. Industrial-grade refrigeration panels control cool in food plants. These joins raise work speed and meet energy rules.

Signals and Communications

Trusty signaling supports base strength. Signal controllers run traffic lights. They set flows with change rules. Rail traffic signal modules set train moves. They add GPS and fail-safes for safety.

Industrial signal timers order steps in build lines. Ethernet bridges ease net data swap in plants. Industrial control IoT and Industrial Internet of Things (IIoT) platforms link sensors to cloud study. They allow guess fix in making.

Large Industrial Equipment

Heavy systems need tough builds. Oil and gas control systems watch pipes with pressure sensors and valves. MCUs spot leaks. Railway traffic electric controls auto switch and brake.

ATM banking kiosks handle deals safe. Boards manage code and extras. Smart production lines use sight systems for quality watch. Industrial power supplies and inverters give steady voltage for machines.

Laser cutting machine controllers match optics and move. Face recognition systems allow auto pay or border pass. Programmable logic controllers (PLCs) and MCU growths custom fit answers. Industrial cameras grab video for check.

Control Boards in Devices

Built-in boards give local smarts. Lawn mower control panels join GPS for self guide. Power tool panels manage speed and twist. Servo motor boards give exact spots in robots.

Instrument panels in labs handle multi-path data. 3D scanners catch shapes for back engineering. Laser emitters and welding gear need fast pulse control. Floor cleaning vehicles use sensor mix for block dodge.

These uses show the wide range of industrial control PCB assembly. It reaches any MCU-based system in public, gov, or production spots.

Project Examples of Industrial Control PCB Assembly

Real cases highlight build details. In one, a high-power industrial inverter board had many PTH parts. It needed careful jig plans to stop float in wave soldering. Heat profiles kept 100% solder fill. Selective soldering fit exact parts. This gave better heat spread for electric vehicle charge uses.

Another case used an industrial camera for road watch. It was built with 4K autofocus units and face recognition. It handled 01005 parts on rigid-flex boards. The work added software-hardware co-growth and case joins. Field tests over two weeks proved work. It gave 1,000 units with zero flaws.

These jobs stress DFM skills to fix shift, line-up, and tests. They ensure smooth move to big runs.

Conclusion

Industrial control PCB assembly forms the core of trusty, MCU-run systems in today’s fields. It needs exact work from plan to set-up. By fixing issues with top making, build, and tests, these steps allow growth-ready, high-work answers. For firms wanting to complete industrial jobs, teaming with skilled makers ensures win via full help.

FAQ

What distinguishes industrial-grade PCB assembly from commercial-grade?

Industrial-grade aims at high trust for multi-user spots. It adds strength against surround stress. Commercial-grade fits single user items.

What MCUs are commonly used in industrial control boards?

Common picks include ESP32 and ESP8266 for wireless jobs. Modules from Quectel, Fibocom, and Simcom fit IoT and car links.

How does PCBONLINE handle prototyping for industrial projects?

Prototyping uses DFM checks, small-group build, and tests. It refines plans before big scale. Refunds on R&D fees come with mass run promise.

What testing is essential for industrial control PCBs?

Main tests cover AOI, X-ray check, ICT, and function circuit tests. They verify solder spots, part places, and full work.

Can industrial control assemblies support high-density components?

Yes. Skills reach 01005 SMDs, 0.4mm pitch BGAs, and mixed SMT/THT on boards up to 40 layers.
