Step-by-Step Guide to the Flex Printed Circuit Board Assembly (FPCBA) Process

Introduction to Flex Printed Circuit Board Assembly

In today’s fast-changing electronics world, Flex Printed Circuit Board Assembly (FPCBA) is a key player for making small, tough, and high-quality devices. Whether you’re building wearable health trackers, car sensors, or airplane connectors, flex circuits—also called flexible PCBs—are super adaptable. Unlike stiff boards, these can bend, twist, and fit odd shapes. They cut weight by up to 70% and reduce spots where things might break. Putting together flex PCBs needs careful work. Even tiny mistakes can mess up signals or make the board weak.

PCBA Store, a top PCB manufacturer with over 16 years in building and 8 in assembly, knows FPCBA inside out. We provide full solutions for fields like medical tools and gadgets. In this clear guide, we’ll go through the FPCBA process step by step. We’ll share tips on materials, rules, challenges, and smart ways to work. By the end, you’ll know how to make your next flex PCB project fast and strong.

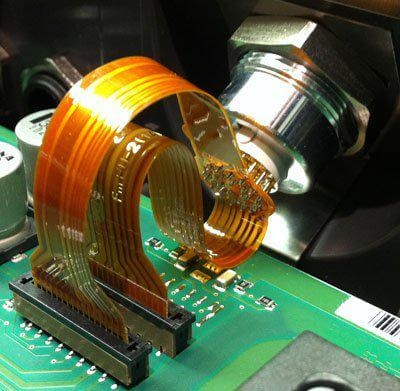

img.China Flex Printed Circuit Board Assembly (FPCBA) manufacturer PCBA Store

Why Flex Printed Circuit Board Assembly Matters in Modern Electronics

Before we list the steps, let’s talk about why flex PCB assembly is a big deal. Regular rigid PCBs are great for steady settings, but they struggle in tight or moving spaces. Flex PCBs, made on bendy bases like polyimide (PI), solve this. They allow 3D wiring and handle shaking well—key for electric cars where wire bundles can weigh over 50kg. Experts say the global flex PCB market will grow at 12.5% yearly through 2030, thanks to IoT and 5G needs.

Key perks include:

· Space Savings: Foldable designs shrink board size by 60%.

· Lighter Weight: Perfect for drones and wearables, cutting load by 30%.

· Stronger Reliability: Fewer connectors mean fewer breakdowns in tough spots.

· Better Heat Control: PI bases spread heat 20% faster than FR4.

But challenges like holding boards steady during SMT or managing bend sizes need skill. Following IPC rules—like IPC-6013 for making flex boards and IPC-A-610 for assembly—keeps quality high and meets standards.

Essential Materials for Successful Flex PCB Assembly

Picking the right stuff is the first step for FPCBA. Flex PCBs use bendy copper-clad laminates (FCCL) as the base, with glues and coverlays to protect them.

Core Substrates

· Polyimide (PI): The top choice for hot settings (up to 260°C). It’s used in 80% of flex designs for its strength (200 MPa) and low stretch (12-20 ppm/°C).

· Polyester (PET): Cheaper for less bending, but only good up to 105°C.

· Adhesive-less Laminates: Best for lots of bending, lasting up to 100,000 folds without peeling.

Conductors and Finishes

Copper foil (18-35μm thick) makes the paths. Rolled annealed copper works for tiny lines (down to 25μm). Finishes like ENIG or OSP stop rust, ensuring good soldering per IPC-4552.

Coverlay and Stiffeners

Coverlay films (PI-based) shield paths. FR4 stiffeners strengthen connector spots, reducing stress during flex circuit board assembly.

At PCBA Store, we use IPC-approved materials, offering PI and rigid-flex mixes for prototypes starting at $5 per board.

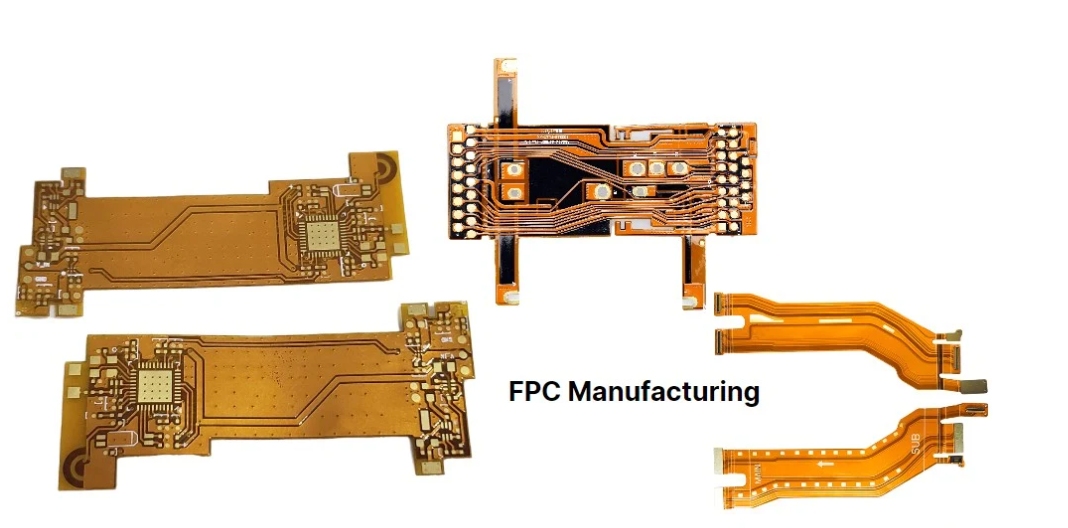

img.FPC PCB Assembly services supplier manufacturer PCBA Store

Design Considerations for Optimal Flex Printed Circuit Board Assembly

Good FPCBA starts with a smart design. A bad layout can cause cracks when bending.

Key Guidelines

· Bend Radius: Keep it 10 times the base thickness to avoid wear. Use teardrop vias to ease stress.

· Path Routing: Spread out conductors in multi-layer flex (up to 8 layers). Avoid sharp 90° turns to balance strain.

· Part Placement: Stick to one side for single-layer flex. Use underfill for BGAs in shaky settings.

· Signal Control: Keep 50Ω paths with steady base thickness per IPC-2223.

Tools like Altium Designer help test flex movement, ensuring DFM rules are met. PCBA Store’s design team, skilled in 1-40 layer boards, gives free reviews to make your flex PCB assembly smooth.

Step-by-Step Guide to the Flex Printed Circuit Board Assembly Process

The FPCBA process mixes regular SMT with special care for bendy bases. Here’s a full breakdown, built on standard steps with IPC-approved extras.

Step 1: Incoming Material Inspection and Preparation

When materials arrive, check FCCL, coverlay, and parts against specs. Use AOI to spot flaws. Verify material papers (e.g., IPC-4101 for laminates). Clean bases with ultrasonic waves to remove dirt, avoiding gaps in layering. For rigid-flex mixes, line up stiff parts carefully.

This catches 95% of problems early, cutting rework by 40%.

Step 2: Flex PCB Fabrication

Make the bare flex board before assembly:

· Layering: Press copper foil onto PI base at 200-300 psi and 150-180°C.

· Photo and Etching: Add photoresist, use UV light, and etch paths (min width 50μm).

· Coverlay Step: Cut pad openings with lasers, then layer coverlay.

· Finish and Shape: Apply ENIG; shape with laser routing to avoid rough edges.

PCBA Store makes 2-day prototypes with HDI microvias (4mil), handling up to 1 million pieces.

Step 3: Solder Paste Printing and SPI

Place the flex PCB on a stiff carrier pallet (e.g., FR4 with vacuum holes) to stop warping. Line up a 0.1mm steel stencil and spread solder paste with a machine. Solder Paste Inspection (SPI) uses 3D laser scans to check paste volume (75-150μm), ensuring even melting.

Challenge: Flex boards move. Sticky pallets hold them without leaving marks.

Step 4: Component Placement (Pick-and-Place)

Fast robots place tiny SMDs (down to 01005 size) on paste. For fine QFNs, vision tools align to ±20μm accuracy. Through-hole parts, if used, need special soldering later.

For bendy apps, choose low-profile parts to keep bend sizes right. IPC-A-610 Class 3 ensures no flaws for high-stakes fields like aerospace.

Step 5: Reflow Soldering and Post-Solder Processing

Move the filled flex through a nitrogen-filled reflow oven (peak 245°C for lead-free SAC305 alloy). Heat rises at 1-3°C per second to avoid part tilting on uneven flex surfaces.

After reflow: Add thermal layers for modules (e.g., nickel sheets for sensors). Attach stiffeners with epoxy.

Step 6: Inspection and Testing

· AOI and X-Ray: Check for bridges or gaps. X-ray spots hidden flaws in BGA balls.

· Function Tests: Probe connections (IPC-9252) and insulation under wet conditions (IPC-TM-650 2.6.3.2).

· Flex Tests: Bend 100,000 times at 25mm radius, test heat shock (-40°C to 125°C), and pull strength (per IPC-6013).

These ensure 99.9% perfect boards, key for medical implants where failures must be under 0.1%.

Step 7: Conformal Coating and Final Assembly

For tough settings, dip or spray a 25-75μm polyimide coating for water resistance. Join to rigid boards or cases by soldering.

Step 8: Packaging and Shipping

Pack in ESD-safe bags with desiccant. Check sizes to confirm tolerances (±0.1mm). PCBA Store promises 99% on-time delivery via DHL.

Common Challenges in Flex Printed Circuit Board Assembly and Solutions

FPCBA has some hurdles:

· Handling Issues: Custom pallets cut movement by 90%.

· Signal Problems: Crosstalk in bends—fix with shields and ground planes.

· Cost: 20-30% pricier than rigid; save with big-batch scaling.

· Scaling: Roll-to-roll for high volumes cuts costs 40%.

Using IPC-2223 for design solves 80% of problems early.

Future Trends in Flexible PCB Assembly

New tech like built-in sensors and 3D-printed flex hybrids will make devices smaller. Eco-friendly bases and AI-tuned reflow steps will push yields to 99.5%.

FAQ

What is the difference between flex PCB and rigid-flex assembly?
Flex PCBs are fully bendy, great for moving parts. Rigid-flex adds stiff sections for support, good for mixed-signal designs.

How long does the FPCBA process take at PCBA Store?
Prototypes take 3-5 days. Mass runs take 1-4 weeks, with 24-hour rush options.

What IPC standards apply to flex PCB assembly?
Key ones are IPC-6013 (building), IPC-A-610 (quality), and IPC-TM-650 (testing) for reliability.

Can PCBA Store handle low-volume flex PCB orders?
Yes, no minimum order—start with 1 piece for prototyping.

What materials are best for high-temperature flex applications?
Polyimide (PI) bases, rated to 260°C, with adhesive-less laminates for toughness.
