Through Hole vs Surface Mount PCB Assembly Services
PCBA Store / 2025-11-18
Contents [hide]
The evolution of printed circuit boards (PCBs) has positioned them as indispensable elements in modern electronics, from compact automotive systems and industrial machinery to consumer gadgets and computing infrastructure.
Two main ways stand out: through-hole assembly and surface mount technology (SMT) assembly. Choosing between through-hole PCB assembly and surface mount assembly greatly affects part fit, production growth, cost plans, and total performance.

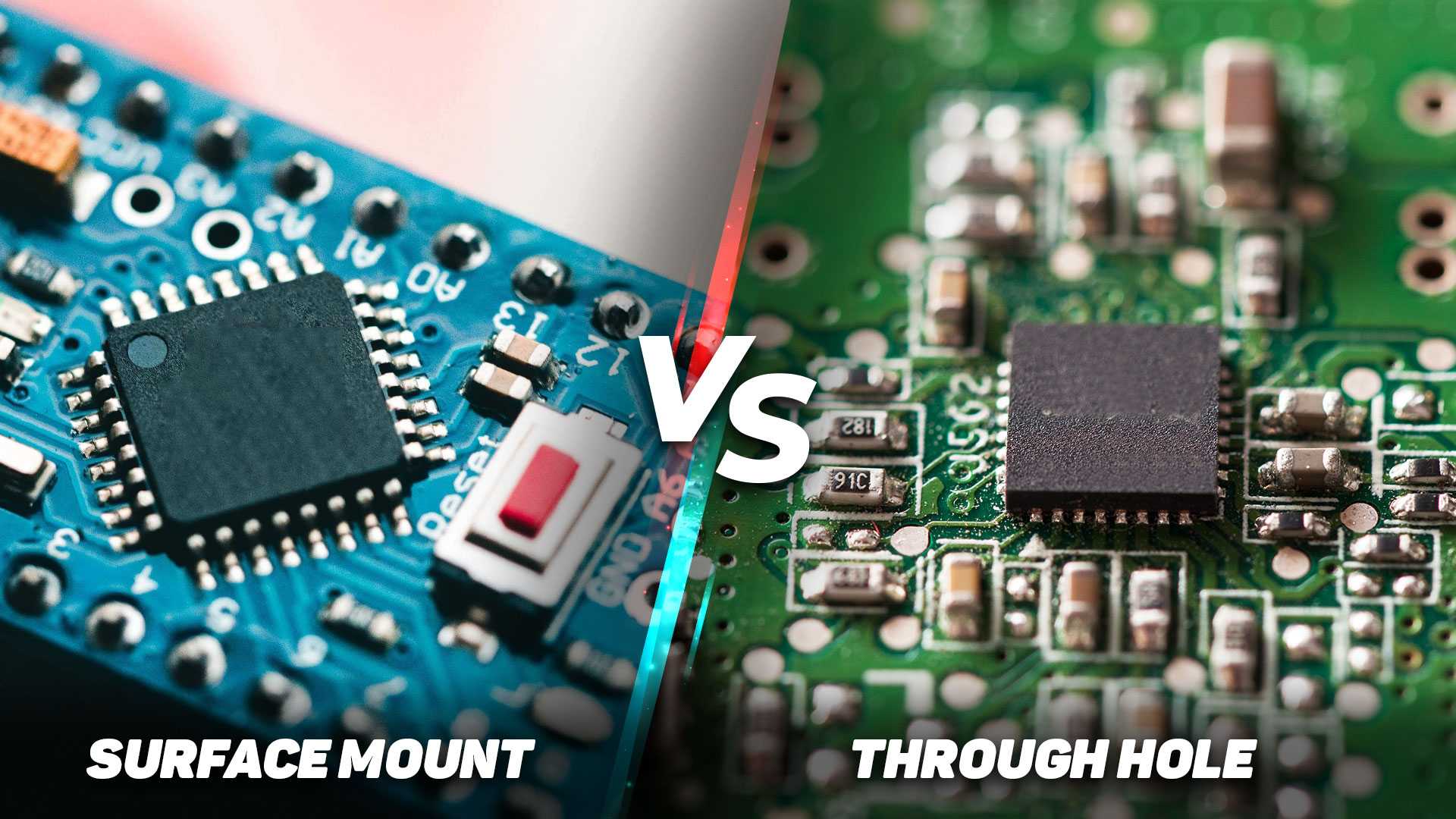

img.Through-Hole PCB Assembly vs Surface Mount Assembly
Through-Hole Assembly
Through-Hole Soldering Process and Applications
Through-hole assembly stays a key method in making electronics. People value it for low cost and strong build in tough spots. This way puts component wires through ready holes in the PCB base. Then, soldering happens on the other side. It creates firm electrical and physical links. The method stays popular because it handles shakes, big currents, or heat changes well. So, it fits places with these issues.
Advantages and Modern Use in Industrial Electronics
A big plus of through-hole PCB assembly is the tight hold on parts. This cuts chances of moving during carry, send, or work. Bigger part shapes allow better heat spread and power control. They lower breakdown in hard cases compared to weaker choices. For example, in power units or old system fixes, through-hole plans shine with natural strength.
From a making view, through-hole assembly works with hand and part-auto flows. It gives room for small runs or special samples. But, it uses more board space. Holes take room that could hold extra paths. Makers like PCBA Store add through-hole skills smoothly into full services. They use top soldering spots and checks to meet IPC-A-610 rules. Their no-minimum-order-quantity (MOQ) rule opens this way to new firms in control or car fields.
Even with old roots, through-hole assembly keeps improving. It often joins new auto tools to mix trust with speed. This flex keeps it useful where surface mount fails alone. Think high-voltage samples or tough cases.
Surface Mount Assembly
SMT Component Placement and Reflow Soldering Process
Surface mount assembly marks a big change in PCB building. It stresses quick work, tight pack, and auto to match current needs. Parts stick right to the PCB top via solder spots. No need for board-deep holes. Wires or ends on these parts stay small or none. This lets exact place with glue or paste. Then, reflow soldering in set ovens follows.
The top mark of surface mount technology (SMT) is small size fit. It holds parts as tiny as 01005 packages with gaps to 0.4mm. This tight plus is key for small tools like wear items, talk gear, or IoT units. Space limits push new ideas there. Auto leads the way. Pick-and-place machines from names like Yamaha and Panasonic run in spots like PCBA Store. They hit high output. Systems manage from samples (down to one) to millions. They cut build time to 12 hours for fast jobs.
Quality Control and Cost Efficiency in SMT Assembly
Cost savings come from less stuff use and smooth steps. This includes free stainless steel stencils and basic part get in full models. PCBA Store's SMT work shows over 99.5% good rates. AOI and X-ray checks spot flaws early. Lead-free, RoHS-compliant ways match green rules. Double-sided place support grows design options without hurt.
Though SMT grows well, it feels heat and shake stress more. So, strict checks are a must. Suppliers fix this with fine reflow sets and work tests. They give builds that match through-hole trust in high-speed or user items.
Differentiating Between Through-Hole Assembly and Surface Mount Assembly
Knowing the fine points between through-hole PCB assembly and surface mount assembly helps makers pick best paths for set uses. Here are main differences. They show work and output gaps:
Component Mounting: Through-hole assembly locks parts by pushing wires into PCB holes. Soldering goes on the back for strong join. Surface mount assembly sets parts flat on the board top. It solders to surface spots without deep go. This eases layout for thicker fits.
Component Size: Through-hole sets like bigger parts to pass board holes. It suits spots where size ties to power. Surface mount parts stay small. They allow complex plans in tight areas. Good for space-save items like phone talk hardware.
Assembly Process: Old through-hole ways often use hand irons. This leads to bigger marks and higher work pay. Surface mount assembly uses auto with pick-and-place bots and reflow ovens. It brings exact and scale save for big runs.
Reparability: Removing through-hole parts is easy with simple tools. It helps field fixes in sample stages. Surface mount fixes need special gear like hot air units or reflow tools. But, new rework spots close this gap.
Reliability: The firm anchor in through-hole assembly gives top fight to outside hits. This includes shakes and heat ends. Surface mount trust has grown much with better solder and check ways. It competes in set spots.
Space and Weight: Surface mount assembly wins in light, carry uses by best space use. Through-hole fits power-heavy or tough setups. Like sample stands or heavy factory controls.
These gaps show how the ways work together. Mix methods from makers like PCBA Store join them for more flex.

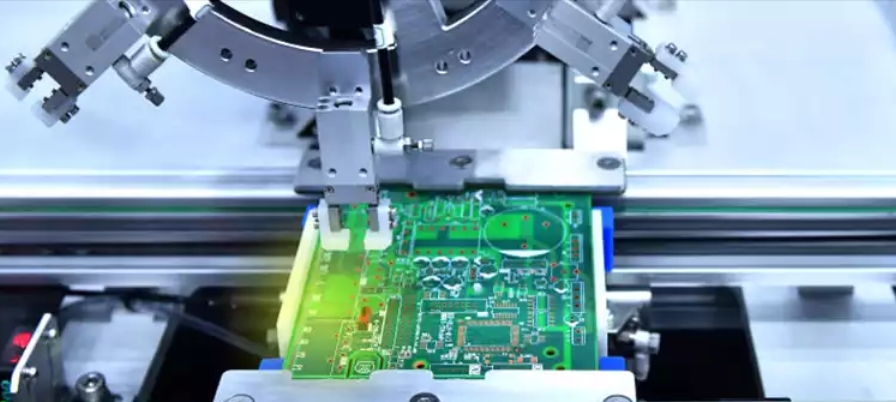

img.best Through-Hole PCB Assembly and Surface Mount Assembly manufacturer in China.
Comparison of Characteristics
Aspects | Through-Hole Assembly | Surface Mount Assembly |
Component Mounting | Components are mounted by inserting their leads into holes drilled in the PCB | Components are mounted directly onto the surface of the PCB rather than being inserted into holes |
Component Size | Typically larger components are used to fit into the holes on the PCB | Smaller components are used, allowing for more complex circuit designs in a smaller space |
Assembly Process | Manual process using a soldering iron | Automated process involving specialized equipment such as a pick-and-place machine and a reflow oven |
Repairability | Easier to repair or replace | Require specialized equipment, such as a reflow oven or hot air gun, to remove and replace them |
Reliability | More reliable as they are securely mounted on the circuit board and resistant to environmental factors | Less reliable, but newer technology and manufacturing techniques have improved their reliability |
Space and Weight | Suitable for applications requiring high power and mechanical strength, and prototyping | Better for applications requiring smaller and lighter devices |
This table view points out the swaps. It guides picks by project needs like tough versus small. In real work, rules like industry laws (e.g., RoHS compliance) and growth shape choices more. Expert talk helps a lot.
FAQ
When should through-hole assembly be preferred over surface mount?
Through-hole is ideal for high-power applications, mechanical stress environments, or prototyping where repairability and durability are paramount, such as in industrial machinery or automotive electronics. It handles big loads and fixes easy.
Is surface mount assembly suitable for low-volume production?
Yes, surface mount assembly supports low volumes through automated processes. No MOQ needs from places like PCBA Store make it quick even for samples.
How does PCBA Store ensure quality in both assembly types?
PCBA Store follows IPC-A-610 standards. They use AOI, X-ray, and function tests. This gets over 99.5% good rates in ISO9001-set shops.
Can through-hole and surface mount be combined in one PCB?
Absolutely; hybrid assemblies leverage through-hole for robust components and SMT for dense circuitry. PCBA Store offers this for best plans.
