Printed Circuit Board Assembly (PCBA) sits right at the core of today's electronics making. It joins empty printed circuit boards (PCBs), tiny electronic parts, and careful steps to create working boards set for fitting into gadgets. For makers, sellers, and contract assembly teams, a solid understanding of PCBA—from planning through building and checking—is key to promise steady performance, easy growth, and smart spending.

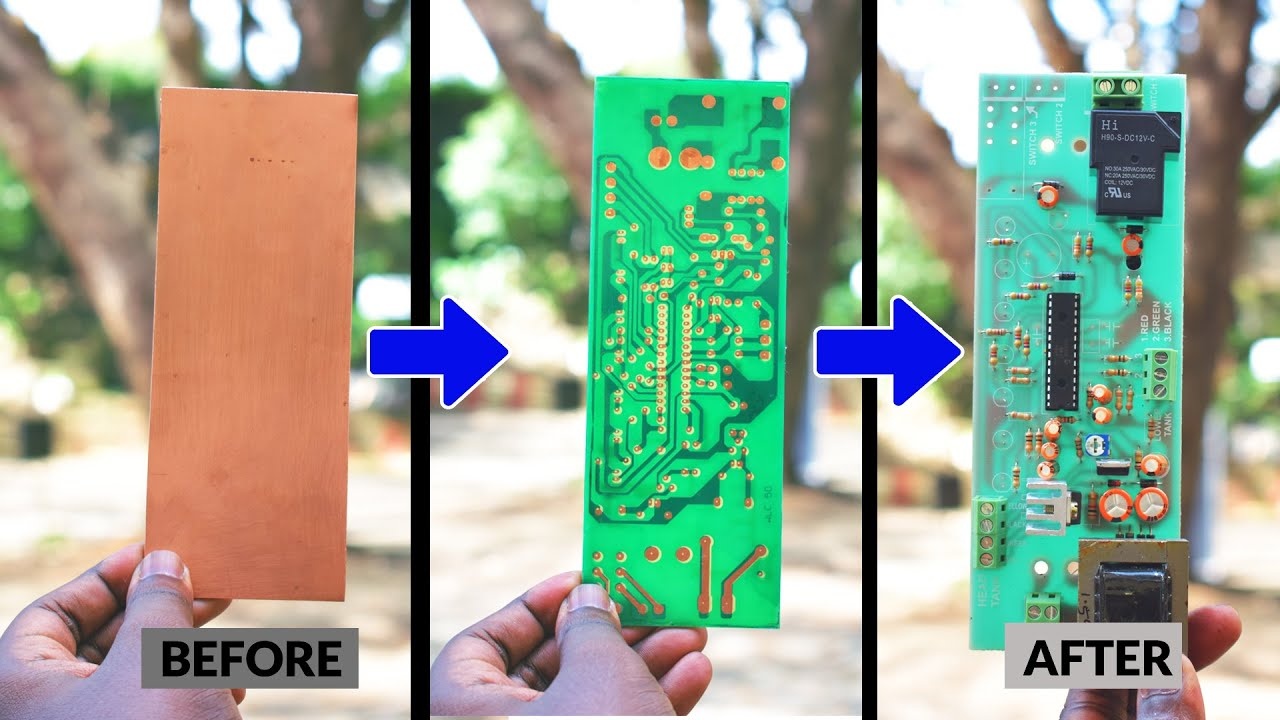

img.What Is PCBA Printed Circuit Board Assembly

What Is PCBA?

PCBA, or Printed Circuit Board Assembly, means the task of filling a plain printed circuit board (PCB) with electronic parts (like resistors, capacitors, transistors, diodes, and integrated circuits). It also builds the last electrical links by soldering or auto-putting. As parts get fixed and soldered, the board turns into a ready unit for use in an electronic item.

A PCB is just the base with carved copper paths that form electrical ways. But a PCBA is that PCB once the parts are added and linked.
In practical words: for a manufacturer, giving PCBA means handing over not only the board base, but the complete, ready-to-fit unit that fits all electrical and mechanical needs.

Difference Between PCB and PCBA

Knowing the gap is crucial when buying or setting manufacturing deals:

PCB (Printed Circuit Board)

The empty or un-filled board made of base (fiberglass/epoxy layers such as FR-4, composite epoxy, or special materials), with carved copper lines and maybe plated through-holes and surface coats.

PCBA (Printed Circuit Board Assembly)

The board after surface mount (SMT), through-hole, or mixed tech parts have been put, soldered, and checked — giving a working board set for fitting.

In brief: a PCB is the blank surface; PCBA is the finished work. For a supplier or manufacturer, the worth and challenge lie in the PCBA part.

Basic Steps of PCBA Design

Before making starts, these design and pre-making steps build a strong base for good results:

Schematic Design

Circuit experts set all part links, wiring, and roles in a schematic program.

Bill of Materials (BOM)

A full list of items with manufacturer part numbers, counts, packing types, and details.

PCB Layout Design

Using CAD programs (such as Altium, Cadence, AutoCAD, or CAM350) the layout sets parts, runs lines, picks layers, power/ground areas, signal strength, and makes fabrication output and placement files.

Simulation and Testing

Before building, simulation programs can check signal, heat, EMI/EMC results and spot possible problems.

Design for Manufacturability (DFM)

Check for easy making and assembly: pad sizes, gaps, stencil openings, part direction, pick-and-place reach, and test point spots.
Bad DFM raises cost, fixes, and loss. Strong PCBA making begins early: the better the plan, the easier the later steps.

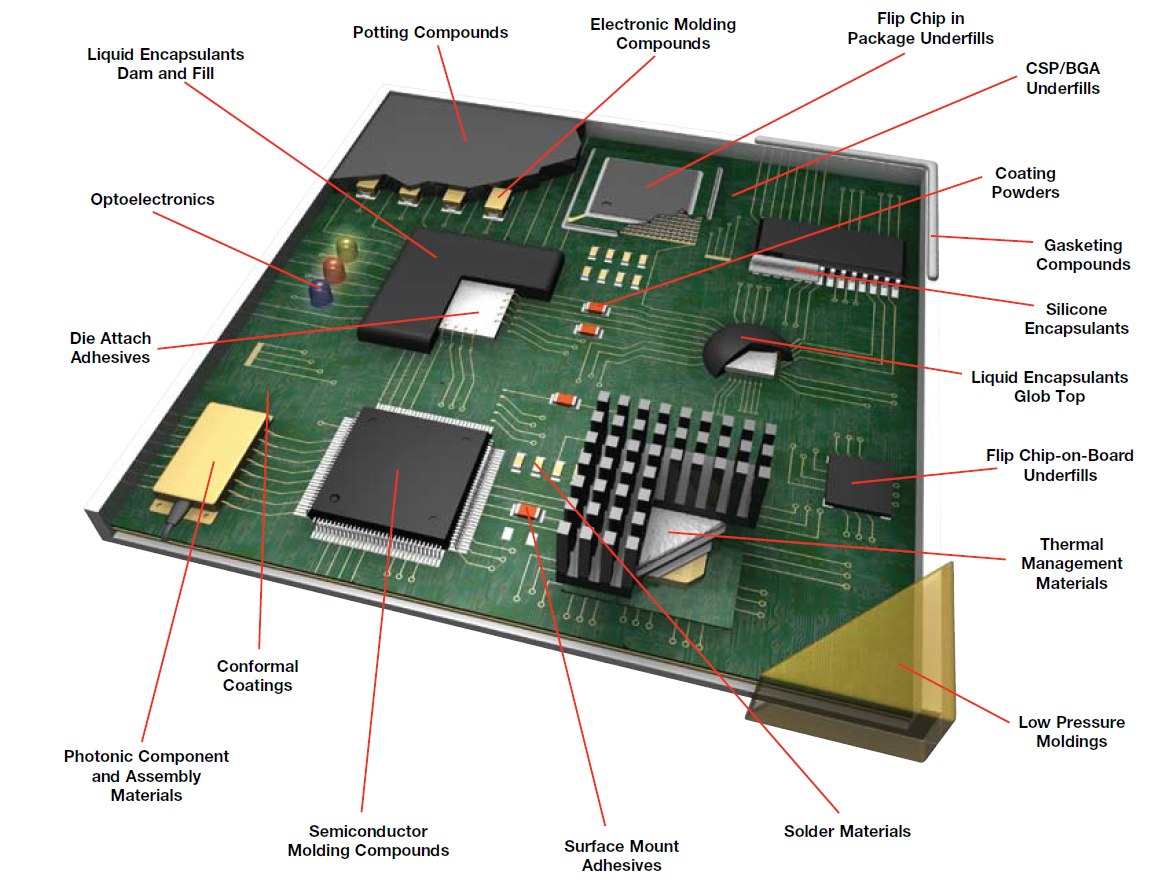

img.best turnkey PCBA Printed Circuit Board Assembly manufacturer factory in China.

PCBA Fabrication Processes

Once plan and buying are set, the PCBA building process goes roughly like this:

PCB Manufacturing

The empty boards get made: picking material (FR-4 / PI / Aluminum / Ceramic / PTFE etc), layering, carving, plating, drilling, surface coat, and board checking.

Solder Paste Application

A stencil puts solder paste (small solder balls + flux) on the PCB pads where parts will stick.

Component Placement

Using auto pick-and-place machines, parts get set on the board in exact spots.

Reflow Soldering / Through-Hole Soldering

For SMT parts, the board goes through a reflow oven – solder paste melts and hardens to form joints. Through-hole parts may be put by hand or machine then wave or selective soldered.

Inspection and Quality Control

Steps like Automated Optical Inspection (AOI), X-ray check (especially for BGAs), flying probe, or ICT (In-Circuit Test) find flaws like solder bridges, wrong positions, opens or shorts.

At the supplier level, for example PCBA Store gives both full turnkey and partial turnkey assembly services including SMT, through-hole, and hybrid tech.

PCBA Testing

Checking is a vital part to make sure the PCBAs meet work and lasting needs:

In-Circuit Testing (ICT)

Confirms single part placement and role; looks for shorts, opens, right value resistances/capacitances.

Functional Testing (FCT)

The built board gets checked in real conditions to prove it does the planned job.

Burn-In Testing / Environmental Testing

Boards may run at high heat, moisture, shake, or voltage stress to catch early breaks and promise long-term strength.

For a manufacturer or supplier, giving strong checking skills adds worth, cuts returns, and backs higher lasting uses (automotive, medical, aerospace).

Benefits of PCBA

For B2B electronics makers and OEM sellers, the PCBA path brings many gains:

Miniaturization: By packing many parts into small layouts via SMT/HDI ways, PCBA allows tinier, lighter items.

Reliability: With right making, checking, and testing, PCBA gives higher quality final goods and longer use time.

Cost-Effective Production: Auto assembly cuts work cost, speeds output, and boosts yield.

Scalability: Whether small-batch samples or big-run rates, PCBA steps can grow well.

Customization: Supplier/contract makers can adjust board builds to fit certain plans, uses, and field needs.

In simple terms, PCBA is the making helper for modern electronics — allowing product standout, faster market reach, and supply chain smoothness for sellers.

Applications of PCBA

PCBA holds a main spot across fields. Key use areas include:

Consumer Electronics: Smartphones, tablets, laptops, and wearable items all rely on PCBA as the basic building piece.

Automotive: Engine control units (ECUs), infotainment systems, ADAS modules, sensor boards depend on tough PCBAs.

Medical Devices: Patient watch systems, imaging tools, implanted items, all need exact PCBA.

Industrial Equipment: Automation, robotics, measuring and control systems use PCBA to give steady electronics in rough settings.

Aerospace & Defense: Avionics, communications, navigation, mission-critical electronics require high lasting PCBA making and checking.

For a supplier aiming at these areas, giving special PCBA services (e.g., high-temperature, conformal coating, rigid-flex, flex boards) is a strong edge.

How to Choose a PCBA Manufacturer / Supplier

Picking the right PCBA provider is a smart choice for any electronics OEM, contract maker, or seller. These points are very useful:

Experience & Expertise: Pick a firm with a clear history in PCBA making and assembly. For example, PCBA Store was started in 2006 and has focused on PCB manufacturing and assembly in Shenzhen since then.

Quality Control & Certifications: High levels in checking (AOI, X-ray, flying probe, functional testing) and delivery steadiness (PCBA Store reports a 95% on-time shipping rate) are vital.

Production Capacity & Flexibility: Can the partner manage your needed amount (prototype to mass making), board tech (rigid, flex, rigid-flex) and material kinds (FR-4, ceramic, etc.)? PCBA Store backs both low-volume prototype down to 1 piece and high-volume runs.

Technology & Equipment: Automation (SMT lines, reflow, wave), placement exactness (fine-pitch, BGA), wide materials – these count. PCBA Store lists SMT, thru-hole, hybrid, single/double sided, lead-free & leaded options.

Customer Support & Transparency: Real-time quoting, engineering check, online order follow and talk matter. PCBA Store gives free engineering file review, online quoting and order tracking.

Cost and Lead-Time: The seller should offer smart-cost answers and bendy lead times. For instance, PCBA Store advertises turn times as short as 8 to 48 hours for PCBA services.

By using these points, a making buyer or contract seller can choose a PCBA partner who matches product, amount, and quality wants.

FAQ

Q1: What is the minimum order quantity for PCBA?
At PCBA Store, the minimum order can be as low as 1 piece for prototypes, though three pieces are suggested for checking.

Q2: What materials and board types can a PCBA supplier handle?
PCBA Store supports rigid and flex boards, mixed tech (SMT + THT), and materials including FR-4, PI, Aluminum, and Ceramic.

Q3: What lead time can be expected for PCBA prototypes or production?
PCBA Store reports turn-times from 8 to 48 hours for fast services (once all components and documentation are ready).

Q4: Are both leaded and lead-free soldering options available?
Yes. PCBA Store offers both leaded and lead-free (RoHS compliant) assembly services.

Q5: How is quality assured on PCBA production?
Quality is promised via engineering file check, AOI/X-ray/flying probe inspection, component buying from trusted sellers and on-time shipping results (PCBA Store reports 95% on-time shipping).
