Rigid-Flex PCBs & Quick-Turn Bending the Rules of Rapid Prototyping

What Are Rigid-Flex PCBs?

Rigid-flex PCBs represent a hybrid circuit board technology that merges rigid FR-4 sections with flexible polyimide substrates in a unified structure. This integration eliminates discrete connectors and cables between rigid and flexible zones, resulting in a streamlined assembly with fewer mechanical interfaces. PCBA Store, a Shenzhen-based PCB manufacturer with 16 years of fabrication expertise, produces rigid-flex boards up to 22 layers in mass production and 24 layers for samples, supporting complex HDI configurations and high-frequency materials like Rogers RO4350B.

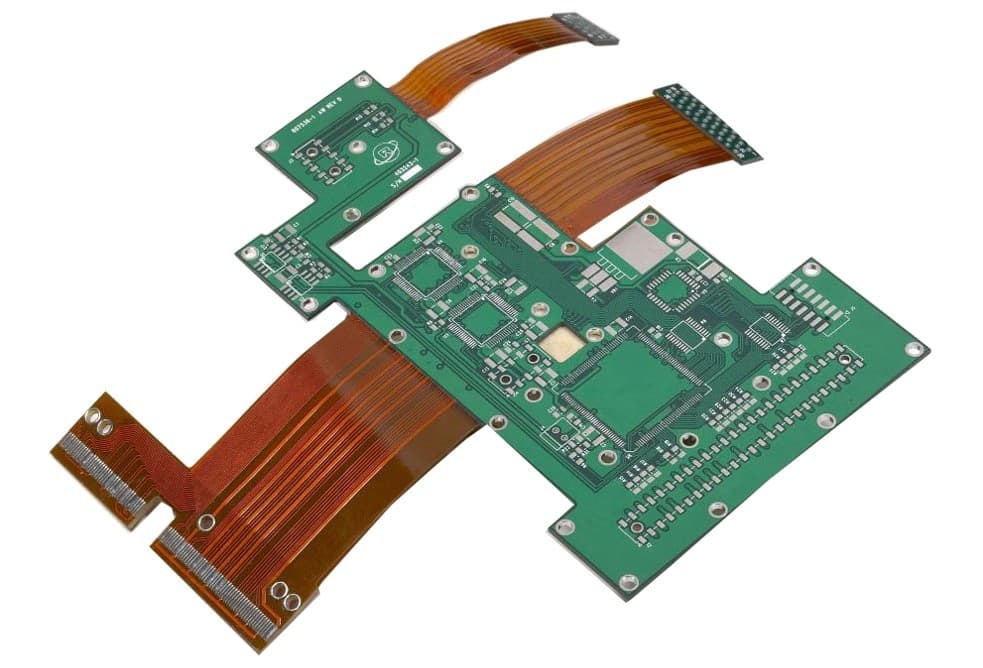

img.Rigid-Flex PCBA Quick-Turn Rapid Prototyping manufacturer

The design incorporates rigid areas for component mounting and flexible regions for bending or folding. Manufacturers achieve this through layered construction using adhesive-less FCCL (flexible copper-clad laminate) with minimum copper thicknesses of 12 μm. PCBA Store’s rigid-flex capabilities include asymmetric structures, bookbinder layouts, and air-gap designs, enabling boards to fit constrained enclosures while maintaining signal integrity across bend zones.

Key Benefits of Rigid-Flex PCBs in Modern Design

Rigid-flex PCBs deliver measurable advantages in space, reliability, and cost for high-density electronics. Key benefits include:

· Space Optimization: Folding flexible sections reduces volumetric footprint by up to 60% versus discrete rigid boards and harnesses. PCBA Store fabricates rigid-flex panels up to 1250 mm × 570 mm, allowing compact packaging in wearables and medical implants.

· Enhanced Reliability: Eliminating solder joints and connectors decreases failure rates by 30% in vibration-intensive environments. IPC Class 3 quality standards at PCBA Store ensure via-in-pad and blind via reliability in HDI rigid-flex stacks.

· Assembly Cost Reduction: Single-board integration cuts labor and component counts by 20-30%. Turnkey PCB assembly services from PCBA Store include free stencils and passive component sourcing, lowering total landed costs.

· Mechanical Versatility: Support for dynamic bending (10,000+ cycles) and static installation suits diverse applications from foldable consumer devices to fixed automotive modules.

These attributes position rigid-flex technology as essential for miniaturization trends in 5G, IoT, and medical electronics sectors.

Dynamic Flex PCBs vs. Static Flex PCBs: What’s the Difference?

Designers select between dynamic and static flex configurations based on mechanical lifecycle requirements.

Dynamic Flex PCBs endure repeated flexing throughout product life. Applications include foldable smartphones and robotic joints. PCBA Store specifies polyimide flex cores under 0.11 mm thickness with 50 μm minimum trace/space in sample runs. Copper traces route in neutral bend axes with staggered lengths to distribute strain. Minimum bend radius reaches 0.5 mm for single-layer flex, validated for 100,000 cycles minimum.

Static Flex PCBs bend once during assembly and remain fixed. Common in camera modules and hearing aids. Thicker flex layers (0.13 mm+) and 10× material thickness bend radius (e.g., 1.3 mm for 0.13 mm core) suffice. PCBA Store reinforces rigid-to-flex transitions with coverlay and stiffeners to prevent delamination under thermal cycling.

Material selection differs: dynamic designs prioritize LCP or thin PI for fatigue resistance; static configurations favor cost-effective FR-4/PI hybrids. Impedance control within ±8% in samples ensures signal performance across both types.

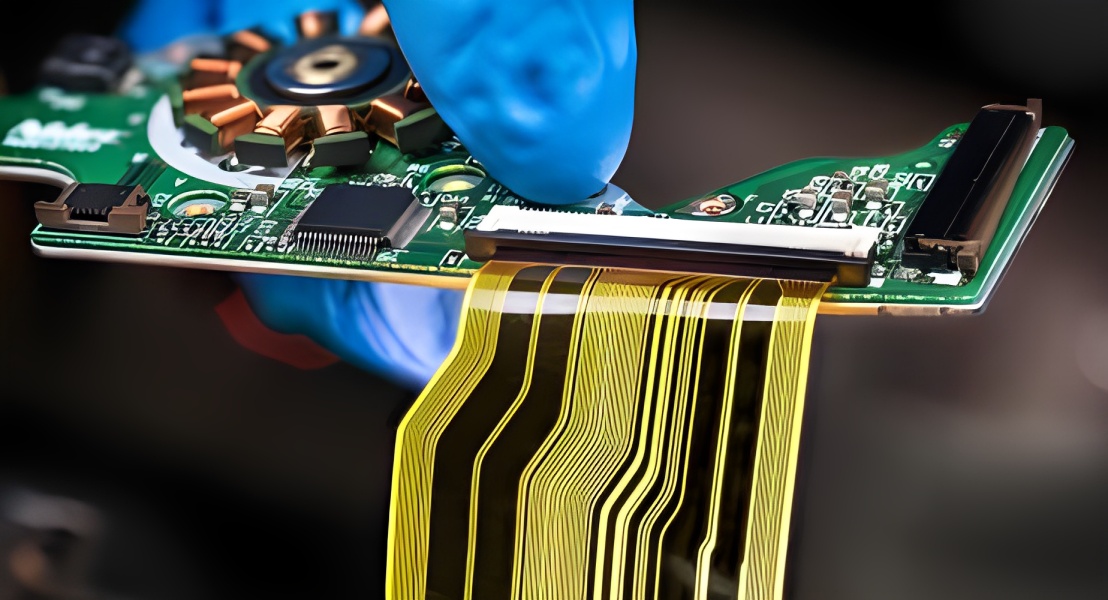

img.Rigid-Flex PCBA Quick-Turn Rapid Prototyping manufacturer supplier factory in China.

PCB Bending: Challenges and Best Practices

PCB bending introduces mechanical stress that risks trace fracture, pad lift-off, and coverlay cracking. Manufacturers mitigate these through controlled parameters.

Bend Radius Control: Dynamic flex maintains radius ≥ 6× flex thickness; static allows ≥ 10×. PCBA Store enforces 0.05 mm minimum laser-drilled vias in flex zones to avoid stress concentration.

Trace Geometry: Perpendicular routing to bend lines with teardrop pads reduces crack propagation. Curved traces in dynamic zones lower strain by 25% versus straight paths.

Material Stack-Up: Adhesive-less FCCL prevents delamination under 150 °C reflow. PCBA Store’s heavy copper rigid-flex (3 oz finished) supports power distribution without flex fatigue.

Transition Reinforcement: Stiffeners and anchor spurs at rigid-flex interfaces distribute shear. X-ray inspection at PCBA Store verifies via plating integrity post-bending.

Adhering to IPC-2223 guidelines during DFM review eliminates 95% of bending-related failures before production.

Quick-Turn Prototyping: Speeding Up Innovation

Quick-turn prototyping compresses PCB fabrication and assembly lead times from weeks to days, accelerating design validation. PCBA Store offers 24-hour express for 2-layer prototypes and 8-hour expedited PCBA, leveraging three-shift operations in Shenzhen.

Benefits include:

· Lead Time Compression: 2-layer rigid-flex prototypes ship in 3-5 days; 4-layer in 4-5 days. Online quote system generates pricing in seconds.

· Iterative Agility: Engineers test three rigid-flex stack variants in under 10 days, optimizing impedance (50 Ω ±10%) and bend durability.

· Cost Efficiency: Early flaw detection avoids 40% rework expenses. No MOQ and free engineering file review minimize prototype spend.

PCBA Store’s ERP integrates Gerber upload, DFM feedback, and order tracking, ensuring transparency throughout quick-turn cycles.

How Rigid-Flex PCBs and Quick-Turn Services Work Together

Rigid-flex complexity—multi-material stacks, blind vias, and controlled impedance—demands rapid prototyping for risk mitigation. Quick-turn services at PCBA Store align with rigid-flex capabilities as follows:

· Layer Stack Validation: 2+C+2 HDI rigid-flex prototypes confirm 0.1 mm laser via alignment in 5 days.

· Bend Performance Testing: Dynamic flex samples undergo 20,000-cycle folding before signal integrity measurement (1 ns skew tolerance).

· Material Compatibility: Rogers RO3003 flex cores pair with FR-4 rigid sections; quick-turn lots verify CTE mismatch under thermal shock.

Online instant quotes factor board size (≤100×100 mm), layers, and assembly options. Turnkey sourcing covers 01005 passives at no extra cost, enabling functional prototypes in one order.

Applications of Rigid-Flex PCBs in Rapid Prototyping

Rigid-flex PCBs enable breakthrough designs across industries:

· Wearables: Smartwatch mainboards use 4-layer dynamic flex to wrap wrists; 48-hour PCBA prototypes validate antenna placement.

· Medical Devices: Endoscope camera modules employ static flex with 0.26 mm total thickness; 3-day rigid-flex samples ensure biocompatibility.

· Automotive: ADAS sensor arrays integrate 6 oz copper rigid-flex for thermal dissipation; quick-turn lots pass AEC-Q100 vibration.

· IoT: Edge AI modules fold 8-layer HDI rigid-flex into 10 mm³; 24-hour prototypes confirm 2.4 GHz Wi-Fi performance.

PCBA Store’s no-MOQ policy supports startup volumes while scaling to 1 million pieces seamlessly.

Tips for Designing Rigid-Flex PCBs for Quick-Turn Prototyping

Optimize rigid-flex files for rapid manufacturing:

· Limit Prototype Layers: 4-6 layers reduce turnaround versus 12-layer final designs.

· Define Flex Zones Explicitly: Mark bend lines and keep-out areas in Gerber; specify coverlay openings.

· Component Placement: Mount BGAs on rigid sections; reserve flex for signal traces only.

· Impedance Planning: Use 50 Ω microstrip in flex with ±10% tolerance; provide stack-up in quote.

· File Package: Include Gerber RS-274X, Excellon drill, BOM, and centroid for turnkey assembly.

PCBA Store’s DFM engineers review files within 4 hours, flagging issues before production launch.

Conclusion: Bending the Rules for Faster Innovation

Rigid-flex PCBs and quick-turn prototyping redefine electronics development velocity. Combining mechanical adaptability with 24-hour fabrication cycles, manufacturers like PCBA Store empower engineers to iterate complex folding architectures in days, not months. From dynamic wearables enduring 100,000 bends to static medical implants fitting sub-millimeter cavities, this synergy accelerates market entry while upholding IPC Class 3 reliability.

Shenzhen’s manufacturing ecosystem—bolstered by PCBA Store’s 300+ workforce, Yamaha SMT lines, and in-house X-ray/AOI—guarantees quality at speed. Online platforms eliminate broker markups, delivering factory-direct pricing and transparency.

FAQ

Q: What is the minimum bend radius for dynamic rigid-flex PCBs at PCBA Store?
A: 0.5 mm for single-layer flex; 6× flex thickness recommended for multi-layer dynamic designs.

Q: How fast can PCBA Store deliver rigid-flex prototypes?

A: 3-5 days for 2-6 layer rigid-flex fabrication; 8-hour expedited PCBA available.

Q: Are passive components free in turnkey rigid-flex assembly?

A: Yes, 0201/0402/0603 resistors and capacitors from in-stock inventory are provided at no charge.

Q: Does PCBA Store support HDI in rigid-flex prototypes?

A: Yes, 2+C+2 structures with 0.1 mm laser microvias are standard in quick-turn runs.

Q: What file formats are required for rigid-flex quotes?

A: Gerber RS-274X, Excellon drill, BOM (XLS/CSV), and centroid (pick-and-place) files.
