How Surface Mount Technology (SMT) is Transforming Modern Electronics
PCBA Store / 2025-11-21
Contents [hide]
Surface Mount Technology (SMT) first appeared in the early 1980s as a groundbreaking way in electronics production. Unlike the old Through-Hole Technology (THT), which needs pushing component leads into drilled holes on a printed circuit board (PCB), SMT puts Surface Mount Devices (SMDs) straight onto the board's top layer. This change brings much better efficiency, less weight, and cheaper making costs. It soon made SMT the main choice in the field.

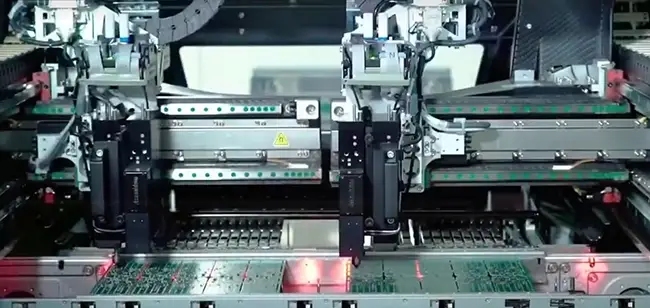

img.top PCBA Surface Mount Technology (SMT) manufacturer in China
Now, needs for tinier, lighter, and stronger electronic gadgets push wide use of SMT. The method allows tighter packing of parts in small areas. It also speeds up building with machines. Plus, it works well for big output runs. Uses cover consumer gadgets, medical tools, car systems, and factory gear. PCBA Store, a top PCB assembly manufacturer and supplier, offers cutting-edge SMT answers as a full-service spot for sample and large-scale making.
This full guide looks into SMT basics, its importance, benefits, building steps, usual joining methods, and matches with THT. It also shows how trusted makers like PCBA Store give dependable, top-notch SMT help with modern setups.
Surface Mount Technology (SMT)
What Is Surface Mount Technology?
Surface Mount Technology (SMT) means fixing electronic parts right onto the top of a PCB. These parts, known as Surface Mount Devices (SMDs), skip the need for leads going through holes. On the other hand, THT depends on hand or part-machine pushing. This raises time, mistakes, and expenses.
SMT works as a complete machine-run process. It uses pick-and-place tools for exact part setting. This machine help boosts quality. It cuts worker needs. And it aids growth. Mixed boards often mix SMT and THT. Some strong-power parts like transformers or DC-DC converters stay unfit for top mounting. Reasons include size and heat spread needs.
As a leading PCB assembly supplier, PCBA Store adds SMT into its complete services. It manages all from PCB making to end building in ISO-approved plants.
Common SMD Component Packages
SMDs include resistors, capacitors, inductors, diodes, and integrated circuits (ICs). They come in standard packs made for machine work and tight fit.
Resistor, Inductor, Capacitor, and Diode Packages
Package Type | Size in mm | Description |
0201 | 0.6 x 0.3 | Super-small; perfect for RF modules and wearables |
0402 | 1.0 x 0.5 | Usual in smartphones and IoT sensors |
0603 | 1.5 x 0.8 | Found in audio gear and automotive ECUs |
0805 | 2.0 x 1.3 | Good for factory controls and power supplies |
1206 | 3.0 x 1.5 | Used in strong-power paths and LED drivers |
Integrated Circuit (IC) Packages
Package Type | Description |
DIP | Dual In-Line Package; mostly for testing and old systems |
SOP | Small Outline Package; small for user gadgets |
TSOP | Thin Small Outline Package; often in memory chips |
QFP | Quad Flat Package; boosts pin count for hard ICs |
QFN | Quad Flat No Leads; liked in mobile and factory uses |
Ball Grid Array; key for processors and GPUs | |
LQFP | Low Profile Quad Flat Package; common in microcontroller plans |
TQFP | Thin Quad Flat Package; suits tight-space tools |
SOIC | Small Outline Integrated Circuit; works for voltage controls |
TSSOP | Thin Shrink Small Outline Package; usual in handheld electronics |
PBGA | Plastic Ball Grid Array; applied in fast computing |
PCBA Store keeps thousands of real SMDs in its smart storage. This ensures tracking and ready supply for quick samples.
When To Use Surface Mount Technology
Current electronics focus on shrinking and smart features. This pushes creators to fit more into tiny PCB space. SMT handles this by allowing many parts close together. It helps make small designs in smartphones, laptops, and health wearables.
Machine pick-and-place setups aid big-number SMT building. This makes the way cheap for huge output. SMDs' tiny sizes support fast-wave work with little extra effects. Fields like space, military, telecom, and cars depend on SMT for sturdy, light builds.
PCBA Store, as a skilled PCB assembly factory, suggests SMT for jobs with over 100 components per board or work waves above 100 MHz. The firm's skills cover managing 01005 components and BGAs with 0.4mm pitch.

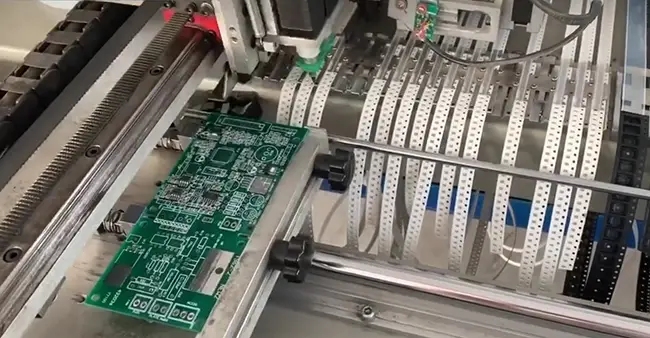

img.Surface Mount Technology (SMT) PCBA manufacturer in China.
Advantages of Surface Mount Technology
SMT beats THT in many measures. This drives its pick in today's PCB making.
· Dual-Sided Assembly: Parts go on both PCB sides. This makes best use of space for complex plans.
· Higher Density: Tiny SMDs let up to 10 times more parts per spot than THT.
· Automation Efficiency: Pick-and-place tools reach setting speeds over 100,000 components per hour. They cut mistakes and allow fast flow.
· Improved Signal Performance: Shorter paths lower inductance, capacitance, and interference. This fits RF and quick digital paths.
· Cost Reduction: Less stuff use, machine steps, and big-run savings drop unit prices in large making.
· Weight Savings: Lighter builds help movable and flying uses.
PCBA Store uses these gains with top lines for up to 0201 components and small-pitch BGAs. It gives success rates over 99.9%.
Surface Mount Technology Assembly Process
SMT building follows a clear order to keep accuracy and trust.
1. Solder Paste Application: A steel stencil puts solder paste on PCB pads by machine printing. Thickness and stencil match ensure even layers.
2. Component Placement: Fast pick-and-place tools with sight systems set SMDs right. They handle up to 150,000 CPH at PCBA Store sites.
3. Reflow Soldering: The board goes into a many-zone reflow oven. Steps cover preheat (to start flux), heat hold (for even warmth), reflow (top heats 235–260°C), and cooling to set joints.
4. Inspection: Machine Optical Inspection (AOI), X-ray for hidden spots, and work tests find issues like links or tilting.
5. Cleaning and Finalization: Sound or water cleaning clears flux bits. Then add protective coat if needed.
PCBA Store's steps follow IPC-A-610 Class 2/3 rules. It has live tracking for records.
Soldering Techniques Employed in PCB Assembly
1. Wave Soldering Mainly for THT, wave soldering moves boards over liquid solder waves. Steps include flux put-on, pre-warm, solder touch, and cool. Less good for SMT due to shade issues and more flaw risks.
2. Reflow Soldering The usual for SMT, reflow gives controlled melt: · Preheat: Slow rise to 150°C. · Soak: Holds temps steady. · Reflow: Tops to melt solder. · Cooling: Stops heat shock.
PCBA Store uses nitrogen-reflow for clear BGA joints.
Surface Mount Technology VS. Through Hole Technology
Aspect | Surface Mount Technology (SMT) | Through Hole Technology (THT) |
Technique | Direct surface mounting | Lead insertion through holes |
Assembly Process | Fully automated with pick-and-place | Manual or wave soldering |
Component Placement | Both PCB sides | Single side primarily |
Board Volume | High density (thousands of components) | Lower density |
Mechanical Stress | Moderate bonds; vibration-sensitive | Stronger mechanical connections |
Components Suitability | SMDs for most passive/active parts | Bulky high-power devices |
Cost | Higher setup; lower per-unit in volume | Lower setup; higher labor costs |
Repair and Reworks | Challenging due to small size | Easier desoldering |
SMT leads 90% of current builds, per field reports.
Conclusion
Surface Mount Technology (SMT) changes electronics by allowing tight, effective, and strong builds. As a key helper for shrinking and machine work, SMT backs new ideas in many areas. Makers like PCBA Store offer full SMT skills, from quick online prices to approved output. This ensures jobs hit times and quality marks.
FAQ
What is the smallest SMD package supported in SMT? 0201 (0.6 x 0.3 mm) and 01005 components are commonly handled in advanced SMT lines. How does SMT improve high-frequency performance? Reduced lead lengths minimize parasitic inductance and capacitance, lowering signal distortion. Can SMT and THT coexist on one PCB? Yes, mixed-technology boards use SMT for density and THT for power components. What is the typical SMT assembly turnaround time? Prototypes achieve 24–48 hours; volume production scales accordingly. Why choose reflow over wave soldering for SMT? Reflow offers precise temperature control, lower defects, and compatibility with fine-pitch parts.
