What is A Solder Mask Layer?

What is A Solder Mask Layer

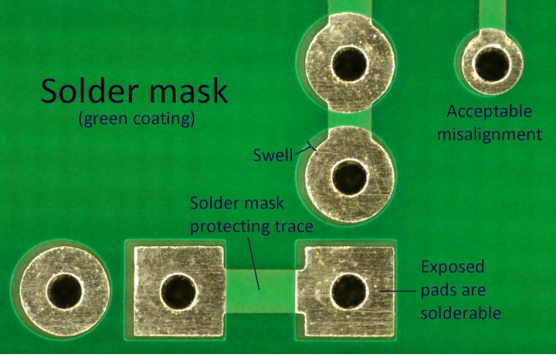

A solder mask, or solder resist, is a nifty protective coat slapped onto printed circuit boards during making. This cool ink-like layer stops solder from sticking where it’s not supposed to. After parts are popped on, the mask gets brushed or sprayed on. It covers all the no-solder spots, like gaps between metal lines and pads or inner layers. By blocking solder flow, it makes sure electric connections are neat and tidy during wave or reflow soldering.

Solder Mask Materials

Solder masks are usually made from tough stuff like epoxy, polyimide, or acrylic. Epoxy masks are super common. They’re great at fighting off chemicals and heat, plus they stick well. Polyimide masks are extra tough for hot jobs, like in planes or army gear. Acrylic masks are cheaper but not as strong, so they’re less durable.

Solder Mask Colors

Solder masks are mostly green, which makes the board’s shiny bits easy to see. But you can pick red, blue, black, or white too. Green’s the fave because it stands out against the PCB’s usual look.

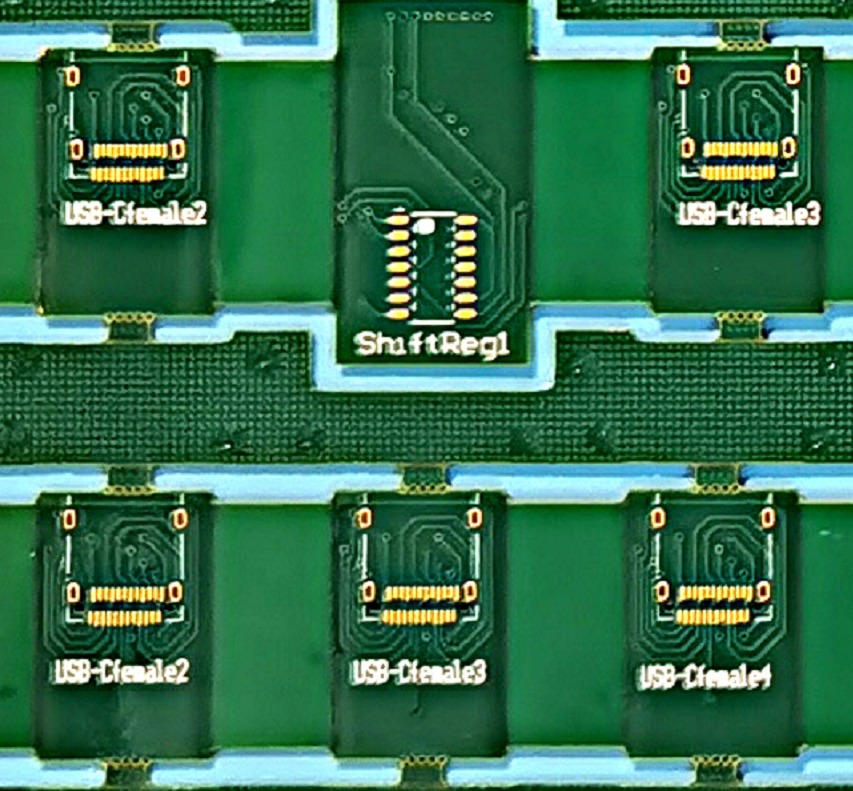

Why Use Solder Masks on PCB Boards?

Solder masks are super cool for protecting printed circuit boards (PCBs). They do a bunch of awesome stuff:

· Insulation: Keeps electric zaps from jumping between close traces or pads. This makes the board way more trusty.

· Component Placement: Shows where pads go for parts, helping robots put stuff on right.

· Solderability: Stops copper traces and pads from rusting. It makes solder stick better for strong connections.

· Contamination Protection: Shields the board from dust, dirt, and yucky stuff. This helps it last longer.

· Aesthetics: Looks neat in green or other colors. It marks solder and no-solder zones for easy checking.

Types of Solder Mask Layers

Epoxy Liquid

Epoxy liquid is a zippy, light-sensitive goo used as a solder mask. It’s got epoxy resin and a photo-starter mixed in a solvent.
Pros:

· Super trusty, guards against messes, and covers tricky shapes evenly.
Cons:

· Kinda pricey for materials and setup.

LPSM/LPI

LPSM (Liquid Photo-imageable Solder Mask) uses a photo-ready liquid polymer (LPI) for the mask layer.
Pros:

· Sticks tight to the PCB and fights heat and chemicals like a champ.
Cons:

· Needs super clean rooms for the photo process.

DFSM

DFSM (Dry Film Solder Mask) is a dry, photo-sensitive sheet for the mask layer.
Pros:

· No messy solvents, even thickness, and easy to handle.
Cons:

· Tough to coat weird-shaped boards evenly.

Other Terminology You Should Know About Solder Mask

Tented Vias

Tented Vias is when the solder mask covers up holes or vias on a PCB.

Solder Mask Clearance

Solder Mask Clearance is the tiny space left between solder pad edges and the mask material.

Solder Mask Opening

This is where solder goes and parts get stuck on. It’s the spot with no solder mask.

Solder Mask Expansion

Solder Mask Expansion means stretching the mask a bit past the pad or circuit edges.

What Solder Mask Should You Use on Circuit Boards?

When picking a solder mask for your board:

· Chemical Resistance: It’s gotta stand up to soldering and assembly chemicals.

· Adhesion: The mask needs to stick super tight to the board and copper traces. No peeling or bubbling allowed!

· Dielectric Strength: Key for insulation. Numbers above 3 are good.

· Colorfastness: The color shouldn’t fade from heat, wet, or sun over time.

Solder Mask Design Guidelines

· Leave Gaps Between Pads/Components: Keep a small space between the mask and parts or pads. This stops oopsies.

· Avoid Anneal Lines: Don’t put the mask over anneal lines on the PCB.

· Use Rounded Edges: Sharp corners might crack.

· Maintain Thickness Consistency: Aim for 25–35 microns thick.

How is Solder Mask Applied on PCB?

Step 1: Surface Preparation

The PCB gets a bath to zap grease off the copper. Then it’s etched with sulfuric acid and rinsed clean.

Step 2: Apply the Solder Mask (Lamination and Screen Printing)

For screen printing, liquid mask gets poured on a screen. It spreads over a few passes.
For lamination, a dry film gets stuck on and run through a hot laminator.

Step 3: Drying/Curing

Screen-printed masks go into conveyor dryers to zap solvents without bubbles. Dry films get zapped with UV lamps.

Step 4: Inspection

Fancy machines (Automated Optical Inspection, or AOI) peek at the board for any goof-ups or flaws.

Step 5: Drill Mask If Required

Sometimes, a drill mask covers up plated through-hole (PTH) drill spots after the main coat.

Step 6: Marking/Finishing

Logos or marks might get printed on. Finishes like tin-lead plating can go on before packing up.

IPC Standards for Solder Mask on PCB

Standards are:

· IPC-SM-840: Sets rules for liquid photo-imageable solder mask stuff.

· IPC-SM-781: Covers electric and physical tests for masks.

· IPC-SF-818: Gives guidelines for mask terms and short forms.

· IPC-1791: Sets best mask expansion sizes based on board design rules.

Common Solder Mask Defects and Their Causes

Solder Bridging

Happens when solder sneaks between close contacts, causing a short.

Pinholes

Tiny holes that show copper underneath. Caused by dirt or bad curing.

Peeling/Delamination

When the mask peels off the board. Usually from bad prep or wrong materials.

Missing Solder Mask

Spots where the mask is totally gone, leaving copper naked. Often from clogged stencils.
