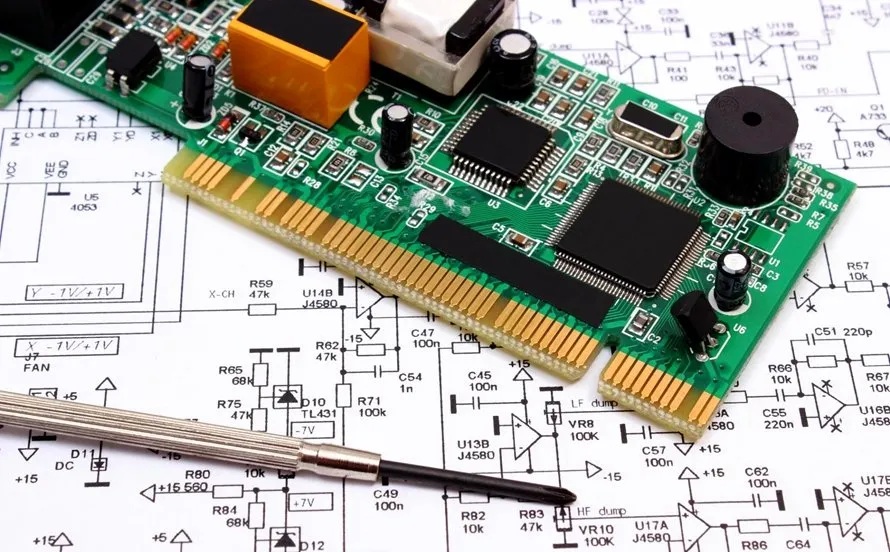

What Is Prototype PCB Assembly

Prototype PCB assembly plays a vital role in speeding up electronics product creation by giving a real-world check on designs and spotting problems early. It involves putting together a small batch of printed circuit boards (PCBs) to test and confirm a design before making lots of them. This step lets engineers check how the board works, find mistakes, and make sure it can be built properly.

By combining the making of the board and the attaching of parts based on the bill of materials (BOM), prototype PCB assembly turns digital plans into real, testable devices. It acts as a key link between an idea and selling a product in the electronics world.

What is PCB Prototype?

A printed circuit board prototype is the first model of a PCB design, built to test an idea and see if it works. As a super important part of creating electronics, making a prototype PCB gives the first solid version of the circuit plans to look at how it functions, check signal quality, and see if it can be made in bulk.

This process doesn’t just mean creating the empty board. It also includes adding parts to mimic how it will work in real life. Basically, PCB prototype assembly helps developers and engineers turn electronic ideas into real boards with parts attached to them.

Why Use Prototype PCB Assembly?

Early Detection of Design Flaws

The main aim of making prototype boards is to test how electronic designs work and perform in reality. This helps catch layout errors, wrong parts, or heat issues before spending money on big production runs.

Cost-Efficiency in Product Development

This checking step lowers risks before starting large-scale making. Fixing things during prototyping costs way less than changing stuff after tools are set or full production starts. The feedback from prototyping cuts down on extra work later.

Enhancing Product Functionality and Performance Validation

Prototypes let you do deep testing, like checking signal quality, measuring power use, looking at heat levels, and testing firmware. They quickly turn ideas into working boards, helping to confirm concepts, verify performance, and tweak designs.

Accelerating Time-to-Market

By finding issues early and checking designs, good PCB prototype assembly shortens development time a lot. Some studies in the industry say prototyping can save more than 60% of engineering time.

Types of Prototype PCB Assembly

Single-Sided vs. Double-Sided Prototypes

How parts are placed and attached on a PCB depends a lot on the design. It can be a simple single-sided prototype PCB assembly or a trickier double-sided one, where parts are attached on both sides. Double-sided prototypes work well for packing in more parts.

Through-Hole vs. Surface Mount Technology (SMT)

Through-hole parts have pins that go through holes in the board, while SMT or surface-mount parts are attached straight onto pads on the surface. Many modern prototypes mix both methods depending on the type of parts used.

Rigid, Flexible, and Rigid-Flex Prototypes

Based on what they’re used for—like wearables or car sensors—prototypes can be made with stiff FR4 materials or bendy polyimide films. Our products include 2-40 layers Rigid PCB, 1-8 layers Flexible PCB, and Rigid-Flex PCB.

Low-Volume vs. High-Mix Prototyping

Low-volume runs mean making just a few units for early testing. High-mix prototyping means creating different versions to compare them. Skilled prototype PCB assembly partners provide many trusted ways to build, from basic hand assembly to high-tech automated mixed production.

Prototype PCB Assembly Process Steps

The expert way of assembling prototype PCBs usually follows set steps:

· SMT Pick-and-Place Stage: Machines place parts exactly where they need to go.

· Reflow Soldering: Boards pass through hot ovens to bond parts.

· Cleaning/Washing: Leftover mess from soldering is cleaned off.

· AOI & Functional Testing: Eyes and tools check if everything works right.

· Final Programming/Flashing: Software is added to make it fully ready.

Every step makes sure the quality is top-notch before handing it over.

Factors Affecting Lead Time & Cost

Complexity of the PCB Design

The trickiness of placing parts adds to the effort and price of assembly. Tougher designs take more time to set up.

Number of Layers and Board Size

Boards with more layers need extra steps in making, which raises both the cost and the time it takes.

Component Availability and Substitution Options

Parts that are hard to find nearby mean waiting longer to get them. Engineers should try to pick parts that are easy to get when they can.

Assembly Techniques Required (SMT, THT, Mixed)

Mixed builds with tricky stuff like BGA or fine-pitch QFN packages need special tools, like X-ray checks, which bump up the cost.

Turnaround Time Expectations

Fast services, like 24-hour express builds, cost more but cut down delays in launching products. PCB Fab with 24 hours express; PCB Assy with 12 hours express.

Finding A Good Prototype Assembly Partner

Key Qualities to Look For in an Assembly Service Provider

Technical Capabilities and Certifications

We have a skilled PCB layout team. They are great with tools like Allegro and POWER PCB. Pick partners with solid know-how across many systems.

Quality Assurance Standards

Check for IPC Class 2/3 standards and AOI/X-ray testing skills. Over 99.5% Qualified Rate; Under 0.2% Complaint Rate.

Communication and Support Services

Quick and helpful customer service fixes issues fast during repeated changes. Customer service is super patient and gives me great engineering tips.

Flexibility for Iterative Changes

Prototyping often needs tweaks along the way. Partners should handle changes without slowing things down.

Pricing Transparency

Partners need to give clear pricing that matches the market and explain what parts of the service affect the cost.

Questions to Ask Before Partnering

· What’s your usual wait time for prototypes?

· Can you work with fine-pitch BGA/QFN parts?

· Do you offer partial turnkey services?

· Are there sneaky fees for setup or stencils?

Summary - Importance of Prototype PCB Assembly

Prototype PCB assembly is super important for checking how things work. It turns design files into real boards with parts attached just right. It helps lower risks, boost design quality, confirm performance, speed up getting to market, and gain trust from investors or stakeholders.

FAQ

Q: How long does it take to build a prototype?
A: Depending on how tricky it is, wait times can be 5 days to 4 weeks.

Q: Can I order just one board?
A: Yes. Our minimum is as low as 1 piece.

Q: What files do I need to provide?
A: Gerber files, BOM list, pick-and-place file (XYRS), centroid file if you have it.

Q: Do you offer RoHS-compliant lead-free options?
A: Yes—we do both leaded and lead-free soldering.

Ready to Start Your PCB Projects: Choosing PCBAStore for Long-Term Success

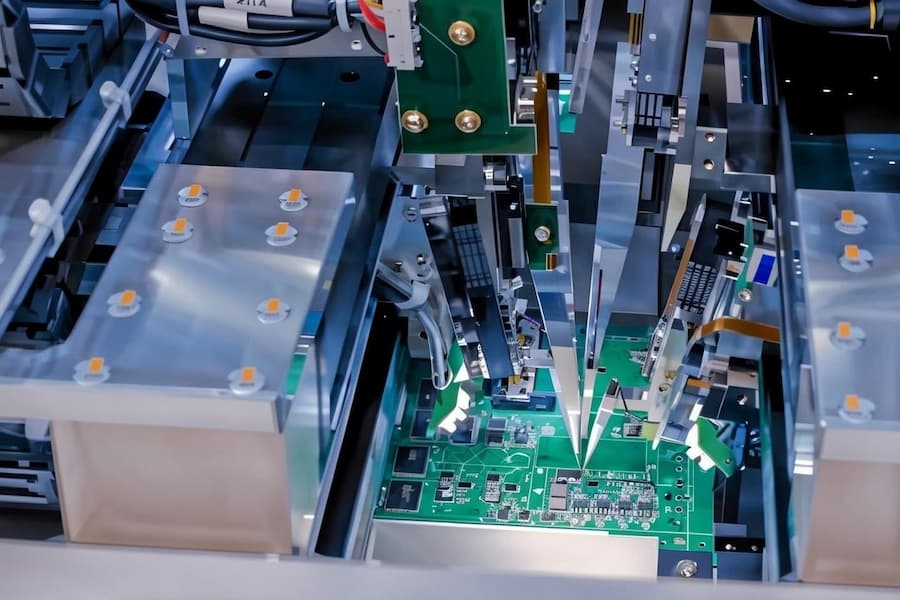

For businesses looking for trusty prototyping services that mix speed, accuracy, low cost, and most of all, great quality, PCBAStore has fast PCB prototyping for quick-turn PCBs at top quality and cheap prices. This not only gets your PCBs done fast but also right. With over 16 years in making boards and 8 years in PCBA know-how, we’ve been giving full-range electronic making solutions for 16 years. From getting real brand-name parts to doing full builds, we step in and connect by offering solid making solutions. Contact PCBAStore as your key partner for winning with new ideas.
