7 Step Process to Evaluate a PCB Assembly Manufacturer for Your Needs

What Is PCB Assembly

Printed Circuit Board (PCB) assembly is a vital step in making electronics. It involves placing electronic parts on a plain board to create working circuits. This process turns a basic board into the core of modern devices. It helps them work smoothly.

Key Components Involved in PCB Assembly

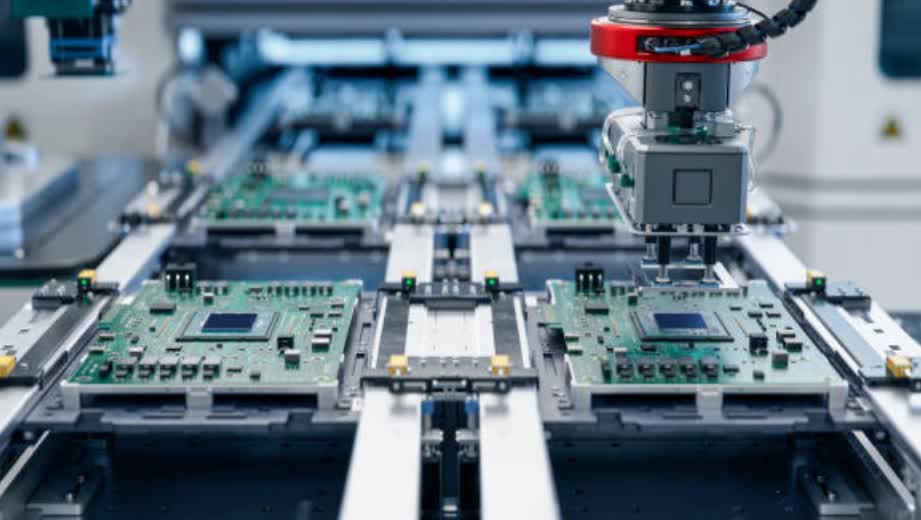

PCB assembly uses two main methods: surface-mount technology (SMT) and through-hole manufacturing. Surface-mount technology is common for most PCBs. In this method, parts are placed directly on the board’s surface. This allows for smaller designs with more connections. SMT is usually quicker and cheaper than the other method.

Through-hole manufacturing places parts into holes drilled in the board. They are soldered to pads on the opposite side. This method takes more time and costs more. However, it creates a stronger bond between parts and the board. It is great for products needing strength under physical or environmental stress.

The Importance of Precision in PCB Manufacturing

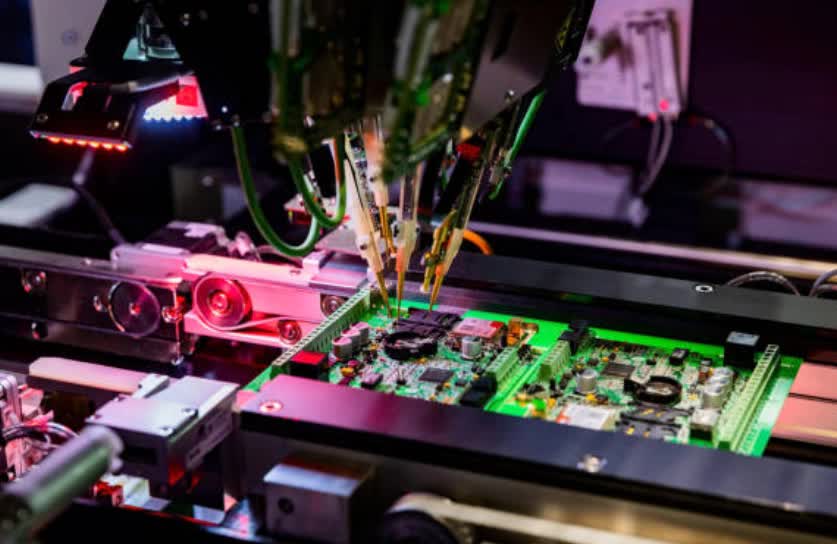

Accuracy is crucial in PCB assembly. Even tiny mistakes can harm how the product works. Top-notch tools, trained workers, and strict testing ensure every part is placed and soldered correctly. This careful work boosts product dependability. It also reduces costly fixes or failures.

Steps to Select the Right PCB Assembly Manufacturer

Choosing a PCB assembly manufacturer needs careful thought. You want to ensure they meet your project’s needs. Here are key steps to consider:

Following an Appropriate Timeline

Hurrying the selection process can waste time and money. Take enough time to check what each company offers before deciding. However, avoid companies that are slow to respond or delay giving quotes. A good company matches your schedule while staying efficient.

Considering Experience

Experience is important in judging a manufacturer’s ability. Look for details like their skills in surface-mount technology or through-hole manufacturing. Check the batch sizes they handle, industries they serve, and extra services they provide.

Also, ask how long they’ve been in business. Find out about their team’s combined expertise. A well-known company often shows dependability and knowledge.

Evaluating Quality

Checking quality before getting finished products is hard but necessary. Consider these points:

· Equipment: Companies with modern machines likely produce better results.

· Certifications: Certifications like ISO 9001:2015 show strong quality systems.

· Client Feedback: Look for reviews from past clients or ask for references to measure satisfaction.

Testing prototypes or small batches first can also help check quality before larger orders.

Exploring Testing Options

Testing ensures products work well and are reliable. Thorough testing includes visual checks, automated optical inspections (AOI), part-level tests, and in-circuit checks. Manufacturers offering custom testing plans show flexibility. They are committed to meeting your project’s unique needs.

Asking About Customer Support

Great customer support is as important as technical skills. A responsive company quickly handles concerns. They help with troubleshooting and offer tailored solutions. Check their support by talking to representatives. Review online testimonials, too.

Manufacturers should also be flexible. They should adjust assembly methods or testing based on your project’s needs.

Comparing Costs

Cost involves several factors:

· Order Size: Large orders may lower per-unit costs.

· Services Requested: Extra services like design help or part sourcing raise costs.

· Resources Provided: Supplying your own parts can save money.

· Labor Costs: Complex projects cost more in labor.

· Shipping Costs: Nearby companies may have lower shipping fees.

Cost shouldn’t be the only factor. It should be part of a value check. Compare quotes from different manufacturers. Ensure they fit your budget without lowering quality.

Watching for Red Flags

Some warning signs show potential problems:

· Unresponsiveness: Hard-to-reach companies suggest poor service.

· Limited Flexibility: Rigid manufacturers may struggle with unique project needs.

· Long Timelines: Delays without good reasons can slow progress.

· Lack of References: A trusted company should easily provide client references or certifications.

· High Costs: Unfairly high prices suggest poor value.

Spotting these red flags early helps avoid unsuitable manufacturers.

Selecting the right PCB assembly manufacturer balances timelines, experience, quality checks, customer support, cost savings, and caution against issues. These steps ensure your project gets expert care. They also improve results for function and profit.

What to Expect When Working With a PCB Assembly Company

By the time you reach the assembly phase, you’ve spent much time and effort on your PCB project. You want this key step to honor your product. If you’re outsourcing assembly, picking the right partner is vital. With so many options, this choice can be tough. How do you find the best PCB assembly company for your project’s needs?

Project Discussion

The first step after choosing a PCB assembly partner is discussing project details. This stage is key for finding the best methods, parts, tools, and processes for your project. It also clears up any remaining questions before production starts. A dependable company takes time to understand your goals. They share insights on how to meet them well.

Providing Resources and Getting Started

Once project details are set, provide needed resources. If you agreed to supply design files, PCB parts, or other materials, this is the time to share them. Then, the assembly company can start production. This phase begins turning your ideas into real products.

Staying in Contact

Communication is crucial during PCB assembly. The company should give regular updates on progress while assembling your boards. If problems come up or changes are needed, they should ask for your input quickly. A proactive approach keeps both sides aligned throughout the process.

Receiving Your Final Product

When production is done, the company will inform you. They will deliver your order as agreed. The final product must meet all details discussed at the start. High-quality results show a manufacturer’s focus on excellence and customer happiness.

Customer Support and Check-Ins

After getting your PCBs, customer support is important. The assembly company should follow up to ensure their work meets your expectations. They should help with any issues after delivery. They may also check in later to confirm satisfaction and ask about future projects.

PCBAStore — Your Nearest PCB & PCBA Store

When looking for a trusted PCB assembly manufacturer, closeness often helps with logistics and communication. PCBAStore offers a wide range of services tailored to various industry needs.

Expertise Across Techniques

PCBAStore excels in both surface-mount technology (SMT) and through-hole manufacturing. SMT allows for small designs with more connections. It is faster and cheaper. Through-hole manufacturing creates stronger bonds between parts and boards. It is ideal for products needing strength under stress.

Quality Assurance

Quality is a top focus at PCBAStore. Modern equipment ensures accuracy in every project. Certifications like ISO 9001:2015 prove their strong quality systems. Client reviews also show their dependability and commitment to excellence.

Comprehensive Testing Services

PCBAStore offers thorough testing methods. These include automated optical inspections (AOI), part-level tests, and in-circuit checks. These steps ensure every product is functional and reliable.

Exceptional Customer Support

Customer happiness is a priority at PCBAStore. Their team quickly addresses concerns. They help with troubleshooting and offer tailored solutions for unique project needs.

Cost-Effectiveness

PCBAStore offers fair pricing. They consider order size, requested services, provided resources, labor costs, and shipping fees. This ensures value without lowering quality.

By choosing PCBAStore as your PCB assembly partner, you gain access to expert skills, strict quality checks, thorough testing, great customer support, and affordable rates tailored to your project’s needs.

FAQ

What is the difference between surface-mount technology and through-hole manufacturing?

Surface-mount technology places parts directly on the board’s surface. It allows for smaller designs and is faster and cheaper. Through-hole manufacturing puts parts into drilled holes and solders them on the other side. It creates stronger bonds but takes more time and costs more.

Why is precision important in PCB assembly?

Accuracy is key because small errors can harm how the product works. Precise placement and soldering improve dependability and reduce costly fixes or failures.

How can I evaluate a manufacturer’s quality?

Check their equipment, certifications like ISO 9001:2015, and client reviews. Testing prototypes or small batches can also show their quality before larger orders.

What testing methods should a PCB assembly manufacturer offer?

They should provide visual checks, automated optical inspections (AOI), part-level tests, and in-circuit verification to ensure products work well and are reliable.

Why is customer support important when choosing a PCB assembly manufacturer?

Great support ensures quick help with concerns, troubleshooting, and tailored solutions. It keeps your project on track and meets your needs.
