Overview of PCBA Manufacturing: What's PCB Assembly

PCB Design Basics

Before diving into PCB assembly details, it’s important to understand the main parts of PCB design. A PCB base is typically made of strong FR-4 fiberglass. This base is the foundation. Copper paths are etched onto it. These paths work like wires. They connect different points on the board electrically. Pads provide flat metal spots. Component ends or solder balls attach to these pads. As a result, electronic parts like resistors, capacitors, and transistors can be secured.

Plated-through holes (PTHs) link different layers of a PCB. A PCB can have one side, two sides, or many layers. This depends on the design needs. A solder mask covers the paths. It prevents electrical shorts and corrosion. Additionally, the silkscreen layer adds printed labels. These labels show part names and other details.

The design process turns circuit requirements into a tidy layout. This layout makes assembling parts easier. Understanding this foundation helps explain how bare PCBs become functional electronic devices during assembly.

What is PCB Assembly?

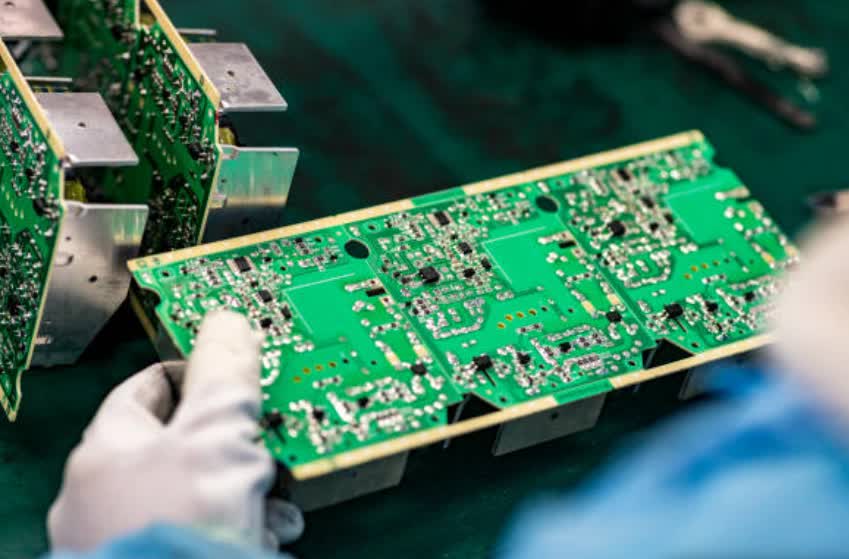

PCB assembly (PCBA) is the process of soldering electronic parts onto a printed circuit board. This creates a working electronic circuit. The process allows the PCB to perform specific tasks in a device. Most modern production uses automated machines. However, some tasks still need manual assembly.

Surface mount technology (SMT) has transformed assembly. It lets parts be placed directly on pads instead of through holes. Yet, through-hole technology (THT) is still used for designs needing solid physical connections. After assembly, careful testing ensures all parts are properly soldered. It also checks if they work correctly.

Before the PCBA Manufacturing

Several key steps happen before starting PCBA manufacturing:

· Prototyping: Creating prototypes checks if the design works. It also finds issues like part spacing problems.

· Design for Manufacturing (DFM): Using DFM rules simplifies assembly. It ensures enough space between parts.

· Bill of Materials (BOM): A detailed BOM lists all required parts. It includes their details.

· Solder Paste Stencils: Custom laser-cut stencils apply solder paste accurately for SMT parts.

· Equipment Programming: Machines need programmed instructions. These are based on the board design.

· Test Points: Adding test points in the design allows effective testing after assembly.

These steps prepare for smooth manufacturing. They also reduce potential issues.

PCBA Manufacturing Process

The PCBA process includes several methods. Each suits specific needs.

Surface Mount Technology (SMT) Assembly

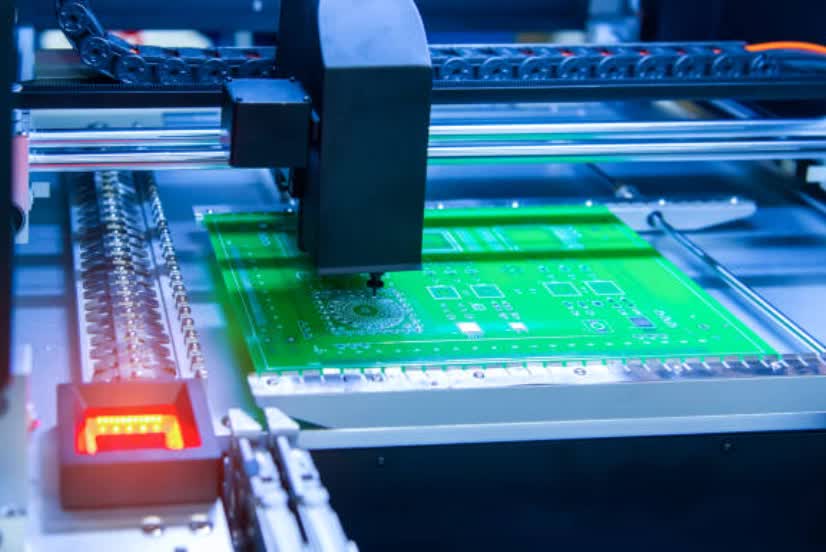

SMT places parts directly onto surface pads. It uses automated pick-and-place machines. The process includes:

· Solder Paste Application: A stencil applies solder paste to pads.

· Component Placement: Machines place parts precisely. They follow programmed instructions.

· Reflow Soldering: The board passes through a reflow oven. This solidifies solder joints.

· Inspection and Testing: Automated optical inspection checks correct placement. Electrical tests follow.

SMT is excellent for high-volume production. It is fast and accurate. However, it requires a large investment in equipment.

Through Hole Technology (THT) Assembly

THT involves inserting component ends through drilled holes in the PCB base. The process includes:

· Component Insertion: Workers manually place parts into specific holes.

· Wave Soldering: A wave of melted solder coats exposed ends and pads.

· Cleaning and Inspection: Flux residues are cleaned. Visual checks and tests follow.

THT is slower than SMT. However, it supports larger parts. It is cost-effective for low-volume production.

Hybrid Assembly

Hybrid assembly combines SMT and THT methods. It uses their strengths:

· SMT handles smaller surface-mount parts.

· THT manages larger or stronger parts like connectors.

This method balances flexibility and efficiency. Yet, it may increase complexity. This ensures no defects.

BGA Assembly

Ball Grid Array (BGA) technology uses solder balls for connections. These replace ends or pads. BGAs offer high-density connections for complex devices like CPUs. They need advanced precision equipment. This is due to alignment challenges.

Special tools, like high-resolution X-ray inspection, ensure BGA assemblies are defect-free. This applies even in dense designs.

Each method—SMT, THT, hybrid, or BGA—fits specific uses. These depend on factors like volume, complexity, and part types.

SMT vs. THT vs. Mixed PCB Assembly

SMT vs THT

Surface Mount Technology (SMT) and Through Hole Technology (THT) are two primary methods in PCB assembly. SMT places parts directly on the PCB surface. This allows more parts in a smaller space. It is highly automated. Pick-and-place machines ensure fast and precise placement.

In contrast, THT inserts part ends through drilled holes in the PCB. Soldering occurs on the opposite side. This method is known for its strength and dependability. It is ideal for parts needing strong physical connections.

SMT provides faster assembly. It suits high-volume production. However, it needs expensive equipment. THT is cost-effective for lower volumes. But it involves slower manual work.

Mixed vs SMT vs THT Assembly

Mixed technology assembly combines SMT and THT methods. It uses their strengths. It is helpful for PCBs needing both small surface-mounted parts and larger through-hole parts. Examples include connectors or transformers. Mixed assembly offers flexibility. However, it adds complexity to ensure defect-free results.

Compared to using only SMT or THT, mixed assembly needs careful balance. It balances automation and manual work. This method suits medium-to-high volume production. Yet, it may have higher defect rates if not managed well.

Manual vs. Automated PCB Assembly

Manual PCB Assembly

Manual PCB assembly relies on skilled workers. They place and solder parts by hand. This method is adaptable. It is great for prototyping or low-volume production. Designs often change in these cases. However, manual work is slow. It can also have errors. Still, it allows engineers to test and improve designs with low initial costs.

Automated PCB Assembly

Automated assembly uses advanced machines. Pick-and-place systems offer unmatched speed and precision. This method reduces errors. It is ideal for high-volume production. However, it requires a large initial investment. Programming equipment is costly. It also lacks flexibility for design changes.

Automated systems depend on preprogrammed instructions. Design changes need reprogramming. This takes time. Still, automation is the best choice for mass-producing PCBs efficiently.

Low Volume, Medium Volume, and High Volume PCB Assembly

Low Volume PCBA

Low-volume PCB assembly involves fewer than 1,000 boards per month. Manual methods are often used. They are low-cost and adaptable. Workers can carefully assemble each board. They also allow design changes or customizations.

The main drawback is limited output. Labor costs are higher. Still, it is a great choice for prototypes. It also suits special projects needing close attention to detail.

Middle Volume PCBA

For volumes between 1,000 and 10,000 boards per month, a mix of methods works well. Basic automation, like pick-and-place machines, handles repetitive tasks. Manual oversight is kept for custom parts.

This balanced method helps manufacturers scale production. It avoids the full cost of advanced automation. However, quality control becomes more important as volumes increase.

High Volume PCBA

High-volume PCB assembly exceeds 10,000 boards per month. It relies on fully automated lines. Advanced equipment ensures consistent quality. It works at high speeds. It also keeps labor costs low. High-volume facilities often run continuously. They meet global demand.

Despite its benefits, high-volume production needs strict inline testing. This catches defects early. The large upfront investment in automation also requires careful planning. This achieves cost savings.

Terminology Related to PCB and PCBA Manufacturing

· Annular Ring: The exposed copper area around a plated-through hole. It ensures dependable solder connections.

· DRC (Design Rule Checking): A process that checks for spacing or clearance issues in PCB layouts.

· Drill Hit: Spots where holes are drilled into the PCB base.

· Pad: Conductive areas where part ends are soldered.

· Pick and Place: Automated machines that place parts on PCBs with high precision.

· Reflow Soldering: A process that melts solder paste. It creates strong electrical joints.
