BGA components are everywhere in medical devices, automotive systems, and communication hardware. But BGA soldering is not standard SMT work. The hidden joints under the package make inspection difficult. Choosing the wrong PCBA manufacturer for BGA projects leads to field failures and missed deadlines. PCBA Store has been fabricating PCBs and assembling them for over 16 years. Here is what we have learned about evaluating a partner for BGA PCBA.

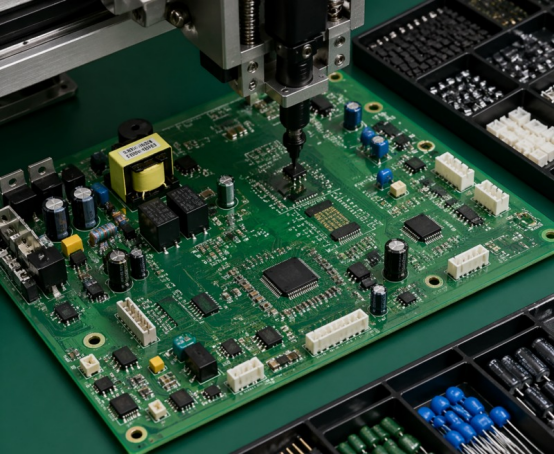

A standard pick-and-place machine with 50-micron accuracy will not handle fine-pitch BGAs reliably. You need placement accuracy of 25 microns or better for 0.4mm pitch devices. Reflow profiling for BGA assembly requires multi-zone ovens—typically eight or more zones—with closed-loop temperature control. Each BGA package has a specific thermal mass. A large 35mm BGA absorbs heat differently from a small 10mm part. Without zone-by-zone profiling, some joints reflow fully while others see only partial melting. That leads to head-in-pillow defects that pass electrical tests but fail after thermal cycling.
You cannot see BGA joints with a microscope. Optical inspection only checks the perimeter. The critical joints underneath remain invisible. A capable PCBA manufacturer for BGA projects must own an X-ray system—not outsource it. We use 2D X-ray for every BGA board. For high-reliability projects, we apply 3D computed tomography to measure void percentages. IPC Class 2 allows up to 25% void per joint. Class 3 lowers that to 15%. Ask any potential partner: Do you routinely X-ray all BGA assemblies? The answer tells you their quality culture.
Even with perfect processes, rework happens. We maintain a dedicated rework station with bottom-side preheaters and top-side hot gas nozzles sized to each BGA body. The process: preheat the board to 150°C, remove the BGA with a controlled temperature ramp, clean the pads with a vacuum solder wick, inspect pads for damage, apply fresh solder paste, place the new BGA, and reflow with a custom profile. Without this capability, a single BGA defect scraps the entire board. That is expensive when your BGA PCB board contains 50 other assembled components.

BGA-based boards rarely work on the first spin. You will iterate. That is where fast PCB prototyping becomes a business necessity. We offer rapid PCB prototyping with 24-hour express service for simple boards and 3-5 day turnaround for complex BGA designs. Why does speed matter for BGA specifically? Because a BGA PCB assembly often requires multiple engineering reviews—impedance testing, X-ray inspection, and possible cross-sectioning. Each iteration takes time. If your prototype cycle is four weeks, you lose months of development.
We have seen customers order quick-turn PCB prototype runs of just five boards. That low quantity lets them validate BGA placement and thermal performance before committing to 500 pieces. A manufacturer that only accepts large orders cannot support this iterative process. Look for one that publishes prototype lead times for BGA PCBA—not just standard two-layer boards.

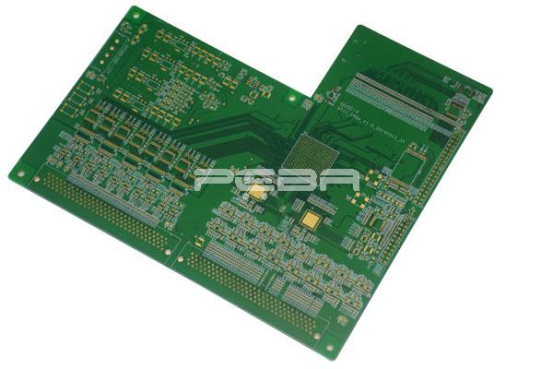

When one shop fabricates the BGA circuit board, and another does the PCB assembly BGA, problems hide between the two. The fabricator might use non-solder-mask-defined pads. The assembler expects solder-mask-defined pads for BGA balls. Result: inconsistent wetting and opens. We fabricate the PCB and assemble it under one roof. That means the same engineering team controls the pad finish, the solder mask registration, and the reflow profile. For BGA soldering, this integration directly impacts yield.
Consider via-in-pad design. Many high-density BGA layouts require plated vias directly under the BGA pad. Without proper filling and capping, those vias wick solder away from the BGA ball. We fill vias with non-conductive epoxy and cap them with copper before applying a surface finish. A separate fabricator would not know your assembly needs. One-stop BGA PCB assembly eliminates this communication gap.

For BGA voiding, we provide X-ray images with every shipment. You receive a report showing void percentages per BGA, ball-by-ball. Our after-sales protection: if the board fails due to our soldering, we refund the full PCBA cost or re-manufacture at no charge. Ask potential partners: What happens when a BGA fails after shipment? Do you cover shipping for returns? The answers separate serious manufacturers from brokers.
Send a small test board with two or three BGAs. Evaluate:
· Did they ask about your specific BGA alloy (SAC305, SAC105, or leaded)?
· Did they request stencil design guidelines for BGA aperture size?
· Did they provide X-ray images without being asked?
· Was the turnaround time accurate to their quote for rapid PCB prototyping?
If the answer to most of these is yes, you found a capable partner.
We follow IPC-A-610 guidelines. For Class 2 assemblies, we accept up to 25% void per BGA ball. For Class 3, we target below 15%. We provide X-ray images with void measurements for every BGA on every board. If voids exceed your standard, we rework the board or refund the cost.
For rapid PCB prototyping with BGA components, our standard lead time is 3 to 5 business days from receipt of verified Gerber files and BOM. That includes PCB fabrication if you order both from us. For quick turn PCB prototype with existing bare boards, we can assemble within 24 to 48 hours for small quantities under 20 boards.
Yes. We reball BGAs when the original balls are damaged or when converting from leaded to lead-free alloy. We also replace defective BGAs on boards that you already assembled elsewhere. The process includes pre-baking, removal, pad cleaning, reballing or placing a new component, and X-ray verification.
Upload your Gerber files, BOM, pick-and-place file, and assembly drawings through our online quote system. For BGA-specific pricing, we need the BGA package type, quantity per board, and total board quantity. We typically respond with a firm quote within 4 business hours.
In the rare case that we ship defective BGA circuit boards, you have three options. First, a full refund to your original payment method. Second, credit to your PCBA Store account for future orders. Third, we re-manufacture the boards at our cost and ship them via expedited delivery. We do not ask you to prove the defect with lab reports.
Stop guessing whether your next BGA PCBA partner can deliver. Get an instant online quote for your BGA project. Prefer to speak with an engineer? Send your Gerber files and BOM to svc@PCBAstore.com. We will review your BGA layout and return a firm quote within one business day. For existing designs ready to move fast, our rapid PCB prototyping service delivers assembled BGA boards in as little as 24 hours. Start your quote now.
