Medical PCB Assembly Services: Capabilities Every Supplier Must Offer

Delivering Precision and Reliability in Medical PCB Assembly

At PCBA Store, we understand that medical PCB assembly is far more than a standard manufacturing process—it is the foundation of critical electronic systems used in patient monitoring, diagnostic imaging, wearable healthcare devices, and life-support equipment. Since 2006, PCBA Store has provided PCB fabrication and PCB assembly services from our China-based manufacturing facilities, supporting global OEM customers with reliable, high-precision electronic manufacturing solutions. Backed by years of EMS experience, advanced SMT production lines, AOI and X-ray inspection systems, and strict quality management processes, we help medical electronics projects achieve “right first time” manufacturing performance while meeting demanding international compliance and reliability standards. From rapid prototyping to full-scale turnkey production, our engineering-driven approach ensures every assembly delivers the consistency, traceability, and long-term stability required in modern healthcare applications.

What Makes Medical PCB Assembly Services Distinct?

Medical PCB assembly services face tougher demands than standard consumer electronics work. This stems from needs around safety, tracking, and rule adherence:

· Regulatory and Standards Compliance: Panels must be made under quality setups that match ISO 13485 and IPC-A-610 Class 3 guidelines. Documented oversight must withstand reviews and filing requirements.

· Zero-Defect Focus: Medical PCBs need almost no room for errors. A lone solder connection flaw could weaken a tool used for life-saving or medical checks.

· Traceability and Documentation: Part tracking, test logs, and batch papers must go with each group. They aid FDA, CE/MDR, and global filings.

In real terms, this means managed production spaces, strict checkpoints like automated optical inspection (AOI), and quality file creation. These range from initial item reviews to ionic contamination checks.

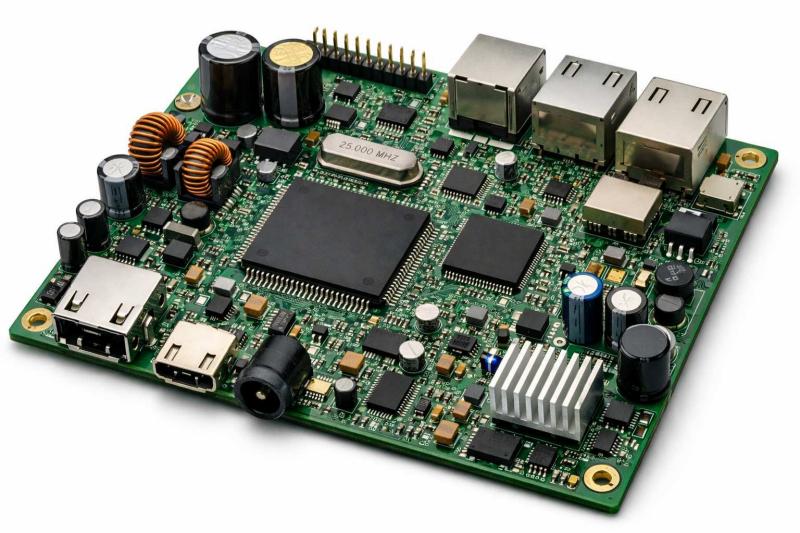

How the Medical PCB Assembly Process Works

Our medical PCB assembly process consists of closely linked phases. These aim to cut risks and yield review-ready assemblies. Though every task brings its own challenges, the main sequence covers:

Engineering Review and DFM Feedback

Assembly begins only after we perform design-for-manufacturability (DFM) checks. We spot potential problems in heat patterns, microvia numbers, and part reachability. Early input shortens repeat steps in the prototype and trial output stages. As a result, it quickens market entry.

PCB Fabrication and Material Verification

We build boards to fit design layer plans with managed resistance as needed. We pick materials like high-Tg polyimide or low-loss sheets based on cleaning and speed performance factors.

We use automatic placement tools and AOI/X-ray methods all along. They confirm direction, positive/negative setup, and build accuracy. We carry out functional tests and extra in-circuit checks. These confirm signal strength and circuit operation before end packing.

Integrated Medical PCB Assembly Turnkey Service

Many OEMs seek a medical PCB assembly turnkey service that avoids splitting between plain board providers, assembly sites, and test centers. A turnkey provider manages:

· PCB fabrication and bare board inspection

· Component sourcing and BOM management

· SMT and through-hole assembly

· Post-assembly testing and inspection

· Final packaging and logistics

This one-stop approach eases talks, shortens wait times, and focuses responsibility. With a turnkey supplier, you deal with just one contact point over the full process. This speeds up issue fixes and boosts supply steadiness.

Ensuring High-Reliability Medical PCB Assembly

Strong dependability forms a basic need for medical circuit board assemblies, mainly for tools where breakdowns cannot happen. Main parts we apply to each task include:

· Certified production standards: Matching ISO 13485 and IPC Class 3 guarantees steady solder work and item approval.

· Traceable component sourcing: Parts from approved paths with batch tracking have lower chances of fake or faulty items in assemblies.

· Environmental and functional screening: Strain tests like heat shifts and dampness resistance help uncover hidden flaws.

· Documentation readiness: Full records come in every shipment pack to aid rule filings and quality reviews.

High-reliability medical PCB assembly skills also cover cleanroom-suited soldering, precise fitting of small-pitch SMT and BGA packs, and managed resistance paths for fast medical electronics.

Rapid Innovation with Quick Turn Medical PCB Assembly and Prototyping

OEM growth stages often call for swift repeats and checks—particularly in early design proof and clinical prototype trials. Our quick turn medical PCB assembly options aim to shorten stage lengths without cutting quality. Common service tiers cover:

· Express Prototyping: Initial item assembly in 3–5 work days for simple HDI panels.

· Accelerated Small Batch Builds: Trial output series with complete paper outputs.

· Parallel DFM/Engineering Review: Timed with production to hasten yes/no choices.

This fast feature aids from PCB assembly prototype tasks to trial groups that aid clinical reviews or early rule filings.

Tailored Custom Medical PCB Assembly Solutions

Not every medical device plan follows a set pattern. Certain uses—such as built-in signal modules or body-worn check electronics—require special fixes. Our custom medical PCB assembly choices handle:

· Variable layer counts and rigid-flex setups

· Controlled impedance and high-frequency routing

· Biocompatible coatings and conformal protection

· Application-specific functional testing

Each special project starts with a full needs check. Then comes engineering proof and repeat prototype stages. This ensures the end-built board fits your power specs. It also meets real-use toughness standards.

Medical PCB Assembly Quotes: Transparency and Predictability

Expense factors often lead buying talks. We make sure clear medical PCB assembly quotes through:

· Plain splits of materials, assembly, and test expenses

· Stated wait times linked to design detail and paper range

· Flexible minimum order choices from prototype to output

· Extra packing and shipping cost guesses

Providing straightforward, engineering-supported price lists lets design and buying teams weigh options, set program funds, and match hopes before output pledges.

Choosing the Right Partner in Medical PCB Assembly Services

Picking a provider for medical electronics marks a key choice. Vital points include:

· Quality system approvals and recorded procedure oversight

· A range of strong dependability assembly skills

· Turnkey service blending and engineering aid

· Established history of aiding medical OEMs

At our organization, we back clients over the device life—from initial prototype chats to full output supply pacts. This support rests on field know-how and firm quality setup.

Frequently Asked Questions

How do I get medical PCB assembly quotes? What information is needed for accurate pricing?

Upload your Gerber files and BOM. Specify assembly needs (volume, test wants). We give clear pricing with listed cost parts.

What certifications should a medical PCB assembler hold?

ISO 13485 for quality management, IPC-A-610 Class 3 for assembly acceptability, and traceability documentation aligned with FDA 21 CFR Part 820 are standard expectations.

Can you support quick-turn medical PCB assembly for prototype builds?

Yes. We offer accelerated prototyping options with fast build cycles and synchronized engineering support for design validation.

Do you provide turnkey services including component sourcing?

We provide a full medical PCB assembly turnkey service, covering board fabrication, part procurement, assembly, testing, and delivery.

How do you ensure high-reliability medical PCB assembly?

By combining certified processes, authorized component sourcing, statutory documentation, and comprehensive testing, we ensure boards meet medical-grade reliability targets.

Ready to Start Your Medical PCB Assembly Project with PCBA Store?

Whether you are developing a new medical prototype, preparing for clinical validation, or scaling toward mass production, PCBA Store provides reliable one-stop PCB manufacturing and assembly services tailored for high-reliability medical electronics. Our engineering and production teams support customers worldwide with fast response times, transparent quotations, strict quality control, and turnkey supply chain management.
