Rigid-Flex PCB Applications in Compact Electronics

Compact electronics present a tough challenge. Products require less volume and fewer connectors. They also need steady signal paths and solid mechanical strength to withstand daily use. A rigid-flex PCB design provides a strong solution. It works well when standard flat boards and cable harnesses fail to meet these demands neatly.

Rigid and Flexible Areas Serve Different Jobs

A rigid-flex setup merges stiff parts for mounting components with flexible parts. These flexible sections bend or fold between the stiff areas. The rigid zones support ICs, connectors, sensors, batteries, or shielding elements. Meanwhile, the flexible parts replace standard wires. They also take the place of board-to-board connectors within a tight casing.

This layout fits devices where space, weight, vibration, and assembly consistency are crucial. It is not always cheaper than a standard rigid PCB. However, it can lower overall system complexity. This happens when you evaluate cables, connectors, manual assembly, and potential failure spots together.

Applications Fit Space and Movement Problems

A custom rigid flex PCB is highly valuable when physical design dictates the electrical layout. Medical devices, drone controllers, robot joints, and industrial sensors often require this approach. Handheld tools and AI edge devices also need circuits that wrap around batteries, lenses, screens, antennas, or outer shells.

Reliability Comes from Removing Interfaces

Many rigid-flex applications gain reliability by reducing connector count. Every connector adds height, weight, assembly labor, insertion risk, and potential vibration failure, while an integrated flex section can make the interconnect part of the fabricated board.

The benefit is strongest when the product has repeated movement, tight packaging, or field conditions that punish loose harnesses. A good design still needs controlled bend radius, strain relief, copper balancing, and correct stiffener placement around mounted components.

Connector reduction can also simplify final assembly because operators handle one integrated circuit structure instead of several separate boards and cables. That improvement is valuable when product volume rises and small manual routing errors become a repeatability risk.

Static bends

Static bends are folded during assembly and then remain mostly fixed. They need enough radius to protect copper and coverlay, but the fatigue demand is lower than a circuit that bends repeatedly during operation.

Static applications still need clear fabrication notes because the flexible section may pass near screws, ribs, batteries, or shielding parts. The drawing should show where the fold occurs and which side of the circuit faces inward.

Dynamic flexing

Dynamic flexing requires stricter routing because copper work-hardening and repeated mechanical stress can eventually break a trace. Designers usually avoid vias in the bend area and keep conductors perpendicular to the bend line where possible.

Fabrication Limits Decide What Is Practical

Rigid-flex design must respect fabrication limits for layer count, copper thickness, minimum line width, hole size, impedance control, coverlay, and stiffener material. PCBA Store lists rigid-flex capability covering flexible sections, multilayer structures, polyimide, FR-4, halogen-free and lead-free materials, impedance control, HDI options, and several structural styles.

A successful rigid flex fabrication plan should connect the mechanical fold, component keepout, stack-up, panelization, and assembly sequence before release. Late changes are expensive because electrical routing and mechanical packaging are strongly connected.

· Keep components, vias, and solder joints away from active bend zones.

· Define bend radius, bend direction, and stiffener areas in the fabrication notes.

· Confirm impedance needs before locking the flexible stack-up.

· Review panel handling so the assembly process does not damage exposed flex areas.

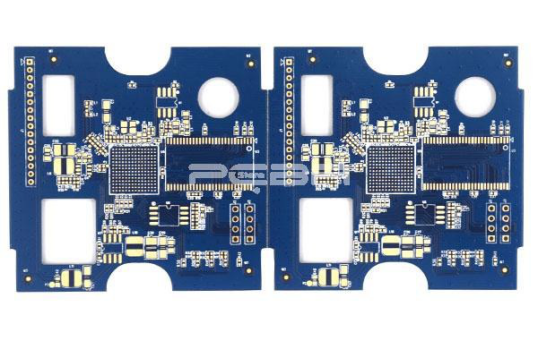

Assembly Planning Protects the Flex Section

Rigid-flex circuit boards need careful assembly planning because flexible areas can deform during printing, placement, reflow, depaneling, and final product build. Fixtures, carrier panels, handling rules, and inspection access should be discussed before the first prototype.

Assembly drawings should identify stiffeners, keepout zones, fold direction, adhesive areas, and any locations that must not be clamped. Those details make quotation more accurate and reduce the chance that an otherwise good board is damaged during handling.

Testing should reflect the final folded state when the product depends on tight packaging. Continuity, functional checks, and mechanical review after bending can reveal stress issues that a flat-board electrical test may miss.

Prototype feedback should be captured in both electrical and mechanical terms. If a fold interferes with a connector, shield, heat spreader, or enclosure wall, the fix may require layout, stiffener, or housing changes rather than a simple fabrication adjustment.

PCBA Store supports rigid, flex, and rigid-flex PCB assembly, including SMT, through-hole, mixed technology, turnkey or kitted parts, and inspection options. That combination is useful when buyers need one team to align board fabrication with assembly constraints.

Summary for Rigid-Flex Selection

Rigid-flex PCB design is the best choice for specific needs. It works well when product casing, movement, fewer connectors, or weight reduction makes a unified board structure worthwhile. The next step is not just checking if the board can be made. You must also ensure the entire physical, electrical, and assembly process is reliable.

For small industrial, medical, robotic, drone, and AI devices, PCBA Store can assist. They can evaluate a rigid-flex circuit board design against production and assembly rules. This check happens before the design enters the final manufacturing stage.

FAQ

What is a rigid-flex PCB?

A rigid-flex PCB merges stiff board parts and flexible circuit parts into one single unit. This allows the circuit to fold or link across different physical levels.

Where are rigid-flex PCBs commonly used?

They are frequently found in small medical devices, drones, and robots. They also appear in wearable tools, industrial sensors, communication units, and compact AI hardware.

Is rigid-flex always better than cables?

Rigid-flex is superior when it cuts down size, weight, assembly risks, or connector faults. However, standard cables might still be cheaper for basic or low-density items.

What information is needed for quotation?

A helpful quote usually requires Gerber files, stack-up details, and material choices. It also needs copper specs, bend zones, stiffener data, quantity, and assembly demands. A BOM and centroid data are necessary when components are involved.

What is the biggest design risk?

The main risk is treating the flexible section exactly like a standard rigid board. Bending zones require specific routing, materials, coverlays, stiffeners, and handling choices.
